1300*1300mm diameter dredging pipe floats for Dn500 HDPE pipe
Brief Introduction of Dredge Floats:
The hull of MDPE FLOATER is made from medium density polyethylene material with excellent flexibility, filled with high strength polyurethane foam inside. With reasonable structure and good performance, the MDPE floater becomes the ideal substitution of the traditional steel floater for the floating dredging pipes.
Main Features of Dredge floats :
1. Good flexibility, excellent impact resistance, particularly suitable for constructions in open sea;
2. Easy to install and handle, lower costs for moving;
3. Higher corrosive resistance, longer working life, 3 times longer than steel floaters;
4. Lower costs, the cost performance is better than steel floaters.
Applications:
1.Used in dredging sand pipeline;
2.It can be used in dredger, dredging pipe etc. in the sea, lake or river;
3.Particular used in laying the pipes on the water used in dredger project.
New Design
1. New PE floaters are added the positioning grooves in the surface of floater’s body to improve its ability to fight the wind and wave
2. New PE floaters are also added the stainless steel pipes in the screw holes to reduce the friction between the floater and the screw. The improvement will greatly improve the service life of PE floaters.
Specification table of Dredge Floats
| PIPE OD(mm) | FLOATER ID(mm) | FLOATER OD(mm) | FLOATER LENGTH(mm) | FLOATER THICKNESS(mm) | NET BUOYANCE(kg) | FLOATER WEIGHT(kg) |
| 50 | 60 | 300 | 500 | 7 | 80 | 10 |
| 159 | 220 | 500 | 800 | 7 | 200 | 16 |
| 205 | 220 | 500 | 800 | 7 | 200 | 16 |
| 219 | 220 | 500 | 800 | 7 | 200 | 16 |
| 273 | 300 | 700 | 1200 | 7 | 420 | 43 |
| 300 | 300 | 700 | 1200 | 7 | 420 | 43 |
| 325 | 375 | 1100 | 1100 | 7 | 920 | 72 |
| 350 | 375 | 1100 | 1100 | 7 | 920 | 72 |
| 400 | 414 | 1100 | 1200 | 8 | 1020 | 76 |
| 426 | 430 | 1200 | 1200 | 8 | 1200 | 93 |
| 450 | 480 | 1300 | 1300 | 8 | 1500 | 116 |
| 500 | 580 | 1400 | 1500 | 9 | 2219 | 170 |
| 536 | 580 | 1400 | 1500 | 9 | 2219 | 170 |
| 600 | 630 | 1400 | 1700 | 11 | 2400 | 182 |
| 630 | 630 | 1400 | 1700 | 11 | 2400 | 182 |
| 650 | 680 | 1480 | 1800 | 11.5 | 2930 | 210 |
| 700 | 730 | 1600 | 1900 | 12 | 3593 | 230 |
| 750 | 780 | 1600 | 2000 | 13 | 3800 | 245 |
| 800 | 830 | 1800 | 2000 | 14 | 4800 | 310 |
| 850 | 880 | 1800 | 2200 | 15 | 5140 | 380 |
| 900 | 940 | 2200 | 2500 | 16 | 8180 | 420 |
Structure of Dredge Float

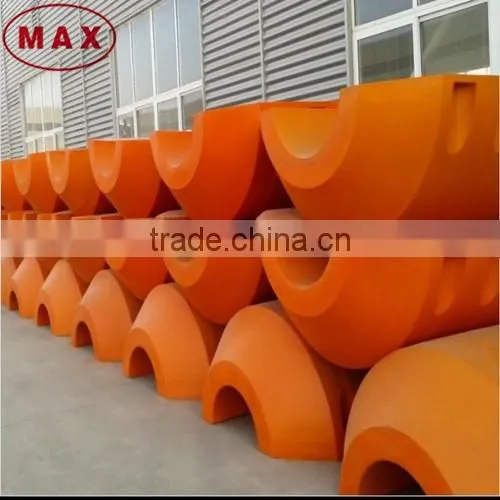

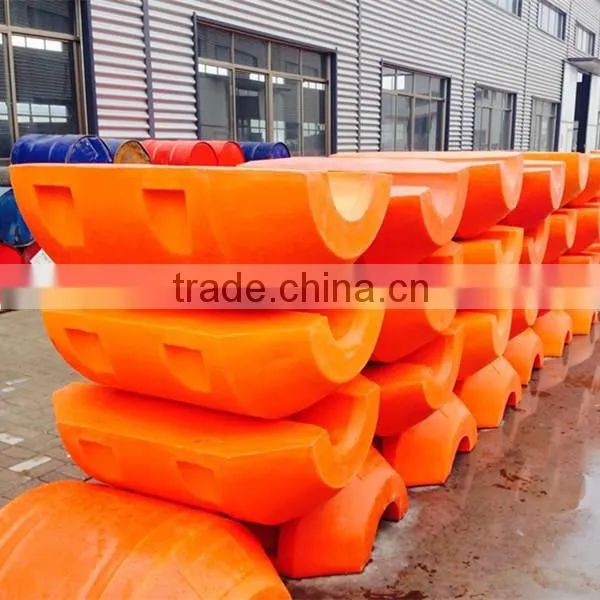

Finished Products

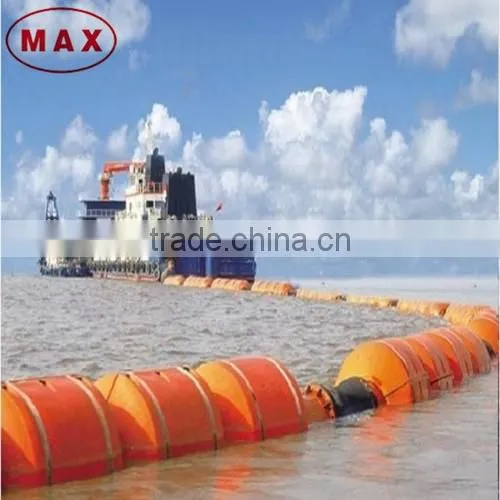

Pipe Floats with Dredge Pipeline for dredging operation
Loading & Transport
