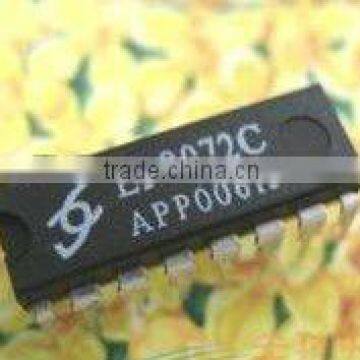

Help CenterPIR Control IR IC(LP8072) for Passive Infrared Motion Sensor Application
Related Products
-
CS9803 Infrared Induction Control ICUS$ 0.13 - 0.37MOQ: 1000 Pieces -
PIR Control IR IC(CS9803) for PIR Sensor ApplicationUS$ 0.13 - 0.37MOQ: 1000 Pieces
-
BISS0001 Micro Power PIR Motion Detector ICNegotiableMOQ: 1000 Pieces
-
BISS0001 Micro Power PIR Detector IC From Senba FactoryNegotiableMOQ: 1000 Pieces
-
BISS0001 Micro Power PIR Motion ICNegotiableMOQ: 1000 Pieces
Specifications
FeaturesOperating voltage: 4.5V-5.5V (DC)
Operating current<1mA
CDS input
Pulse output for TRIAC drive or level
PIR Control Infrared Ray Integrated Circuit
General Description
The CS9803 is a passive infra-red controller, using analog mixing digital design technique and manufactures by
CMOS process which can either driver TRIAC or RELAY depending on user’s choice.
With special noise immunity technique, CS9803 is the most stable passive infrared controller you can find on the
market. More than this, there are few components needed in its application circuit which can reduce material cost and
increase competitive.
Features
Operating voltage: 4.5V-5.5V (DC)
Operating current≤1mA
CDS input
Pulse output for TRIAC drive or level output for relay drive
Built-in 2-stage operational amplifier
Adjustable output on time duration
On –chip regulator for PIR sensor
Zero-crossing triggering
Application:
Home security system
Auto light system for garden, garage, hallway, staircase, porch, bathroom, etc.
Auto switch for ventilation fan
Auto notice system for office, storage, etc.
Package: DIP16
Absolute Maximum Ratings
Supply Voltage:-0.3-6.0V
Operating Temperature:-25-+70°C
Input Voltage:-0.5-(VDD+0.5)V
Storage Temperature:-55-+150°C
Power Dissipation:500mW
