Specifications
Analog Optoisolator1.Original manufacturer
2.MOQ 1000PCS
3.Free samples are available
4.Lead time:3 days

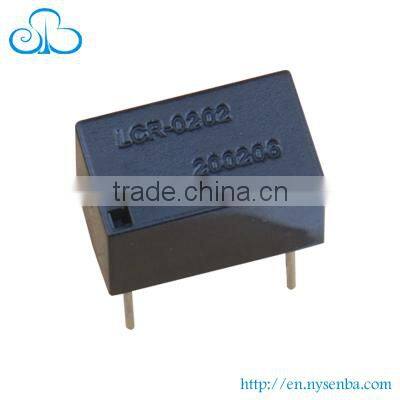

Linear Analog Optoisolator/Coupling LCR0202
Analog Linear Optical Coupling is photoelectric component by inputting the different current to control the changes of resistance. It makes use of CdS and LED semi-conductor with rigorous selection, aging and test. The product is widely used by current input control and pure resistance with non-polarity output.Our company own the patent of manufacturing and the patent number is ZL02225334.3.
Characteristics
Pure resistor and non-polarity output .
Wide range of analog linear resistance, the low “on”resistance, high “off”resistance.
Simple circuit configuration suitable for DC and AC use.
Input to output isolation, and low distortion coupling.
Encapsulation with PPO high-temperature resistant material.
Typical Application
Acoustic protect and control.
Volume control and electric isolation coupling.
Light adjust and motor speed control.
Communication transmission and automatic control.
Specification
| Model | LCR-0202 |
| Encapsulation | DIP-4 (cuboid small package) |
| Input Current | 0-20mA, Max.40mA |
| Input Voltage | 1.6-2.5VDC |
| Output Light Resistance | 50Ω-1KΩ @20mA-0.01mA |
| Output Dark Resistance | 1Ω-10MΩ @10 seconds off later |
| Response time | <2.5ms |
| Insulating Voltage | >2500VRMS |
| Working Frequency | <300KHz |
| Out-cell Resist Voltage | <50V |
| Dynamic Range | <100dB |
| DC Coupling Capacitance | <5pF |
| Max Power | 100mw |
| Operating Temp. | -30--70°C |
| Storage Temp. | -40--80°C |
Dimensions
| Cuboid Long | 12.5mm |
| Cuboid Wide | 7.5mm |
| Cuboid High | 8mm |
| Lead Length | 9mm |
| Lead Diameter | 0.45mm |
| Pin Gap | 9.0mm 4.5mm |
| Input Polarity Sign | LED Cathode-Lead |

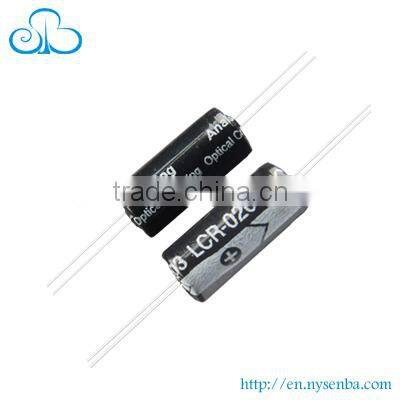

| LCR0202 | LCR0203 |
|
|
