Specifications
hdpe pipe fittingMaterial:pe100
Standard:GB/T13663
Certification:ISO9001:2008,ISO14001:2004,CE
Package:plastic woven bag

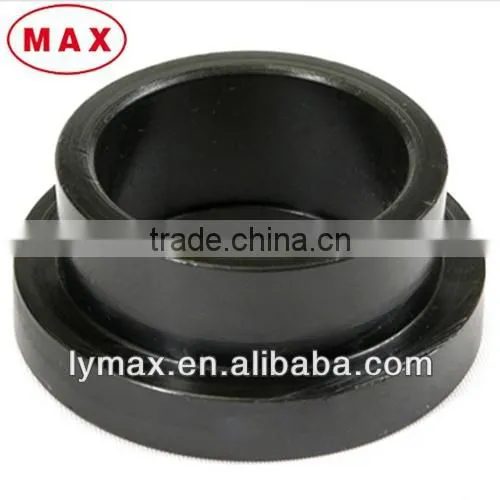

Hot-sale Water Supply PE Pipe HDPE Pipe Fitting
PE Pipe Fitting HDPE Pipe Fitting For Water Features:
1.Non-toxic, health: PE pipe material non-toxic, tasteless, through the strict health monitoring ,it belongs to green building materials, never scaling, which can effectively improve the water quality.
2.Corrosion resistance: PE belongs to inert materials, can resistance to various chemical media.
3.Noleakage: PE pipe is connected by electric melting, its interface strength higher than tube itself .
4.High toughness: fracture extension rate of PE pipe, commonly more than 500%.
5. (RCP) ability:Excellent resistance to quickly crack propagation.
6.flexible and resistance to scratches ability.
7.Good wear resistance, low wall friction coefficient, small flow resistance, excellent conveying ability.
nvenient for construction.Can use a variety of trenchless ways.
9.Low system cost, less maintenance costs, can dramatically reduce the cost for the project.
10.Long service life: dark bury PE pipe normal uses more than 50 years.
PE Pipe Fitting HDPE Pipe Fitting For Water Application:
1.Urban tap water pipe network system Large diameter PE pipe, health non-toxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient
2.Replaceable cement tubes, iron pipe and steel tube Used for old nets renovation project, don’t need large area excavation, low cost, can be widely used in old town of pipe network reconstruction.
3.Industrial materials duct Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.
4.Landscaping water supply network Landscaping need lots of water pipe, PE pipe toughness and low cost, make it become the best choice. hdpe pipe and fittings
5.Sewage discharge pipes PE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe,low costs and maintenance costs . hdpe pipe
6.Ore, mud transfers PE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud. polyethylene tube
7. Agricultural irrigation pipe PE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation. hdpe pipe and fitting
Application of HDPE Water Pipe Flange Stub:
HDPE Water Pipe Specification:
| HDPE100 PIPE | |||||
| Standard:GB/T13663-2000 | Thickness: mm | ||||
| PN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa |
| SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| DN | Thicnkness | Thicnkness | Thicnkness | Thicnkness | Thicnkness |
| 16 | 2.0 | ||||
| 20 | 2.0 | 2.3 | |||
| 25 | 2.3 | 3.0 | |||
| 32 | 2.3 | 2.4 | 3.0 | ||
| 40 | 2.3 | 2.3 | 3.0 | 3.7 | |
| 50 | 2.3 | 2.9 | 3.7 | 4.6 | |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | - |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | - |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
