Specifications
HDPE Pipe Fittings priceMaterial:pe100Standard:GB/T13663
Package:plastic woven bag

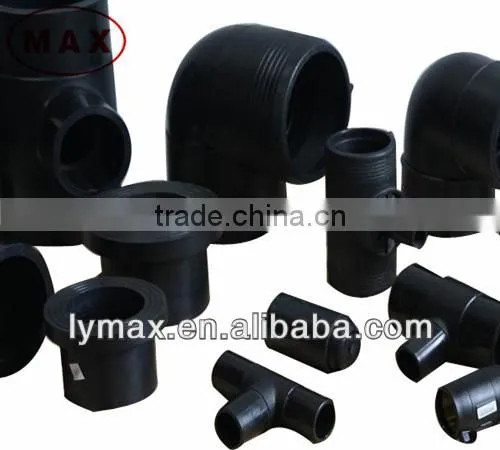

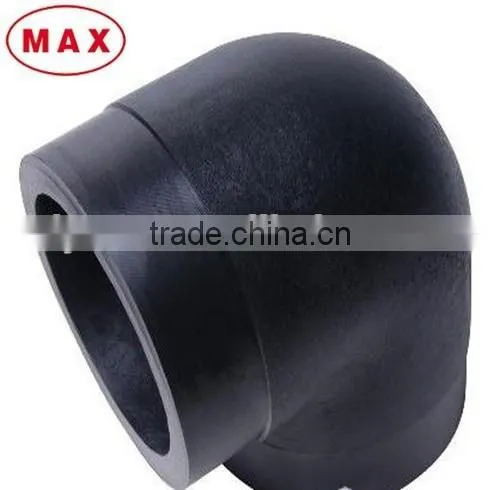

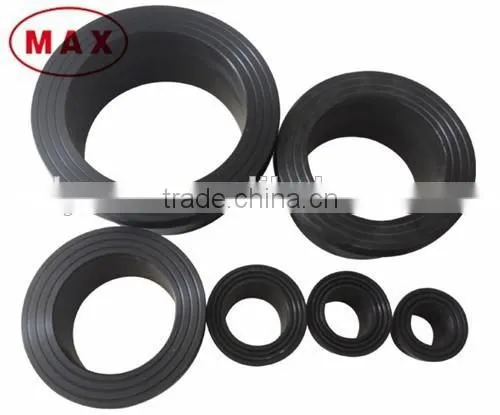

Poly Pipe Fittings HDPE Polyethylene Pipe Fitting Dimensions
What is HIgh-density polyethylene pipe(HDPE pipe)
HDPE pipe (High-density polyethylene pipe) is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.
Advantages of HDPE pipe :
1.High density polyethylene(HDPE) pipes
2.Light weight
3.Does not corrode
4.Resistant to chemical fertilizers and herbicides
5.Non toxic and odorless
6.Resistant to harsh climate
7.Up to 50 years' durability
8.Resistant to deformation
9.Smooth interior structure, low friction losses
10.Low labor coat for handling and installing
11.Reliable performance and easy maintenance
Widely Applications of hdpe pipe :
1.City water pipe network system.
2.Urban and rural drinking water pipeline .
3.Chemical industry, chemical fiber, food, forestry, printing and dyeing, pharmaceutical. light industry, paper-making, metallurgy Industrial pipeline.
4.Agricultural irrigation pipe.
Specification Table of hdpe pipe
| HDPE100 PIPE | |||||
| Standard:GB/T13663-2000 | Thickness: mm | ||||
| PN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa |
| SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| DN | Thicnkness | Thicnkness | Thicnkness | Thicnkness | Thicnkness |
| 16 | 2.0 | ||||
| 20 | 2.0 | 2.3 | |||
| 25 | 2.3 | 3.0 | |||
| 32 | 2.3 | 2.4 | 3.0 | ||
| 40 | 2.3 | 2.3 | 3.0 | 3.7 | |
| 50 | 2.3 | 2.9 | 3.7 | 4.6 | |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | - |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | - |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
Finished Products
Connection Way
Hot welded HDPE pipe for water supply
Factory production line
Loading & Delivering
Foreign Customers
Main Products
Any query please feel free to contact us
