Specifications
10 inch hdpe pipeMaterial: PE80, PE100
PN Grade: 0.6Mpa-1.6Mpa
Connection: flanged joint, butt fusion,socket

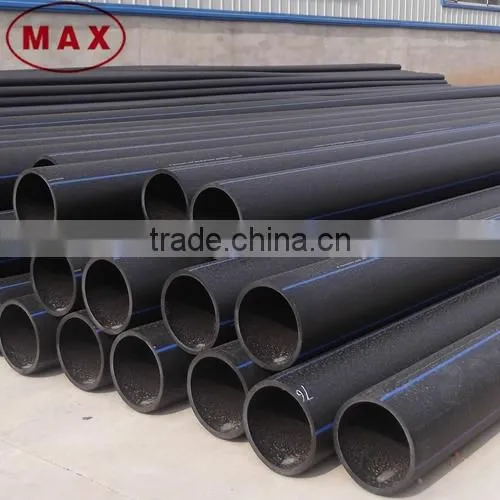

SDR17 flexible pe100 pipe, 10 inch HDPE pipe for water/gas supply
What is HIgh-density polyethylene pipe(HDPE pipe)
HDPE pipe (High-density polyethylene pipe) is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.
Advantages of flexible PE100 pipe:
1.High density polyethylene(HDPE) pipes
2.Light weight
3.Does not corrode
4.Resistant to chemical fertilizers and herbicides
5.Non toxic and odorless
6.Resistant to harsh climate
7.Up to 50 years' durability
8.Resistant to deformation
9.Smooth interior structure, low friction losses
10.Low labor coat for handling and installing
11.Reliable performance and easy maintenance
Widely Applications:
1.City water pipe network system.
2.Urban and rural drinking water pipeline .
3.Chemical industry, chemical fiber, food, forestry, printing and dyeing, pharmaceutical. light industry, paper-making, metallurgy Industrial pipeline.
4.Agricultural irrigation pipe.
Specification Table of HDPE Pipe
| HDPE100 PIPE | |||||
| Standard:GB/T13663-2000 | Thickness: mm | ||||
| PN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa |
| SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| DN | Thicnkness | Thicnkness | Thicnkness | Thicnkness | Thicnkness |
| 16 | 2.0 | ||||
| 20 | 2.0 | 2.3 | |||
| 25 | 2.3 | 3.0 | |||
| 32 | 2.3 | 2.4 | 3.0 | ||
| 40 | 2.3 | 2.3 | 3.0 | 3.7 | |
| 50 | 2.3 | 2.9 | 3.7 | 4.6 | |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | - |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | - |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
