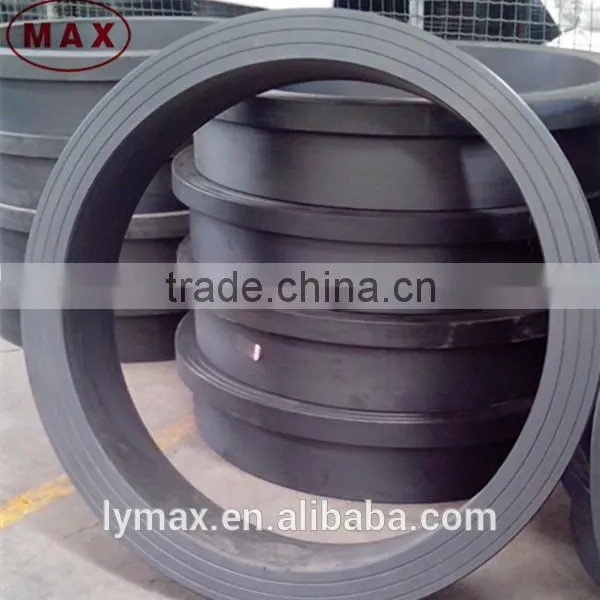

Polyethylene HDPE pipe fittings for underground water piping to hydro power supply

Specifications

hdpe pipe fittings
Material: PE80, PE100
PN Grade: 0.6Mpa-1.6Mpa
Connection: flanged joint, butt fusion,socket

Polyethylene HDPE pipe fittings for underground water piping to hydro power supply





What is HIgh-density polyethylene pipe(HDPE pipe)

HDPE pipe (High-density polyethylene pipe) is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.



Advantages of HDPE irrigation pipe  :

1.High density polyethylene(HDPE) pipes
2.Light weight
3.Does not corrode
4.Resistant to chemical fertilizers and herbicides
5.Non toxic and odorless
6.Resistant to harsh climate
7.Up to 50 years' durability
8.Resistant to deformation
9.Smooth interior structure, low friction losses
10.Low labor coat for handling and installing
11.Reliable performance and easy maintenance





Widely Applications of hdpe irrigation pipe :

1.City water pipe network system.
2.Urban and rural drinking water pipeline .
3.Chemical industry, chemical fiber, food, forestry, printing and dyeing, pharmaceutical. light industry, paper-making, metallurgy Industrial pipeline.
4.Agricultural irrigation pipe.





Specification Table of hdpe irrigation pipe



HDPE100 PIPE
Standard:GB/T13663-2000				Thickness: mm
PN	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa
SDR	SDR26	SDR21	SDR17	SDR13.6	SDR11
DN	Thicnkness	Thicnkness	Thicnkness	Thicnkness	Thicnkness
16					2.0
20				2.0	2.3
25				2.3	3.0
32			2.3	2.4	3.0
40		2.3	2.3	3.0	3.7
50		2.3	2.9	3.7	4.6
63	2.3	2.5	3.6	4.7	5.8
75	2.9	3.6	4.5	5.6	6.8
90	3.5	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.3
710	27.2	33.9	42.1	52.2	-
800	30.6	38.1	47.4	58.8	-
900	34.4	42.9	53.3
1000	38.2	47.7	59.3
1200	45.9	57.2	70.6
1400	53.9	66.7	82.4
