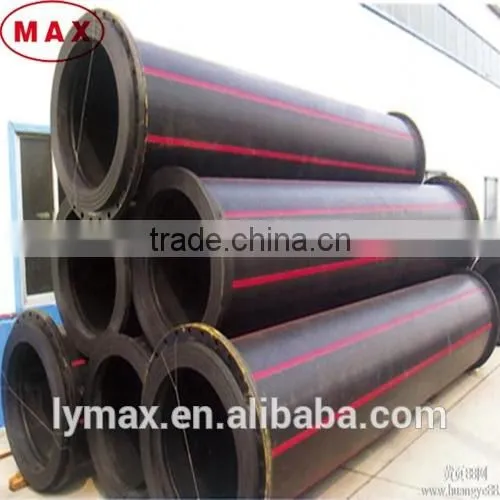

Slurry Pipe Wear Resistance HDPE Mine Pipe for Mining Tails
US$ 2 - 200
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
MAX
Model Number:
HDPE PIPE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Coal HDPE Mine/Water Pipe Manufacturer, PE Pipe for Mining TailsUS$ 2 - 200MOQ: 50 Meters -
Polyethylene Pipe, HDPE Mine Tailings Pipe FactoryUS$ 2 - 200MOQ: 50 Meters
-
ISO4427 PE100 HDPE Black Pipe With Red Stripe for Mining IndustryUS$ 3 - 150MOQ: 100 Meters
-
Mine Used pe PipeUS$ 1 - 200MOQ: 100 Miles
-
Antistatic HDPE Pipe for Mining/CoalUS$ 1 - 200MOQ: 50 Meters
Place of Origin
Henan, China
Brand Name
MAX
Model Number
HDPE PIPE
Material
PE
Specification
20mm-1400mm
Length
6m, 12m or as required
Thickness
2mm-82mm
Standard
ISO9001 CE certificate
Specifications
hdpe mine pipeMaterial: PE80, PE100
PN Grade: 0.6-1.6Mpa
advantage:wear resistance
Slurry Pipe Wear Resistance HDPE Mine Pipe for Mining Tails
Characteristics of pe mining pipe:
1.Long Lifespan
It can be used for more than 50 years under normal condition.
2.Good Sanitary Performance
It isn’t added the heavy metal salt stabilizer, and its material is non-toxic, does not scale. it is not easy to form dirt, and avoids secondary pollution of drinking water.
3.Excellent Wear Resistance
Its wear resistance is 4 times higher than steel pipe under normal conditions
4.Good Corrosion Resistance
It can resist variety of chemical mediator except few oxidants.
5.Little Coefficient of Friction and Low Flow Resistance
Inside sleek, low friction coefficient, medium circulation ability raise, excellent wear resistance.
6.Fine Flexibility and Anti-scratch Ability
7.Good Crack Growth Resistance
8.Simple Connection
Two pipes were connected by flanges.
9.Good Solder Ability
Its interface strength is higher than the pipe body.
Application of HDPE Pressure Pipe:
1.City and town water supply system or project;
2.To transport natural gas & coal gas in daily life;
3.Transport sand, mud, slurry for dredger in dredging projects or sand suction projects;
4.Food & chemical industry;
5.To transport ore & tailings;
6.To replace cement pipe, cast iron pipe & steel pipe;
7.Landscaping pipeline.
1.Long Lifespan
It can be used for more than 50 years under normal condition.
2.Good Sanitary Performance
It isn’t added the heavy metal salt stabilizer, and its material is non-toxic, does not scale. it is not easy to form dirt, and avoids secondary pollution of drinking water.
3.Excellent Wear Resistance
Its wear resistance is 4 times higher than steel pipe under normal conditions
4.Good Corrosion Resistance
It can resist variety of chemical mediator except few oxidants.
5.Little Coefficient of Friction and Low Flow Resistance
Inside sleek, low friction coefficient, medium circulation ability raise, excellent wear resistance.
6.Fine Flexibility and Anti-scratch Ability
7.Good Crack Growth Resistance
8.Simple Connection
Two pipes were connected by flanges.
9.Good Solder Ability
Its interface strength is higher than the pipe body.
Application of HDPE Pressure Pipe:
1.City and town water supply system or project;
2.To transport natural gas & coal gas in daily life;
3.Transport sand, mud, slurry for dredger in dredging projects or sand suction projects;
4.Food & chemical industry;
5.To transport ore & tailings;
6.To replace cement pipe, cast iron pipe & steel pipe;
7.Landscaping pipeline.
Specificate Table of HDPE Pipe
|
Nominal External Diameter dn, mm |
PE80 |
PE100 |
||
SDR17.6 |
SDR11 |
SDR17.6 |
SDR11 |
|
|
Pressure Nominal PN≤0.2 MPa |
Pressure Nominal PN≤0.4 MPa |
Pressure Nominal PN≤0.6 MPa |
Pressure Nominal PN≤1.0 MPa |
|
|
Nominal Thickness en,mm |
Nominal Thickness en,mm |
Nominal Thickness en,mm |
Nominal Thickness en,mm |
|
20 |
2.3 |
3 |
2.3 |
3 |
25 |
2.3 |
3 |
2.3 |
3 |
32 |
2.3 |
3 |
2.3 |
3 |
40 |
2.3 |
3.7 |
2.3 |
3.7 |
50 |
2.9 |
4.6 |
2.9 |
4.6 |
63 |
3.6 |
5.8 |
3.6 |
5.8 |
75 |
4.3 |
6.8 |
4.3 |
6.8 |
90 |
5.2 |
8.2 |
5.2 |
8.2 |
110 |
6.3 |
10 |
6.3 |
10 |
160 |
9.1 |
14.6 |
9.1 |
14.6 |
200 |
11.4 |
18.2 |
11.4 |
18.2 |
250 |
14.2 |
22.7 |
14.2 |
22.7 |
280 |
15.9 |
25.4 |
15.9 |
25.4 |
315 |
17.9 |
28.6 |
17.9 |
28.6 |
355 |
20.2 |
32.3 |
20.2 |
32.3 |
400 |
22.8 |
36.4 |
22.8 |
36.4 |
450 |
25.6 |
40.9 |
25.6 |
40.9 |
500 |
28.4 |
45.5 |
28.4 |
45.5 |
560 |
31.9 |
50.9 |
31.9 |
50.9 |
630 |
35.8 |
57.3 |
35.8 |
57.3 |
