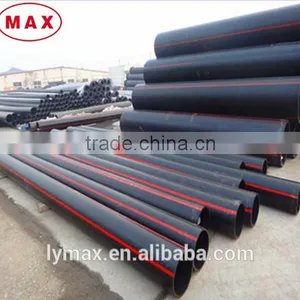

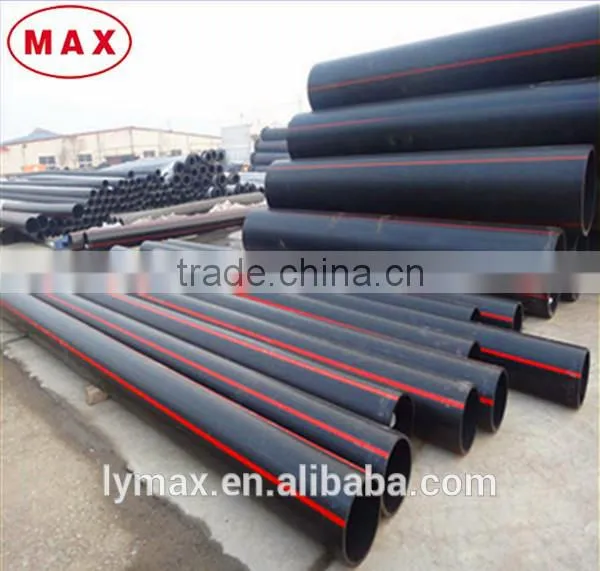

Help Centerpe 100 Dn50 pe Pipe for Mining
Related Products
-
Abrasion Resistant Pipe Mining Slurry Pipe(long Life Span)US$ 0.8 - 400MOQ: 10 Meters -
Hot Sale HDPE Coal Mine Pipes, Polyethylene Pipe for Coal MineUS$ 1 - 300MOQ: 100 Meters
-
Hdpe Red Mining Pipe HDPE100 With 100% Raw MaterialUS$ 0.8 - 400MOQ: 10 Meters
-
ISO9001 Water/mining/gas Supply pe Pipe,pe Pipe Price ListUS$ 2 - 200MOQ: 50 Meters
-
Mine Used DN110 PE100 Mining Pipe PricesUS$ 2 - 200MOQ: 50 Meters
HDPE pipe for water supply
HDPE pipe for gas supply
HDPE pipe for mining use
HDPE pipe for drainage
HDPE PIPE feature
1.Nontoxic:
PE pipe material nontoxic, tasteless,it belongs to green building materials, never scaling,
which can effectively improve the water quality.
2.Corrosion resistance:
High resistance to attack from various types of chemicals. No electrochemical corrosion.
3.No Leakage:
PE pipe is connected in the ways of butt fusion, socket fusion and electrofusion and the
strength of joint point is higher than tube itself .
4.higher flow capacity:
The Smooth inner wall is easy for pipeline transportation .Under the same condition
delivery capacity can be increased by 30%.
5.Convenient for construction and installation:
PE pipe could be installed in a variety of trenchless ways, so it is very convenient for
construction and installation.
6.Lower system and maintenance costs:
PE pipe is not only convenient to transport and install, but also reduce the worker’s
labor intensity and improve work efficiency.
7.Longevity:
50 years under pressure use.
8. Recycled and Environment-friendly
2.Advantage of hdpe pipe
1.anti-scaling
ld stability
3.smooth interior
4.zero leak rate
5.high performance
6.weather resistance
rrosion resistance
8.light weight and weldability
9.Non-toxic ,tasteless, odourless

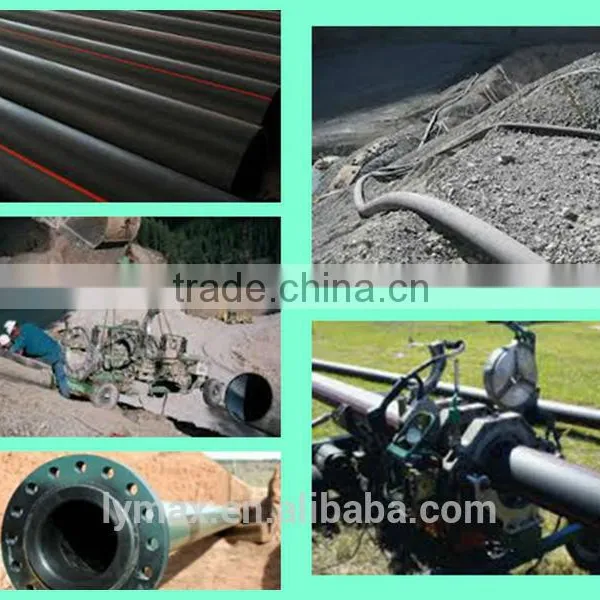

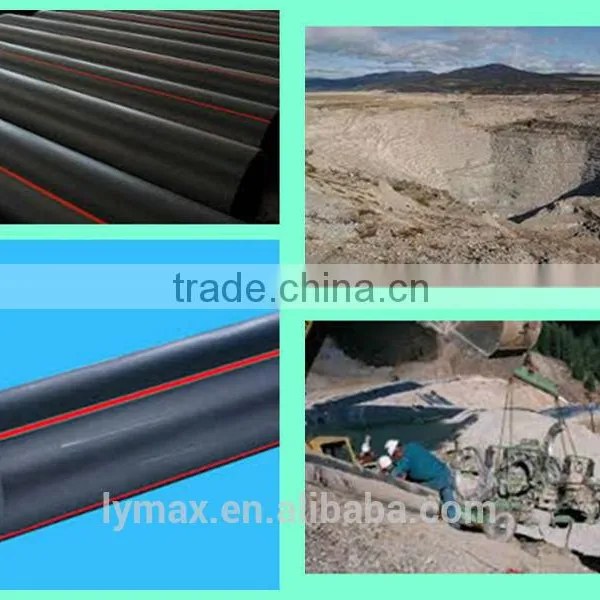

3. Application of hdpe pipe
(1). Municipal/Industrial Market: Underground Potable Water Distribution
(2). Drainage: Storm Water, Culverts, Highway /Residential / Agricultural Water Collection
(3). Sanitary Sewer: Gravity Sewer Systems, Sewer Force Mains, Directional Bore
(4). Water Distribution: Potable Water Systems, Water Service Systems
(5). Irrigation: Underground Irrigations Systems, Agricultural Systems
(6). Rehabilitation: Slip Lining, Pipe Bursting
(7). Reclaimed Water: Water Re-processing Systems
(8). Mining: Liquid Chemical Mining, Slurry and Tailing Lines, Mineral Extract System
(9). Geo-thermal Heating/Cooling: Heating/Cooling System for home and business
HDPE PIPE demension
| HDPE WATER SUPPLY PIPE (PE 100) SPECIFICATION | |||||
| EXECUTIVE STANDARD:GB/T13663-2000 THICKNESS:MM | |||||
| NOMINAL PRESSURE | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa |
| STANDARD SIZE RATIO | SDR26 | SDR21 | SDR17 | SDR13.5 | SDR11 |
| NOMINAL OD | |||||
| 16 | 2.0 | ||||
| 20 | 2.0 | 2.3 | |||
| 25 | 2.3 | 3.0 | |||
| 32 | 2.3 | 2.4 | 3.0 | ||
| 40 | 2.3 | 2.3 | 3.0 | 3.7 | |
| 50 | 2.3 | 2.9 | 3.7 | 4.6 | |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.3 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 26.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | |||||
