Hot Selling 2 Inch Gas Pipe
Features of HDPE Gas Pipe
1.Health: nontoxic, not scaling. It does not contain heavy metal additive and will not breed
bacterium
2.Chemical resistance
3.Size: 16mm to 1400mm
4.Thickness:2.3-102.9mm
5.Pressure Rating:0.6Mpa,0.8Mpa,1.0Mpa,1.25Mpa,1.60Mpa
6. Color: Black,black or other colors on request
7.Connection:socket fusion joint,butt fusion joint,electro fusion joint,flanged joint
8.Standard:GB/T13663-2000
9.Certification:ISO9001:2008
The Applications of HDPE Gas Pipe
1.City water pipe network system.
2.Urban and rural drinking water pipeline .
3.Chemical industry, chemical fiber, food, forestry, printing and dyeing, pharmaceutical. light
industry, paper-making, metallurgy Industrial pipeline.
4.Agricultural irrigation pipe.
The Advantages of HDPE Gas Pipe
1.Nontoxic: no heavy metal additives, would not be covered with dirt or contaminated by
bacterium
2.Corrosion Resistant: resist chemical matters or electron chemical corrosion
3.Lower Installation Costs: light weight and ease of installation can reduce installation costs by as
much as 50% over metal piping system
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than
metal pipe
5.Longevity: more than 50 years under proper use
6.Recycled and Environment-friendly
The Size of HDPE Gas Pipe
| HDPE Gas Pipe | ||||
| Product Standard:GB15558.1—2003 Wall Thickness:mm | ||||
| Nominal Diameter | PE80 | PE100 | ||
| SDR17.6 | SDR11 | SDR17.6 | SDR11 | |
| 0.2MPa | 0.4MPa | 0.6MPa | 1.0MPa | |
| wall thickness | wall thickness | wall thickness | wall thickness | |
| 20 | 2.3 | 3.0 | 2.3 | 3.0 |
| 25 | 2.3 | 3.0 | 2.3 | 3.0 |
| 32 | 2.3 | 3.0 | 2.3 | 3.0 |
| 40 | 2.3 | 3.7 | 2.3 | 3.7 |
| 50 | 2.9 | 4.6 | 2.9 | 4.6 |
| 63 | 3.6 | 5.8 | 3.6 | 5.8 |
| 75 | 4.3 | 6.8 | 4.3 | 6.0 |
| 90 | 5.2 | 8.2 | 5.2 | 8.2 |
| 110 | 6.3 | 10.0 | 6.3 | 10.0 |
| 125 | 7.1 | 11.4 | 7.1 | 11.4 |
| 140 | 8.0 | 12.7 | 8.0 | 12.7 |
| 160 | 9.1 | 14.6 | 9.1 | 14.6 |
| 180 | 10.3 | 16.4 | 10.3 | 16.4 |
| 200 | 11.4 | 18.2 | 11.4 | 18.2 |
| 225 | 12.8 | 20.5 | 12.8 | 20.5 |
| 250 | 14.2 | 22.7 | 14.2 | 22.7 |
| 315 | 17.9 | 28.6 | 17.9 | 28.6 |
| 355 | 20.2 | 32.3 | 20.2 | 32.3 |
| 400 | 22.8 | 36.4 | 22.8 | 36.4 |
| 450 | 25.6 | 40.9 | 25.6 | 40.9 |
| 500 | 28.4 | 45.5 | 28.4 | 45.5 |
| 560 | 31.9 | 50.9 | 31.9 | 50.9 |
| 630 | 35.8 | 57.3 | 35.8 | 57.3 |

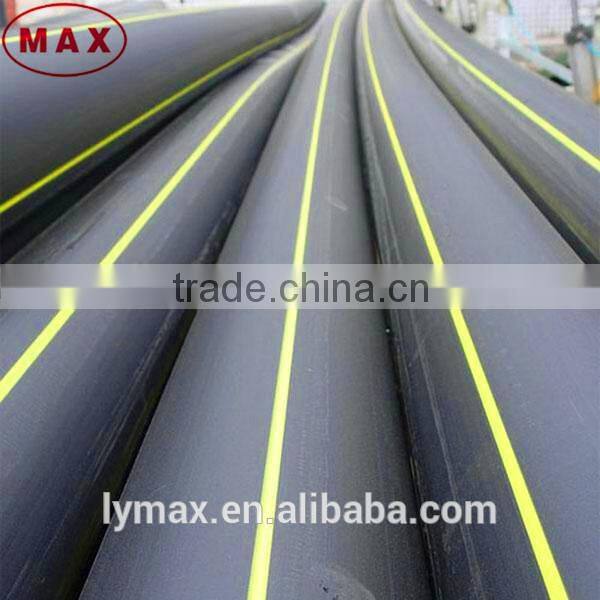

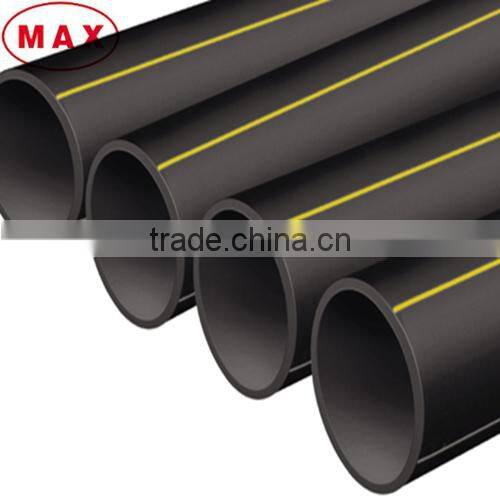

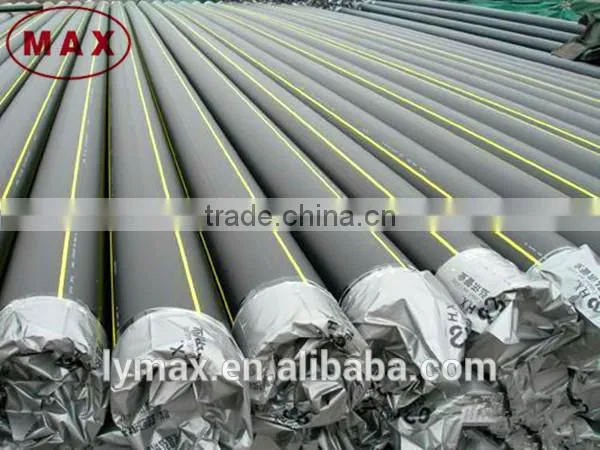

Products Show of HDPE Gas Pipes

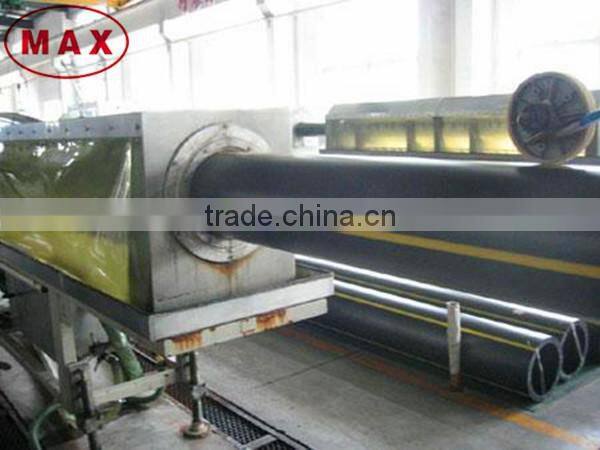

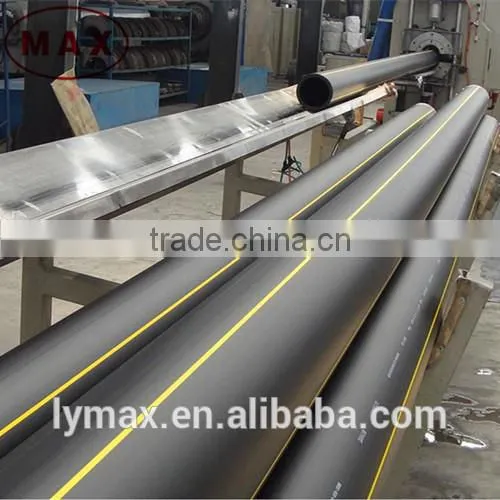

Production Scene of HDPE Gas Pipes
Customer Visit
Thanks for concentrating your attention on our products,
we shall make you feel satisfied in return.
