Specifications
hdpe pipe and fittingsMaterial: PE80, PE100
PN Grade: 0.6Mpa-1.6Mpa
Connection: flanged joint, butt fusion,socket fusion

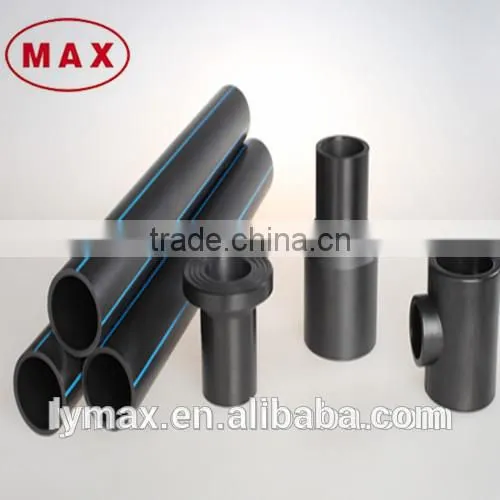

PE100 HDPE pipe and fittings for water and sand transportation system
Polyethylene Pipe - HDPE Water Pipe
Specification Parameter: Pressure 0.6Mpa, 0.8Mpa, 1.0Mpa, 1.25Mpa , 1.6Mpa
SDR: SDR26, SDR21, SDR17, SDR13.6, SDR11
Certificate: ISO9001, ISO4427
Standard: GB/T13663-2000, ASTM
Application: Water Supply, Irrigation, Dredging, Mining Tailing,etc
Properties :
1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): <=3
3.Oxidation Induciton Time, min (200(C)): >=20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.
Advantages of Polyrthylene Pipe :
1.High density polyethylene(HDPE) pipes
2.Light weight
3.Does not corrode
4.Resistant to chemical fertilizers and herbicides
5.Non toxic and odorless
6.Resistant to harsh climate
7.Up to 50 years' durability
8.Resistant to deformation
9.Smooth interior structure, low friction losses
10.Low labor coat for handling and installing
11.Reliable performance and easy maintenance
Specification Table of HDPE Pipe
| HDPE100 PIPE | |||||
| Standard:GB/T13663-2000 | Thickness: mm | ||||
| PN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa |
| SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| DN | Thicnkness | Thicnkness | Thicnkness | Thicnkness | Thicnkness |
| 16 | 2.0 | ||||
| 20 | 2.0 | 2.3 | |||
| 25 | 2.3 | 3.0 | |||
| 32 | 2.3 | 2.4 | 3.0 | ||
| 40 | 2.3 | 2.3 | 3.0 | 3.7 | |
| 50 | 2.3 | 2.9 | 3.7 | 4.6 | |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | - |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | - |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
The project case: HDPE pipe for water
Any query please feel free to contact us
