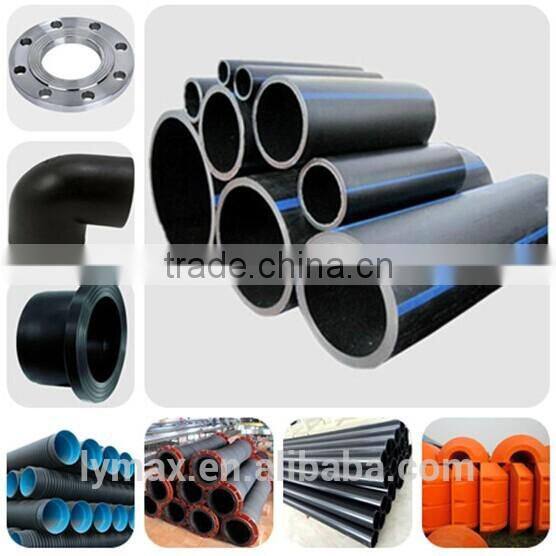

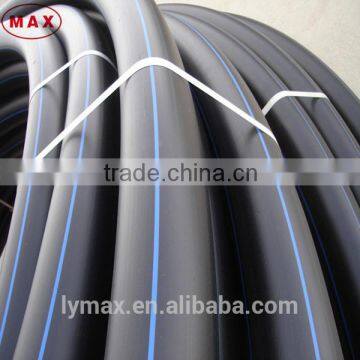

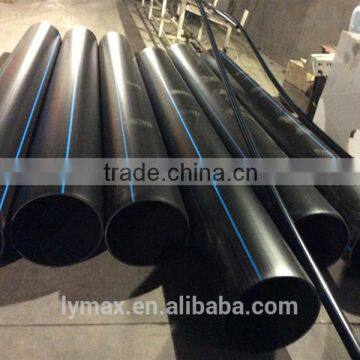

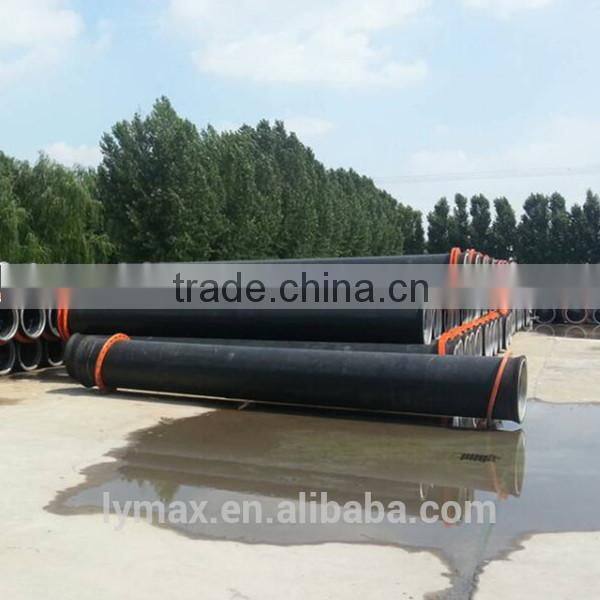

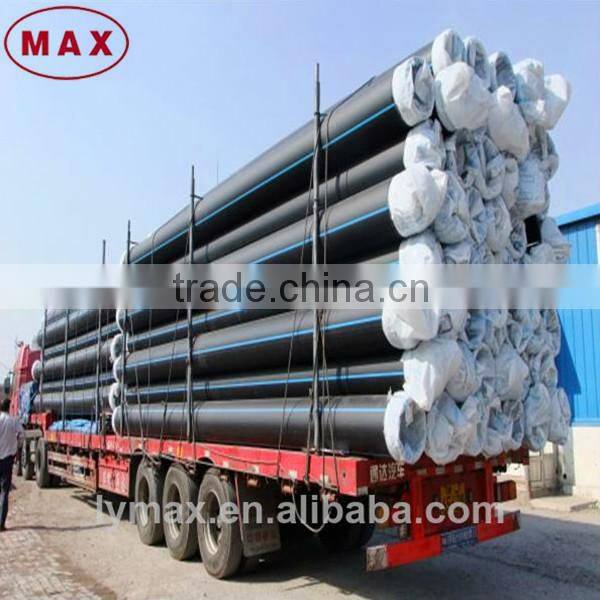

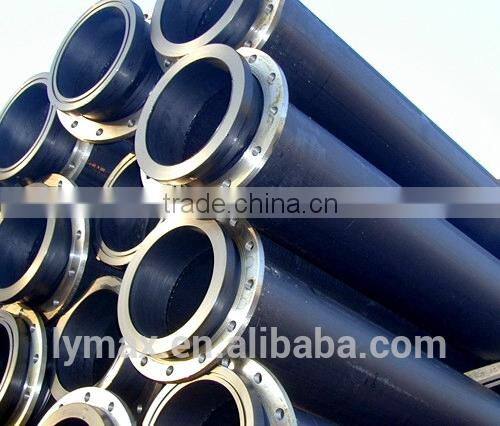

HDPE Pipe for Farm Agricultural Irrigation/PE100 PE80 Tube for Sale
- 10000 Meter / Meters per Month
- Qingdao
- T/T Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | MAX | Model Number: | HDPE |
Material: | Other, PE, PE100 | Specification: | 16-1400mm | Length: | 3-12m, 3-12m |
Thickness: | 2.3-82.4mm | Standard: | ISO,EN |
Product Description
HDPE Pipe for Farm Agricultural Irrigation/PE100 PE80 Tube for Sale
HDPE Pipe Features:
1.Material: PE100
2.sizes: 16mm to 1400mm
3.Connection: socket fusion, butt fusion joint, electro fusion joint, flanged joint
4.Certification: ISO9001
HDPE Pipe Advantages:
1.Non-toxic: No heavy metal additives would not be covered with dirt or contaminated by bacterium.
2.Corrosion Resistant: Resist chemical matters or electron chemical corrosion
3.Lower installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipe
5.Longevity: More than 50 years under proper use
6.Recycled and Environment-friendly
HDPE Pipe Applications:
1.Municipal water supply
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment.
HDPE Pipe Properties :
1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): <=3
3.Oxidation Induction Time, min (200(C)): >=20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.
HDPE Pipe Specifications:
O.D.(mm) | Standard Dimensions | ||||
SDR33 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
Normal Pressure(Mpa) | |||||
0.6 | 0.8 | 1 | 1.25 | 1.6 | |
e(mm) | e(mm) | e(mm) | e(mm) | e(mm) | |
20 | 2.3 | ||||
25 | 2.0 | 2.3 | |||
32 | 2.3 | 2.4 | 3.0 | ||
40 | 2.3 | 2.3 | 3.0 | 3.7 | |
50 | 2.3 | 2.9 | 3.7 | 4.6 | |
63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
90 | 2.8 | 4.3 | 5.4 | 6.7 | 8.2 |
110 | 3.4 | 5.3 | 6.6 | 8.1 | 10.0 |
125 | 3.9 | 6.0 | 7.4 | 9.2 | 11.4 |
140 | 4.3 | 6.7 | 8.3 | 10.3 | 12.7 |
160 | 4.9 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 5.5 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 6.2 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 6.9 | 10.8 | 13.4 | 16.6 | 20.5 |
250 | 7.7 | 11.9 | 14.8 | 18.4 | 22.7 |
280 | 8.6 | 13.4 | 16.6 | 20.6 | 25.4 |
315 | 9.7 | 15.0 | 18.7 | 23.2 | 28.6 |
355 | 10.9 | 16.9 | 21.1 | 26.1 | 32.2 |
400 | 12.3 | 19.1 | 23.7 | 29.4 | 36.3 |
450 | 13.8 | 21.5 | 26.7 | 33.1 | 40.9 |
500 | 15.3 | 23.9 | 29.7 | 36.8 | 45.4 |
560 | 17.2 | 26.7 | 33.2 | 41.2 | 50.8 |
630 | 19.3 | 30.0 | 37.4 | 46.3 | 57.2 |
710 | 21.8 | 33.9 | 42.1 | 52.2 | - |
800 | 24.5 | 38.1 | 47.4 | 58.8 | - |
900 | 27.6 | 42.9 | 53.3 | ||
1000 | 30.6 | 47.7 | 59.3 | ||
1200 | 36.4 | 57.2 | 70.6 | ||
1400 | 42.4 | 66.7 | 82.4 |
