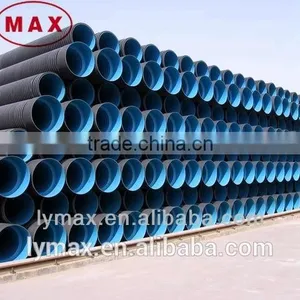

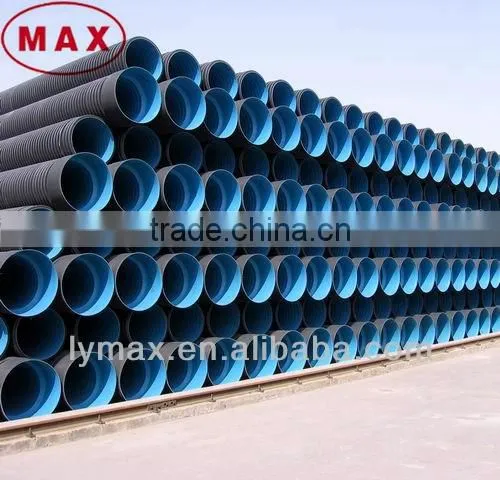

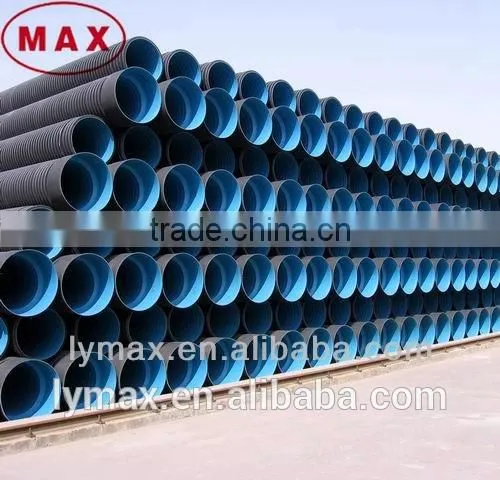

GB/T19472.1-2004 SN4 SN8 HDPE Corrugated Pipe Fitting Drainage with Test Report
Introduction to Corrugated Pipe Fittings for Drainage:
HDPE double wall corrugated pipes (double-layer twisted pipes) are one mould profile two layer extrudings. Applies to rain water drainage, sewage drainage in residential district, or pollutant and exhaust gas discharge as well as sewage drainage for mine industry, or organic pollutants drainage from people's life, agricultural drainage, low pressure irrigation and coalmine ventilation.
Features of Corrugated Pipe Fittings for Drainage:
1. High tensile strength, compressive resistance and well impact resistance;
2. Anti-uneven settling property, and can be applicable to soft clay shifting sand foundation;
3. Convenient for connection with non-breakable joint.
4. Smooth inner wall, high friction resistance, large quantity of water flowing.
5. Decay resistance, "green pipe", avoid secondary pollution.
6. Light weight, easy for carrying and transporting, convenient for construction with low comprehensive cost.
Advantages of Corrugated Pipe Fittings for Drainage :
1. High density, good compression resistance and good impact resistance;
2. Good resistance of asymmetrical bedding, available being buried in the mollisol and quicksand;
3. Rubber ring connection, easy but no leakage in the joint;
4. Smooth interior wall and low friction, high flow capacity;
5. Good corrosion resistance and no environment pollution;
6. Light weight, easily transport and install, low construction cost;
7. Application: municipal sewage; rainwater discharge; floodwaters drainage; irrigation; ventilation for mine and buildings; industrial waste discharge.
Application of Corrugated Pipe Fittings for Drainage:
1. Civil engineering
2. Agricultural irrigation
3. Conveying system for sewage plant
4. Pre buried piping under highway
5. Ventilation piping for chemical industry and mine
6. Power telecommunication cable conduit
7. Bridge construction
Physical Properties of Corrugated Pipe Fittings for Drainage:
Item |
Data |
Ring stiffness S1, S2 |
≥4.0KN/m², ≥8.0KN/m² |
Impact strength |
TIR ≤10% |
Flexiblity |
Smooth, no reverse bend and crature |
Inside Heating Box Test |
No multi-layer and crature. |
Moving Rate |
≤4 |
Specification Table of Corrugated Pipe Fittings for Drainage:
|
Inner diameter DN/ID(mm) |
Outer diameter
|
Depth of socket |
200 |
230 |
150 |
225 |
255 |
150 |
300 |
340 |
210 |
400 |
460 |
250 |
500 |
575 |
300 |
600 |
690 |
340 |
800 |
925 |
340 |
1000 |
1210 |
400 |
1200 |
1430 |
400 |
Production line:
Customer Visit:
FAQ:
We believe quality is our culture,with us your money in safe,and your business
in safe.
For more information,pls do not hesitate to contact us.
