Specifications
1. Excellent performance2. High efficiency
3. Energy-saving
4 .Safety and easy to operate
5. Adopt IGBT

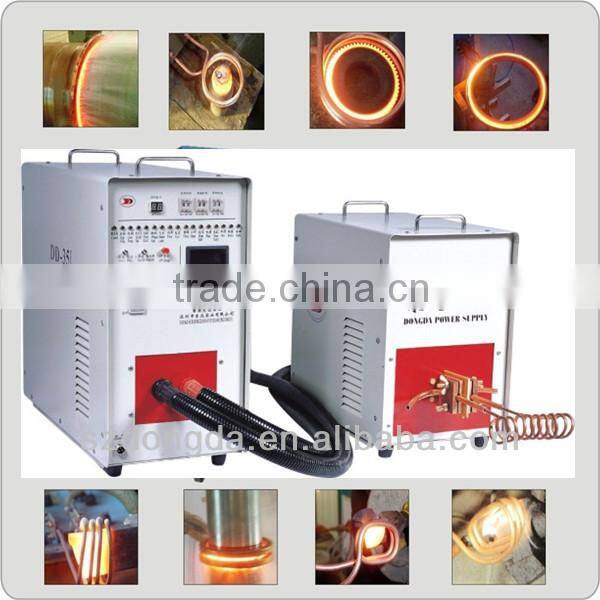

10KW Ultra-high Frequency IGBT Induction Welding Machine Price List For metal
Product Description:
Technical parameters:
Model |
DDCGP-06III Split type |
DDCGP-10 |
DDCGP-20 |
DDCGP-30 |
DDCGP-40 |
|
Maximum power |
6KW |
10KW |
20KW |
30KW |
40KW |
|
Input voltage scope |
220V 50-60HZ Single phase |
380V 50-60HZ Three phases
|
380V 50-60HZ Three phases
|
380V 50-60HZ Three phases
|
380V 50-60HZ Three phases
|
Output oscillating frequency |
500KHZ-1.1MHZ |
50KHZ-300kHZ |
50KHZ-250kHZ |
50KHZ-200kHZ |
50KHZ-200kHZ |
|
Heating time Retain time Cooling time |
0.1S-99.9S
|
||||
Duty cycle |
90% |
100% |
|||
|
Cooling water flow |
0.2MPa≥6L/MIN |
0.2MPa≥5L/MIN |
0.2MPa≥6L/MIN |
||
|
Cooling water temperature |
<45°C |
||||
Weight (KG) |
Controller:18 |
26 |
Controller:28.5 |
Controller:30 |
Controller:50 |
Transformer:2.5 |
Transformer:15 |
Transformer:24 |
Transformer:28 |
||
|
Volume (cm) ( LXWXH ) |
Controller: 55x25x52 |
59X27X49 |
Controller: 59X27X49 |
Controller: 68X39X57 |
Controller: 68X39X57 |
|
Transformer: 16x9x11.5 |
Transformer: 52X27X38 |
Transformer: 40X26X37 |
Transformer: 63X31X45 |
||
Product features:
1. Adopt imported high-quality IGBT power components and the third generation current transformer control technology,ensure its high reliability and less maintenance cost.
2. High quality IGBT power components ensure its working frequency up to 300KHZ,It's the most advanced technology.
3.100% full load duty cycle 24 hours continuous working with maximum power.
4.The heating performance will be more perfect due to constant current & constant power control function.
5.Display of output power,frequency and current.
6.Simple and convenient installation,only connected with power and water,professional preservation is not require.
7.Convenient for maintenances as its small volume.
8.The heating,retain power and time can be adjust of this automatic control type,this can hepe to improve heating repetitiveness, simplify hand operation.
10KW Ultra-high Frequency IGBT Induction Welding Machine Price List For metal

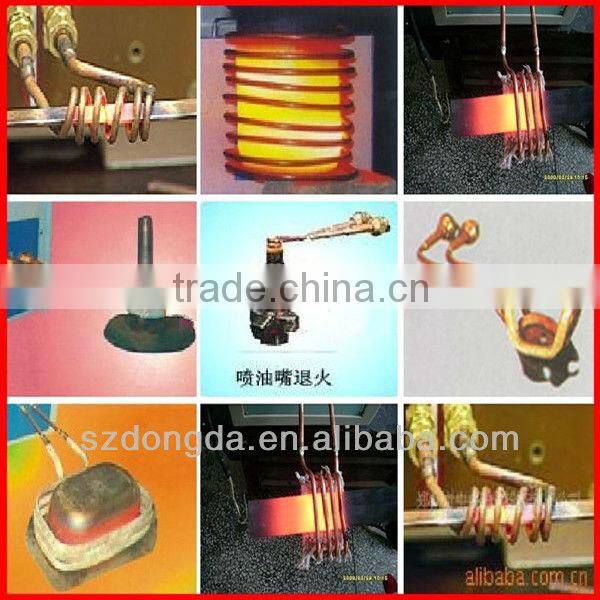

Application:
1.Heating (hot forging, hot fitting and smelting)
2.Welding (brazes welding, silver soldering and brazing)
3.Annealing (tempering and modulation)
4.Heat treatment (surface quench)
10KW Ultra-high Frequency IGBT Induction Welding Machine Price List For metal
Packaging & Shipping:
1.Outer package:Standard wooden cases
2.Inner package:Strenth films & Styrofoam
3. Shipping: by air, door to door by Courier, by sea, customer specified.
Our Sevices:
Company Information:
Induction heating equipment industry for more than 20 years of factory in Shenzhen, China, welcome to your visit,
10KW Ultra-high Frequency IGBT Induction Welding Machine Price List For metal
