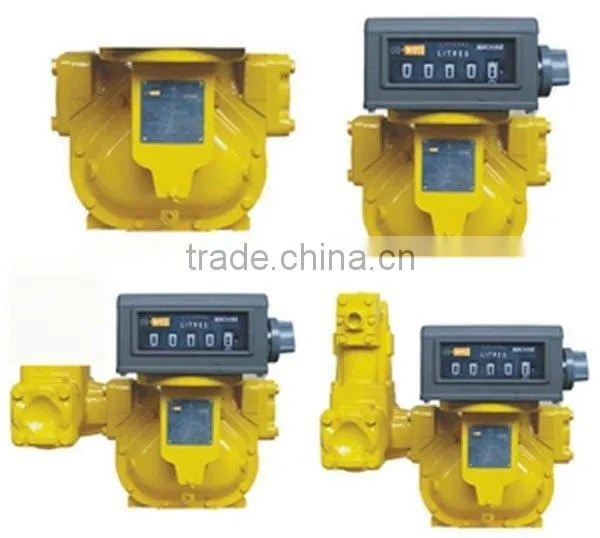

Flow Meter(fuel Meter, Liquid Control Meter)

Flow Meter(fuel Meter, Liquid Control Meter) thumbnail-1
Flow Meter(fuel Meter, Liquid Control Meter) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
oem
Contact Supplier Request Quote Chat Now
Shanghai Cowell Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name oem

flow meter(gas meter,fuel meter)

Characteristics:

Excellent stepless adjusting mechine;
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, Long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations temperature variation, viscosity
Choice of aluminum, cast iron, brass and stainless steel materials of construction



Technical Specification:



Model M-40 M-50 M-80 M-100 M-150
  Size 40mm / 11/2" 50mm / 2 " 80mm / 3 " 100mm / 4 " 150mm / 6 "
  Flow Range 25-250L/min 50-500L/min 75-750L/min 130-1300L/min 114-2270L/min
  Max. Pressure 10Bar/150PSI
  Accuracy ±0.2%
  Repeatability ≤0.05%
  Standard
   Measurement		 Unit Liter / US Gallon/MP Gallon
  Meter Body Aluminum,Cast Iron, Steel,Stainless Steel available
  Seal & Gasket Buna"N";Viton;Teflon available
  Stranier Mesh 80 for Diesel ,40 for Gasoline
  End Connections ANSI Flanged,NPT,BSPT,Slip Weld available
  Viscosity 30SSU~1,500,000SSU
