Home > Products > Industrial furnace > Medium Frequency Induction Crucible For Brass/Copper/Aluminum/Iron
Medium Frequency Induction Crucible For Brass/Copper/Aluminum/Iron
- 500 Set / Sets per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Induction Furnace | Usage: | Melting Furnace |
Place of Origin: | Guangdong, China | Brand Name: | DONG DA | Model Number: | DDZP-15, DDZP-15KW |
Voltage: | 3 PHASE 340-420V 50-60HZ | Power(W): | 15KW | Dimension(L*W*H): | 29*50*55(CM) |
Weight: | 26.5KG | Certification: | ISO9001:2000, CE | Warranty: | 0ne year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Crucible For Brass
1. Excellent performance
2. High efficiency
3. Energy-saving
4 . Safety and easy to operate
5. Environment-friendly
Crucible For Brass
Main model and applications:
Maximum melting capacity one time:20 to 30 minutes are needed.
Model | Steel,iron,stainless steel | Copper,gold,silver,lead | Aluminum,Magnesium |
DDZP-15 15KW | 4KG | 10KG | 3KG |
DDZP-25 25KW | 8KG | 20KG | 6KG |
DDZP-35 35KW | 12KG | 40KG | 12KG |
DDZP-45 45KW | 18KG | 70KG | 21KG |
DDZP-70 70KW | 28KG | 100KG | 30KG |
DDZP-90 90KW | 45KG | 120KG | 40KG |
DDZP-110 110KW | 60KG | 150KG | 50KG |
DDZP-160 160KW | 100KG | 250KG | 75KG |
DDZP-240 240KW | 150KG | 400KG | 150KG |
DDZP-300 300KW | 200KG | 500KG | 200KG |
Crucible For Brass
Crucible For Brass

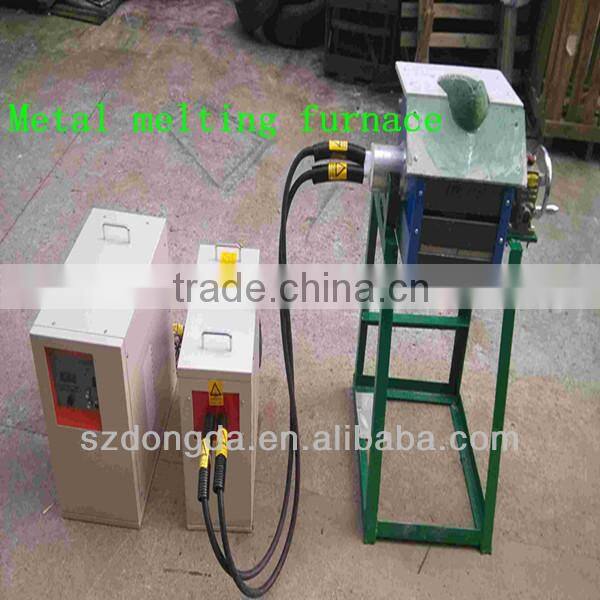

M.F melting furnace consists of
1.Ultra-small frequency induction heating power supply
2.Top-out or rotating-type melting furnace
3.The compensation capacitor box
Crucible For Brass

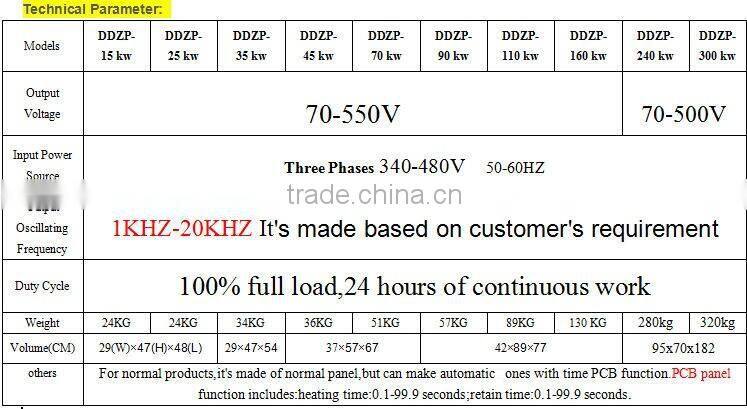

Specifications
Induction Reheating Furnace
Unload: Manually/ Auto pouring
Save 30-40% energy
24hours running
Fast melting
Crucible For Brass
Main features of M.F. melting machine
1. M.F. melting machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux oxides to produce high quality casting parts.
3. Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency other factors.
4. Power efficiency is 20% higher than the SCR medium frequency machines;
5. Small light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.
Crucible For Brass

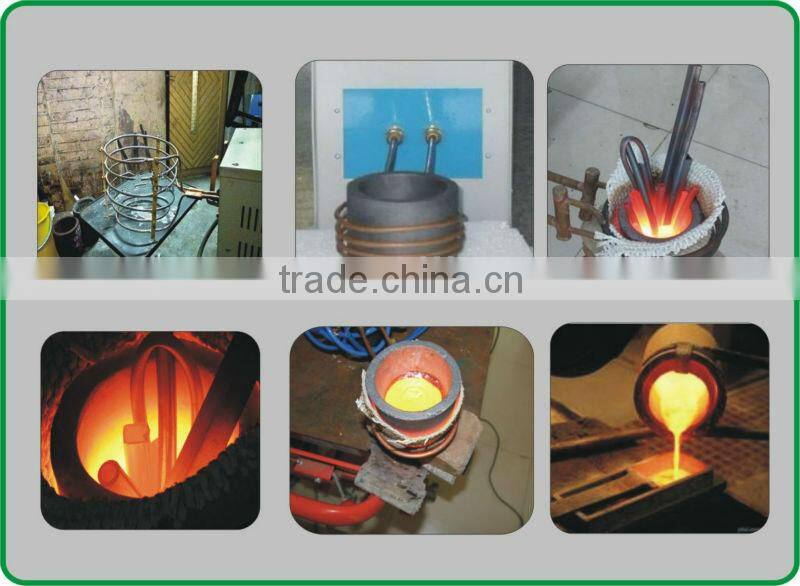

photos
CE certification
