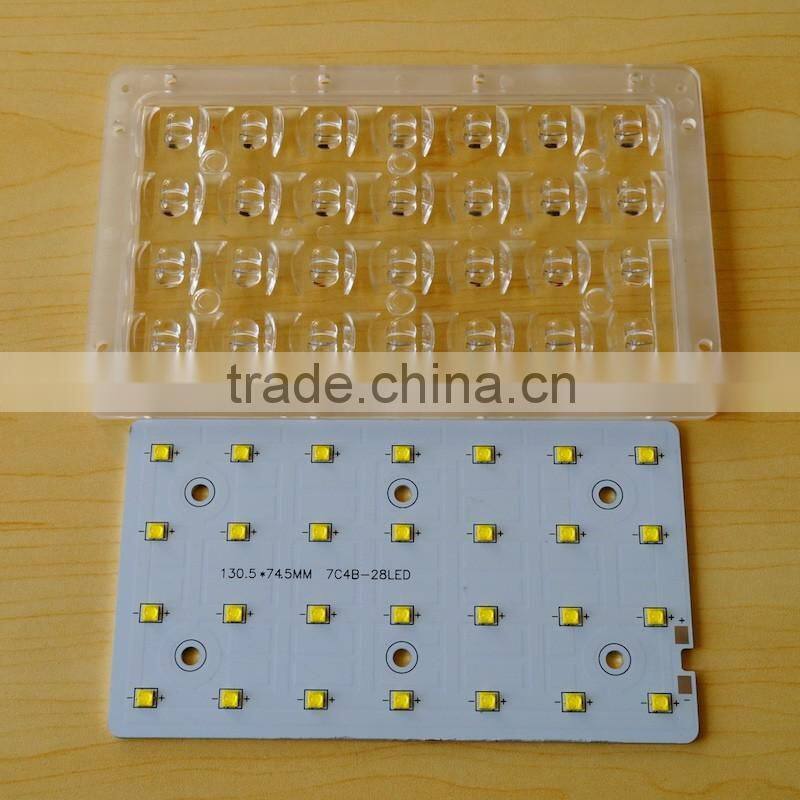

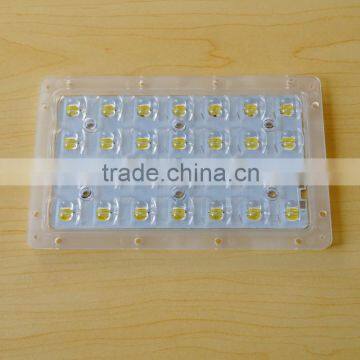

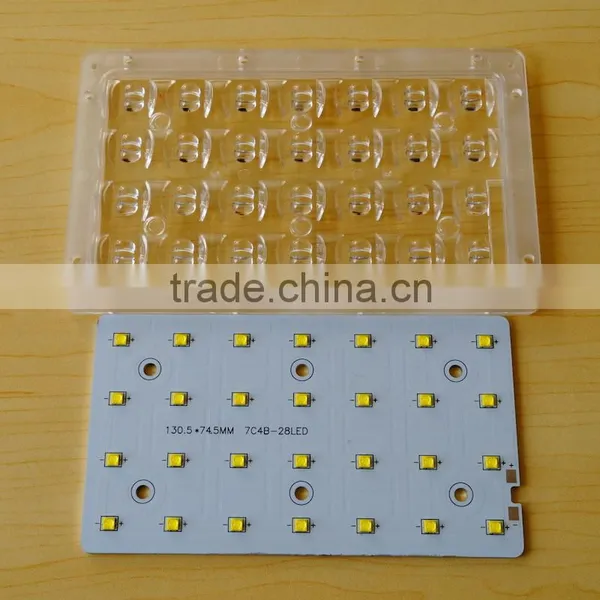

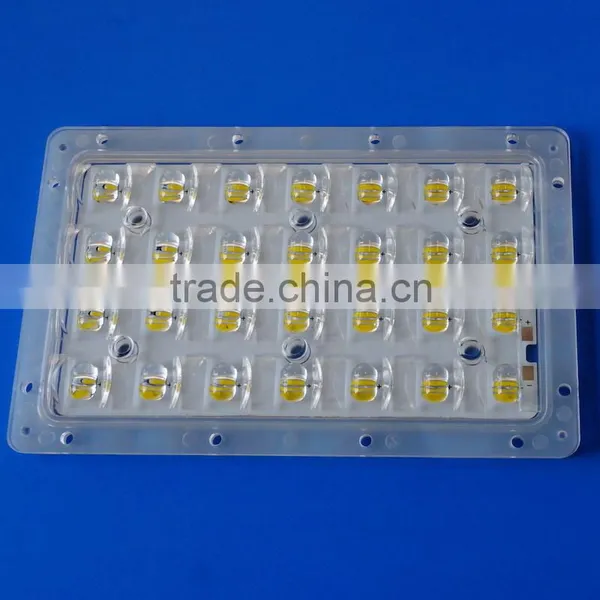

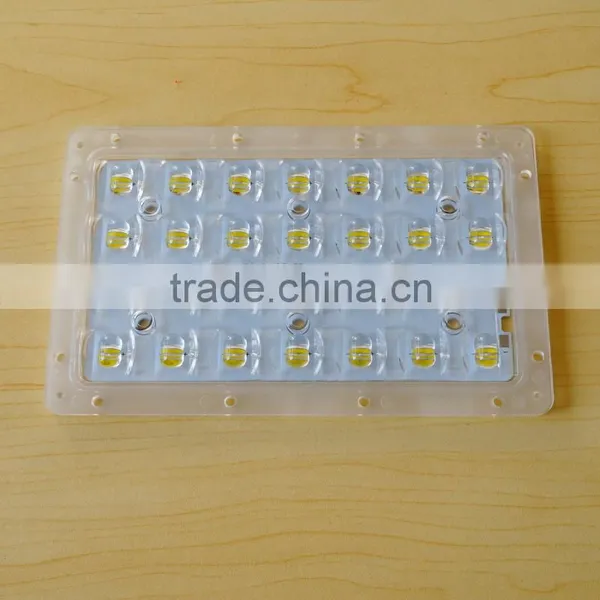

3535 SMD LED 28w street light led lens for street lamp

3535 SMD LED 28w street light led lens for street lamp

Model:L65X135CR810

Size:152*96*8m

 Viewing angle:65x135 degree

Aluminiu pcb size :130.5x74.5mm

Material:optical grade PC

Lens transmittance:91%

Work temperature:-40-120 °C

Certificates:ROHS

Match LED:Rebel, CREE XPE/XPG Leds

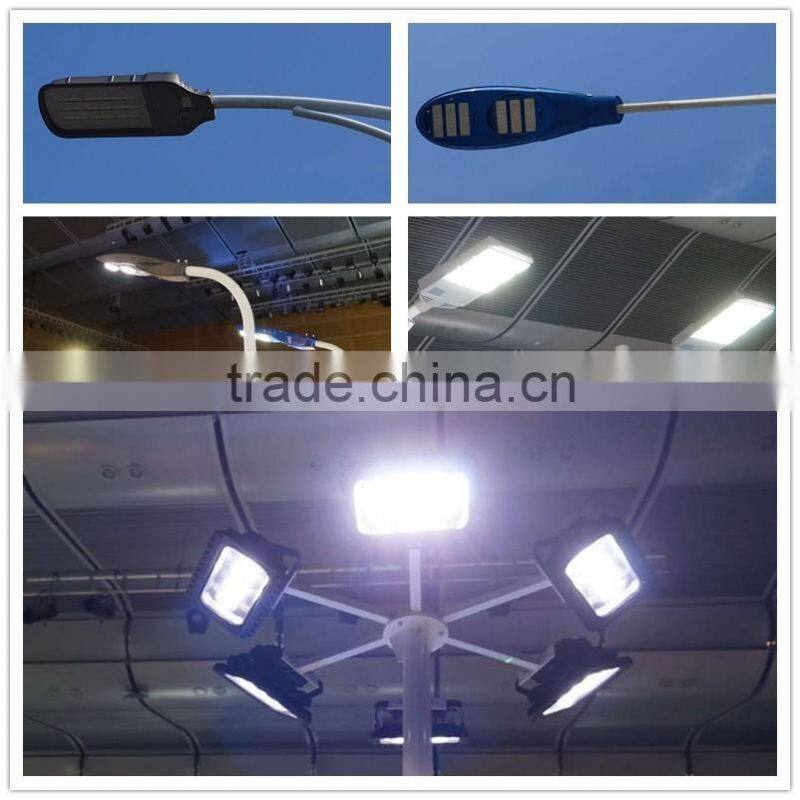

Application:LED Street Lamp,garden light,Tunnel lamp,etc

1. LED lens 4*7 28W ,application for led streetlight 28W, 56W, 112W, 168W

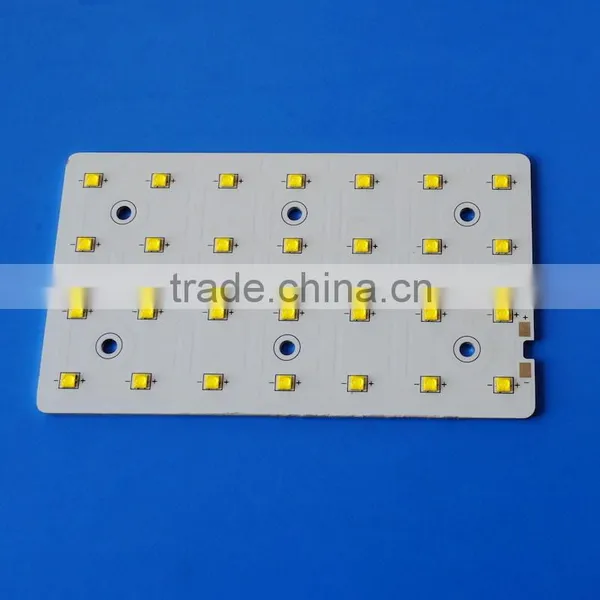

2. With aluminium PCB 2.0mm thickness, good thermal conductivity, lead-free, white oil, 14 series 2 parallel or all in series

3. 1W high power LED 110-120lm 5700-6300K Natural white 350mA, 3.0-3.6V with lowest attenuation after 3000hours

4. LED Constant drivers for 28W 14 series 2 parallel, AC110V/220V, Diameter 67mm 25mm height

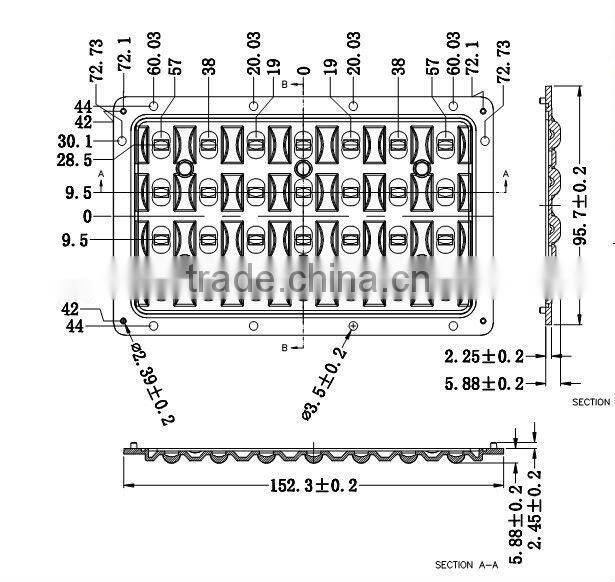

Drawing for 28w XTE PCB module for street lights as following:

Production line:

Export Markets : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East

Eastern Asia, Western Europe

Why choosing us - SUNSHINEOPTO ?

1. About 7 years specializing in High Power LED

2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components

3. Strict process and quality control

4. Good raw materials used in production

5. Strong design and production capability
