LPG centrifugal pump
- 900 Set / Sets per Month
- shanghai for LPG filling Side Channel Multistage Pump
- Credit Card
Product Details
Place of Origin: | Shanghai, China | Brand Name: | cowell | Model Number: | DB-65 |
Theory: | Other, side channel multistage pump | Structure: | Multistage Pump | Usage: | Other, LPG |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, LPG |
Pressure: | High Pressure | Application: | Other, loading /unloading of bulk trucks |
Packaging Details
wooden cases for LPG filling Side Channel Multistage Pump
Product Description
LPG filling Side Channel Multistage Pump SB-65
Application
underground storage
trucks and transporttrailers

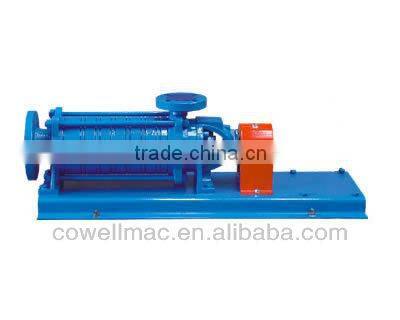

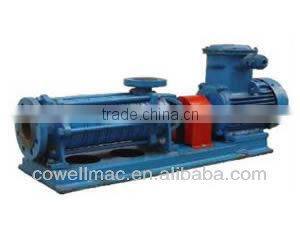

DB-65 Pump with Coupling Drive & Motor DB-65 Pump Only
Description
The DB-65 multistage pump, centrifugal and side channel, is designed with 6 stages, having a horizontal configuration, shaft sealing by mechanical seal without cooling, for handling LPG (liquid gas ), the liquids involving high-differential pressure, low NPSH conditions and aerated liquids up to 50% gas, such as pumping from underground tanks. The use of a pre-compression turbine at the suction end makes it possible to obtain a very small required NPSH, so that this pump can be used under very difficult suction conditions.
Technical Specification | |
Direction of rotation: | Anti-clockwise facing the end of the pump drive shaft |
Max. Pressure: | 40 bars at 120℃ |
Speed: | 1450rpm |
Power: | 380V,50Hz,4KW |
Ambient Temperature: | 20--60℃ |
Number of stages: | 6 |
Connecting flanges: | DIN 2501, PN 40 as per DIN 2501, PN 40 |
Bearings: | Sleeve bearing at the pump end, ball bearing at the drive end |
Flow rate | DB-65 | NPSH1[m] | NPSH2[m] | |
1.0/h3 | Delivery head(m) | 243 | 1.35 | 0.17 |
Power(KW) | 6 | |||
1.5/h3 | Delivery head(m) | 219 | 1.25 | 0.17 |
Power(KW) | 5.5 | |||
2.5/h3 | Delivery head(m) | 169 | 1.1 | 0.17 |
Power(KW) | 4.35 | |||
3.5/h3 | Delivery head(m) | 120 | 0.95 | 0.17 |
Power(KW) | 3.4 | |||
4.5/h3 | Delivery head(m) | 76 | 0.95 | 0.18 |
Packaging Data | ||
Model | Pump only | Pump with Motor |
Packaging | 1pc/Wooden Box | |
Net Weight | 64Kgs | 136Kgs |
Gross Weight | 78Kgs | 160Kgs |
Size | 100×48×45cm | 117×42×45cm |
FAQ
How to contact us?
Please add our webchat:y303154623y
online chat skype:yanchen287
Company Profile
Shanghai Cowell Machinery Co., Ltd. (Cowell) is a professional manufacturer of petroleum tank truck equipment, industrial flow meters and pumps in China.
Registered in Shanghai, and managed by a professional team, Cowell delivers quality, efficiency, and expertise to our clients worldwide, being dedicated to providing the below full line products:
1) Fuel and LPG equipment - positive displacement flow meters and pumps, loading and unloading meters and pump nozzles
2) Fuel and LPG dispenser components - LPG meters, pumps, nozzles, separators, manometers, solenoid valves, differential valves, hoses and other related products
3) Tank Truck Spare Parts - manhole covers, bottom valves, manual brackets, API adapters, vapor recovery adaptors and other related products
4) Ultrasonic flow meters, turbine flow meters, intelligence electromagnetic flow meters, target mode flow meters (for liquid, gas and steam - high and low temperature and normal temperature).
5) We also offer sourcing of other products and consolidate with ours' accourding to our customers' demand.
If you are interested in our products, please do not hesitate to contact us for further information.
