Specifications
1.. 25 KW IGBT SOLID POWER MODULE2.. AUTO TRACKING FREQUENCY
3. DIAGNOSIS ALARMING SAYSTEM ETC.
4.EASY OPERATION
High frequency induction heating machine:
1, Maximum oscillating power:15KVA
2, Output oscillating frequency:30-100KHZ
Induction Heating equipment
1. Safe and simple operate
2. For metal working
3. IGBT power supply
4. Water cooling system

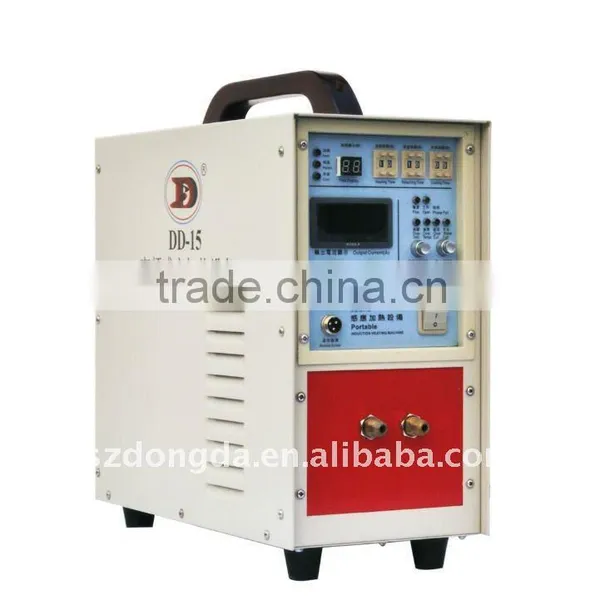

DD-15 High-frequency Induction Heating Equipment
1. Max Input Resonant Power: 15 Kw
2. Max Input Current: 32 A
3. Input Voltage: Single-Phase 180~245V 50/60 Hz
4. Oscillation Frequency: 30 Khz~100KHz
5. Request Of Cooling Water: Hydraulic Pressure≥0.2 Mpa; Flow Rate ≥2L/Min; Water Temperature≤45°C
6. Weight and Size: Control Box 18 kg, Size43*25*37 cm
7. Waterway Of Power Supply: Control Box 2 Water Inlets, 2 Water Outlets
The working power and working time can be adjust according to your request, this is better for improving the heating quality and repeating to heat the workpieces.
100% continuous loading, and the machine can keep working at max loading power for 24 hours.
The machine has a control function of constant power and constant current. It can heat the
workpieces very fast, and optimize the process of heating workpieces.
The machine is heating the workpieces extremely fast and it can make the workpieces reach a required temperature in a very short time. It can save a lot of time and improve the working efficiency.
The machine has a high-precision motive power trigger mechanism to frequency adjustment and frequency auto compensation circuit. It can highly improve the stability of heating.
It is simply and easy to install the machine, and the operation to the machine is simple as well. The machine works safely, and the output voltage is lower than 36V. There is no danger of high voltage electric shock.
There is no open flames when the machine is working. The machine makes electromagnetic induction by eddy current, and it only heats all kinds of metals.
...
