top seller high frequency induction heating inverter/coil unit/transformer/converter for shaft axle welding soldering brazing
Product Description

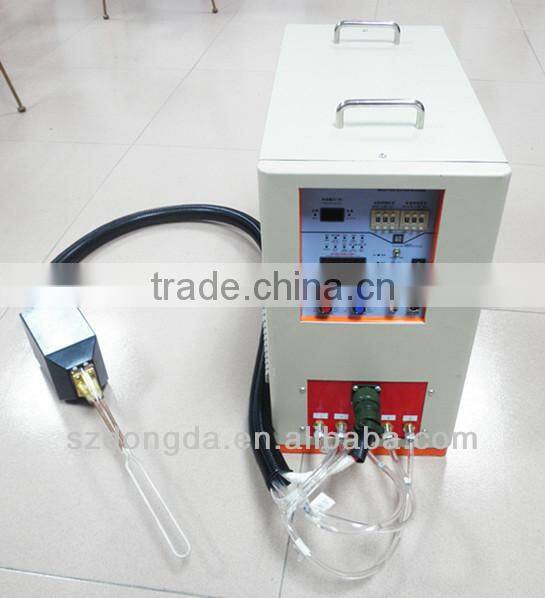

top seller high frequency induction heating inverter/coil unit/transformer/converter for shaft axle welding soldering brazing
Main model and applications
top seller high frequency induction heating inverter/coil unit/transformer/converter for shaft axle welding soldering brazing
Technical Parameter:
Model |
DD-04 |
DD-15I |
DD-15II |
DD-25I |
DD-25II |
DD-25JQ |
DD-35 |
DD-45 |
DD-70 |
||||||||
Max. Output power |
4KVA |
15KVA |
15KVA |
25KVA |
25KVA |
25KVA |
40KW |
50KW |
70KW |
||||||||
Input volt. |
Single phase 180~245V-50-60HZ |
Three phase 340V~420V-50-60HZ
|
|||||||||||||||
Output osc. frequency |
100KHZ-250KHZ |
30KHZ-100KHZ
|
30KHZ-80HKZ |
30KHZ-60HKZ |
|||||||||||||
Heating,retain current |
100A-400A |
200A-600A |
200A-1000A |
10A-40A |
15A- 70A |
20A- 100A |
20A- 120A |
||||||||||
Duty cycle |
100% full load ,24hours of continuous |
||||||||||||||||
|
Heating time Cooling time Retain time |
1s-99s |
||||||||||||||||
|
Cooling water desire |
0.2Mpa>4L/MIN |
0.2Mpa>6L/MIN
|
0.2Mpa>8L/MIN |
||||||||||||||
|
Cooling water Temperature |
No more than 45 degrees Celsius |
||||||||||||||||
|
KG |
Base |
14
|
20.5 |
16.5 |
29.5 |
17.5 |
30 |
40 |
40 |
48 |
|||||||
|
Sub- machine
|
14.5 |
15 |
26 |
32 |
37 |
67 |
|||||||||||
| Applications | |||||||||||||||||
top seller high frequency induction heating inverter/coil unit/transformer/converter for shaft axle welding soldering brazing
Main application:
It is the special heat treatment equipment mainly used in steel workpieces, metal parts hardening, normalizing, annealing and other conventional heat treatment.surface quench .
Temperature control requirements:
The heating temperature can follow your request, controlled at a certain fixed value, such as: 700 degrees, 1200 degrees, etc.
The temperature is controlled by a thermocouple or infrared temperature detector,
We also offer the thermocouple and the infrared temperature detector, according to your requirements, testing the machine, send to you, you don't have to consider installing and debugging problems.
Delivery fast
All products, we have the spot. On receipt of your full payment within three days after shipment to you.
top seller high frequency induction heating inverter/coil unit/transformer/converter for shaft axle welding soldering brazing

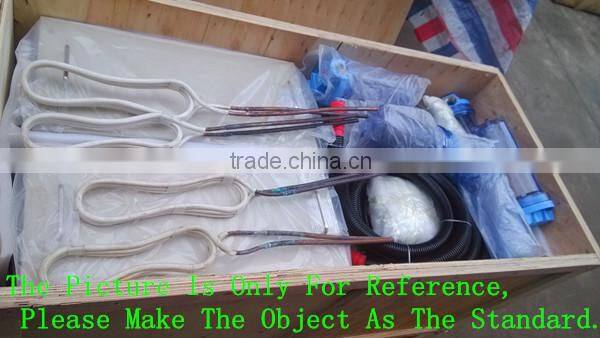

Packaging & Shipping
1.Outer package:Standard wooden cases
2.Inner package:Strenth films & Styrofoam
2.Our Services
Factory Inspection
Free techinical trainning and after-sale service.
Warranty period: 12 Month
Working life: More than 10 Years
top seller high frequency induction heating inverter/coil unit/transformer/converter for shaft axle welding soldering brazing
3.FAQ
1. How can I know your factory can produce equipment i need?
Re: Contact us and let us know your requirements of equipment. Then we will send
these requirements to our technical department. So we will know whether our factory
can offer you equipment or not.
2. Do your company customize equipment for customer?
Re: yes, we can customize equipment according to customers' requirements
3. Are your company factory or trade company?
Re: we are factory in GuangDong Province, China.Welcome to visit our factory!
4.Here is our contact information
Add: Shangwei Industrial Zone Songyuan Village Guanlan Town Shenzhen City
Guangdong Province China
Tel:86 0755-27986108 27986708 27986038
Fax: 86 0755-27986488
QQ : 2996496980
Skype ID: andrew6682527
we can chat online !
top seller high frequency induction heating inverter/coil unit/transformer/converter for shaft axle welding soldering brazing
