Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 2014 Self-priming Rotary Vane Pump

2014 Self-priming Rotary Vane Pump

Name: 2014 Self-priming Rotary Vane Pump
Brand: cowell
SKU: 106734815
Availability: InStock

Shanghai Cowell Machinery Co., Ltd.

5Yrs

2014 Self-priming Rotary Vane Pump thumbnail-1

2014 Self-priming Rotary Vane Pump thumbnail-2

2014 Self-priming Rotary Vane Pump thumbnail-3

2014 Self-priming Rotary Vane Pump photo-1

2014 Self-priming Rotary Vane Pump photo-2

2014 Self-priming Rotary Vane Pump photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

cowell

Model Number:

YB series V-belt drive motor

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name cowell

Model Number YB series V-belt drive motor

Theory Rotary Pump

Structure Other, Vane pump

Usage Oil

Power Electric

Standard or Nonstandard Standard

Fuel Gasoline

Application Other, gf

Specifications

Vane Pump with V-belt drive motor

2014 Self-Priming Rotary Vane Pump

Characteristics

Durable pumps for fast and quiet operation.

Sliding vane design provides sustained performance and trouble free operation, High reliability.

Adjustable relief valve protects pump from excessive pressure.

T-type strainers are available to protect pumping system from damage caused by welding slag and foreign matter in the piping and tanks.

Description:

YB Self-priming rotary vane pump with internal by-pass valve.

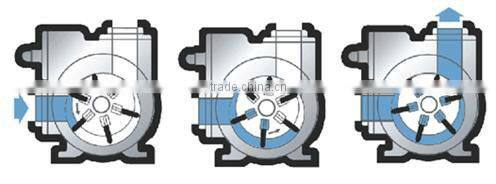

The pumps use a rotor with sliding vanes to draw the liquid.

The material of construction is nodular iron with sliding vanes built in a special self lubricating material.

Due to its efficiency the pumps can handle viscous and also volatile liquids and require less horsepower than other equivalent pumps.

The pumps are capable of higher flow-rates at lower number of revolutions than other designs.

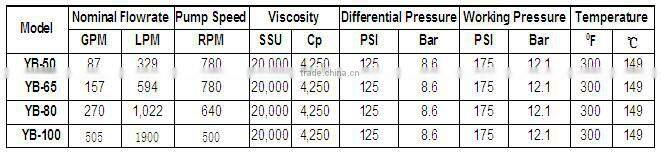

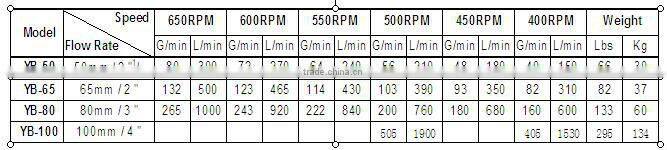

Technical Specification-Flow Rate:

Maximum Operating Limit:

Performance Curve:

Fuel oil delivery truck

Fleet refueling

Lube oil

Aviation refuelers

Transport of Petro Chemicals, gasoline, biofuels, solvents and any more.

Installation:

The pumps are widely used on mobile applications or fixed installations.

With cardan shaftsor hydraulic motor the pumps can be installed on any kind of tank truck or they are coupled to electric or diesel engine on metal bases to be used either on terminals, heavy duty dispensers, pumping/metering skids. mobile transfer units.

Equipped with Teflon seals the pumps can also be used on a wide variety of solvents in the petrochemical industry.


Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition.	Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;	We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty.
