diesel engine drive fuel oil rotary vane pump

Name: diesel engine drive fuel oil rotary vane pump
Brand: cowell
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port shanghai for diesel engine drive fuel oil rotary vane pump
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shanghai, China	Brand Name:	cowell	Model Number:	YB series
Theory:	Rotary Pump	Usage:	Oil	Power:	Electric
Standard or Nonstandard:	Standard	Fuel:	Diesel	Application:	Other, TRANSFER

Packaging Details

wooden case for diesel engine drive fuel oil rotary vane pump

Product Description

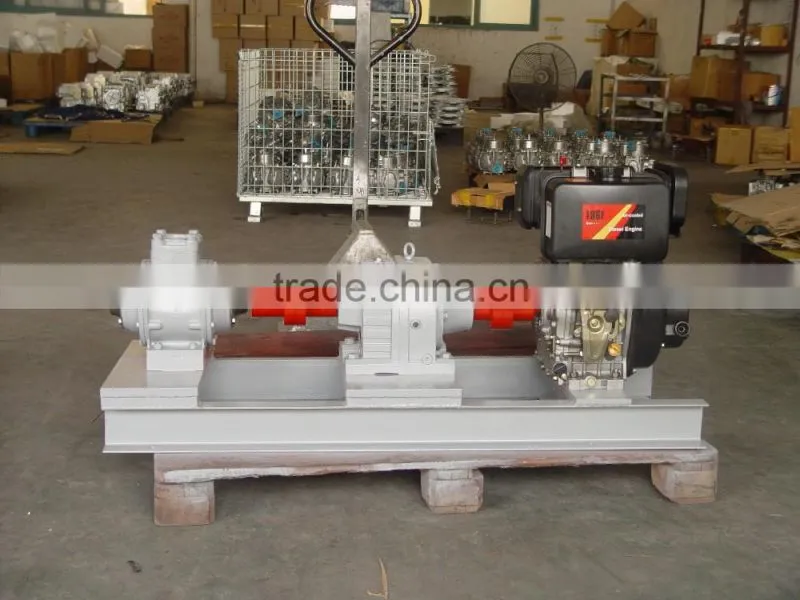

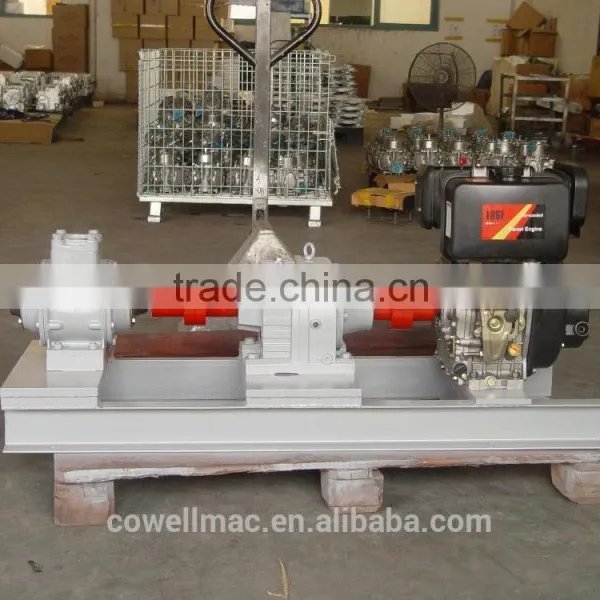

diesel engine drive fuel oil rotary vane pump

diesel engine drive rotary vane pump

Characteristics

~ Durable pumps for fast and quiet operation.

~ Sliding vane design provides sustained performance and trouble free operation, High reliability.

~ Adjustable relief valve protects pump from excessive pressure.

~ T-type strainers are available to protect pumping system from damage caused by welding slag and foreign matter in the piping and tanks.

Description:

YB Self-priming rotary vane pump with internal by-pass valve.

The pumps use a rotor with sliding vanes to draw the liquid.

The material of construction is nodular iron with sliding vanes built in a special self lubricating material.

Due to its efficiency the pumps can handle viscous and also volatile liquids and require less horsepower than other equivalent pumps.

The pumps are capable of higher flow-rates at lower number of revolutions than other designs.

Maxdddm Operating Limit

Maximum Operating Limit
Model	Nominal Flowrate		Rated Speed	Viscosity		Differential Pressure		Working Pressure		Temperature		Power
Model	GPM	LPM	RPM	SSU	Cp	PSI	Bar	PSI	Bar	0F	℃	HP	KW
YB-50	80	300	640	20,000	4,250	125	8.6	175	12.1	300	149	3	2.2
YB-65	157	594	640	20,000	4,250	125	8.6	175	12.1	300	149	5	4
YB-80	270	1,022	640	20,000	4,250	125	8.6	175	12.1	300	149	10	7.5
YB-100	505	1900	500	20,000	4,250	125	8.6	175	12.1	300	149	25	18.5

Package Data
Model	YB-50			YB-65		YB-80		YB-100
	Without Motor	W/Motor V-Belt Driven		Without Motor	W/Motor V-Belt Driven	Without Motor	W/Motor Coupling Driven	Without Motor
Packaging	1pc/ Wooden Case
Net Weight	31Kgs	86Kgs	40Kgs		92Kgs	64Kgs	185Kgs	160Kgs
Gross Weight	32Kgs	90Kgs	42.5Kgs		110Kgs	66Kgs	200Kgs	172Kgs
Size cm	44×33×39	80×55×59	44×33×32		119×55×59	45×40×38	130×47.5×76	54×49×58

Fuel oil delivery truck
Fleet refueling
Lube oil ;
Aviation refuelers ;
Transport of Petro Chemicals, gasoline, biofuels, solvents and any more.


Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition.	Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;	We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty.
