24W aluminium pcb board led smd led for Street light
| Model | SUN-SL3X8CR45X143 |
| Power | 24w for per unit |
| Beam angle | 45x143 degree |
| Lens size | 250*74mm |
| PCB size | 228*54*1.6mm |
| LED Mounted | CREE XTE 130-160LM/W |
| Lens transmittance | 93% |
| Work temperature | -40-120 degree |
| Material | Optical grade PC |
| Related on 3x8 lens | 70x154 degree lens |
| Delivery time | 5-7 work days for 200 sets |

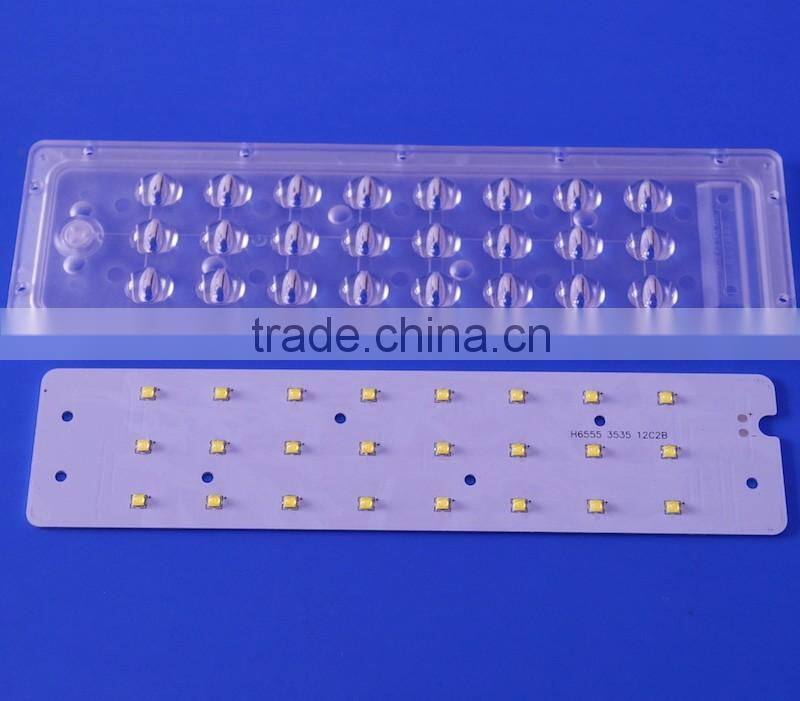

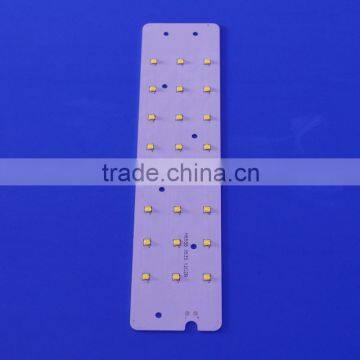

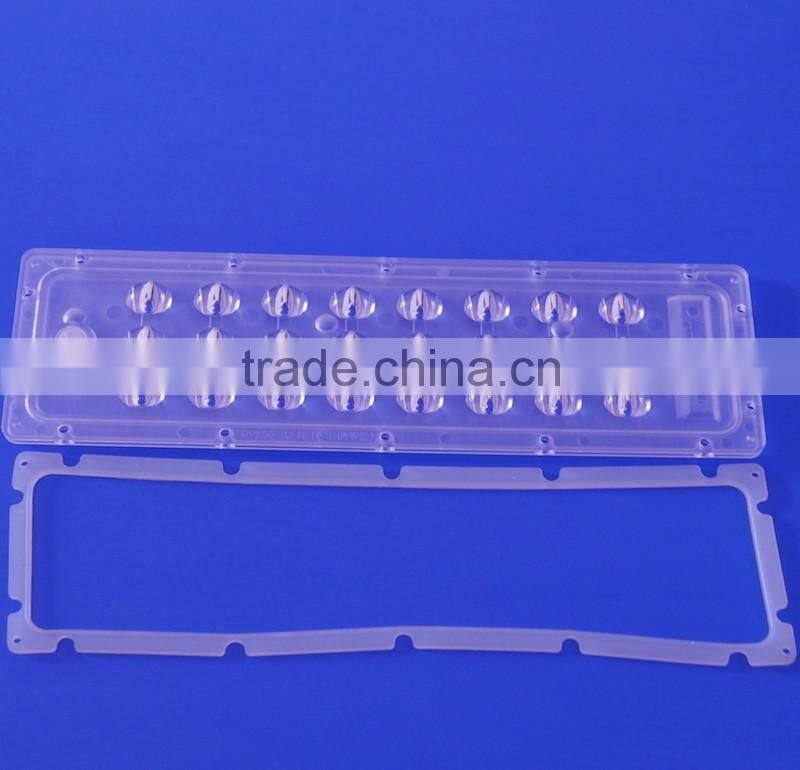

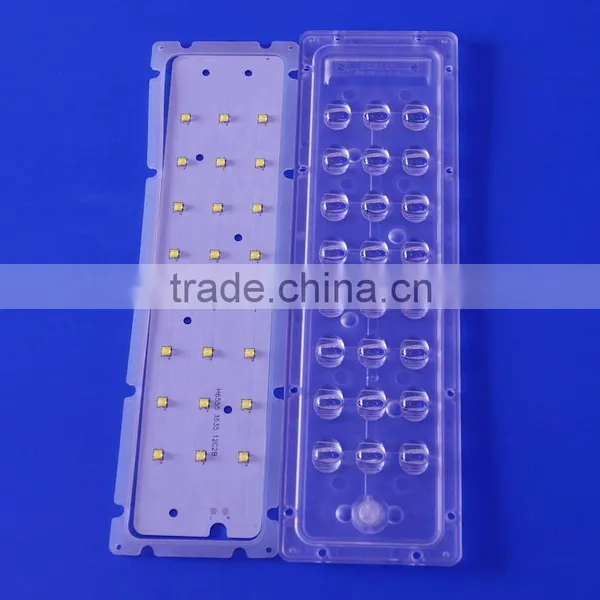

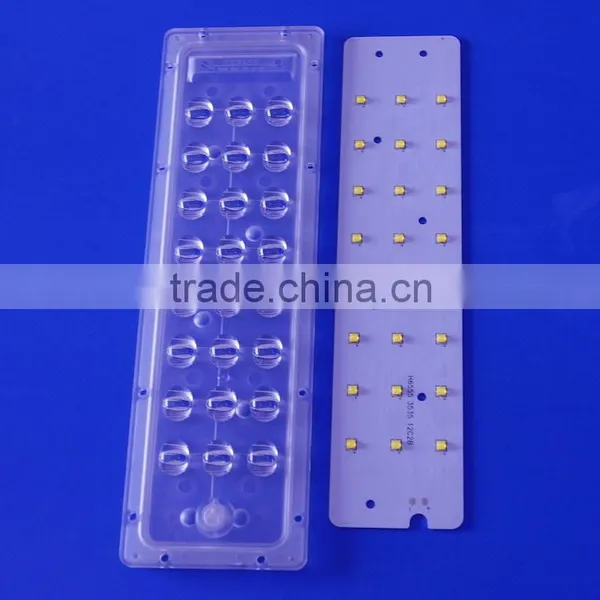

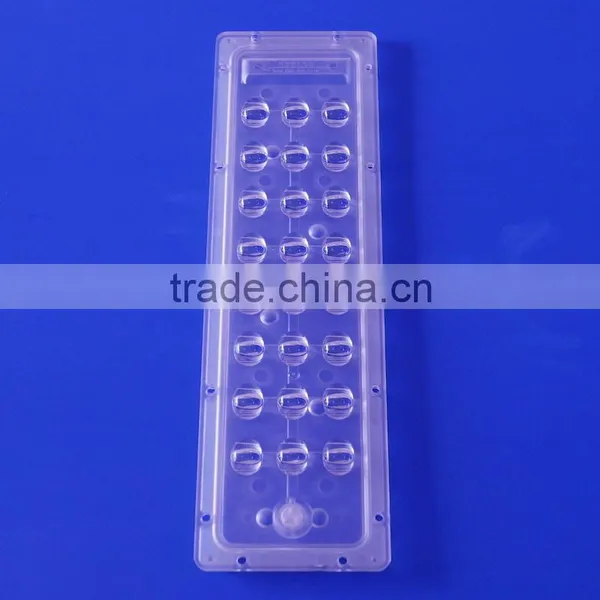

Picture for 3x8 LED lens :

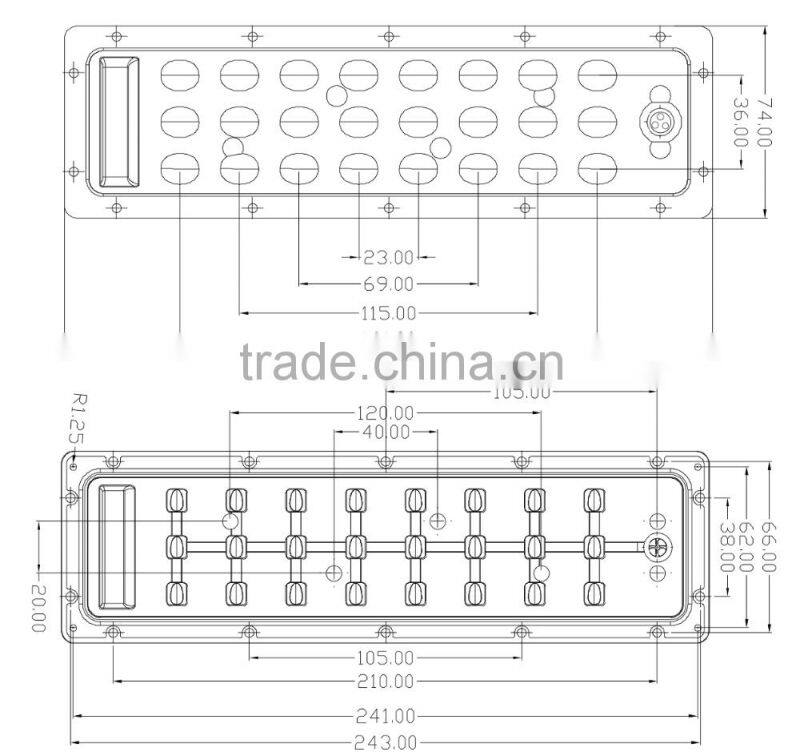

Drawings and Beam pattern for 3X8 LED lens :
Packing informaitons :
Features :
- This SKD 3x10 LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps like 30W,60W,90W and so on .
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like 70x126°, 140x70°,120x60°, 90x126°,60x60° etc.
| Payment Terms | T/T,Western Union, Paypal, MoneyGram |
| Minimum Order | 100pcs |
| Lead Time Delivery Time | 7-10days,it based on your quantity |
| Sample Available | Yes |
| Delivery ways | DHL/Fedex/UPS express, Sea or air shipping for your choice |
| Packing Info | carton package |
Application: It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Related for 3x8 LED module :
Production line:
Export Markets : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East
Eastern Asia, Western Europe
Why choosing us - SUNSHINEOPTO ?
1. About 5 years specializing in High Power LED
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
