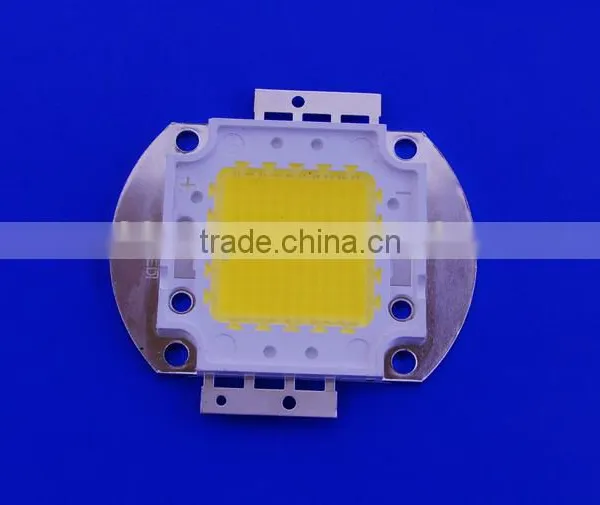

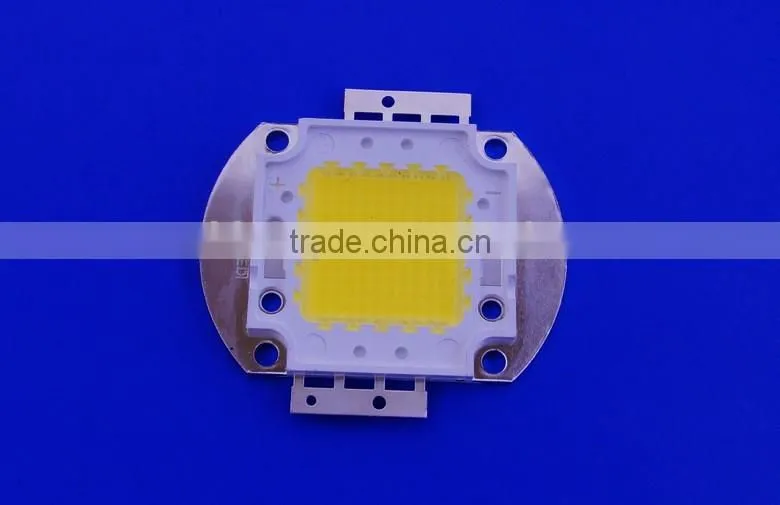

30W 50W 100W Epistar Chip Led Light
| Model : | SP100WA |
| Led holder size : | 56.07x51.61mm |
| Luminous Flux : | 12000-13000lm |
| CCT : | 6000-6500K |
| Forward voltage : | 30-36v |
| View angle : | 120degree |
Thermal Resistance : |
8 degree/W |
| Forward current : | 3500mA |
ESD Sensitivity : |
+-2000V HBM |

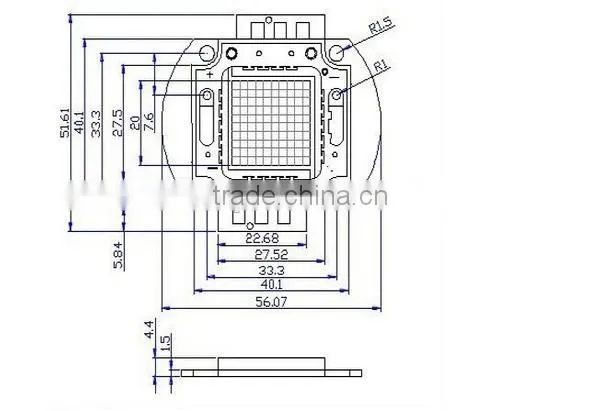

Outline Dimensions for 100w led flood light diodes

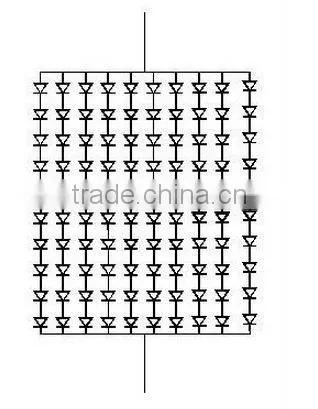

Circuit diagram - 10 series 10 parallel
Advantage : LM-80 Energy Star Passed
BEST raw materials used in our LED production are as following :
Chip:USA Bridgelux chip, Taiwan Epistar chip
Silicon glue: USA Dowcorning (good glue has less lighting decreasing)
Powder: USA Intermatix (good powder has better performance in lumens)
Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper)

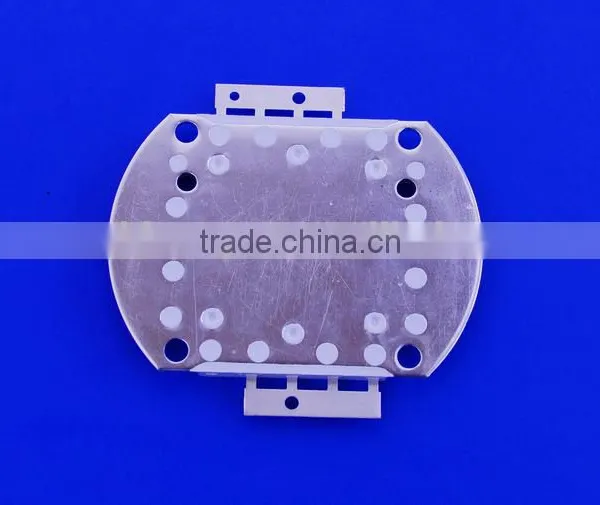

Led base:red/ black cooper base (for better thermal conductive/ disspate)

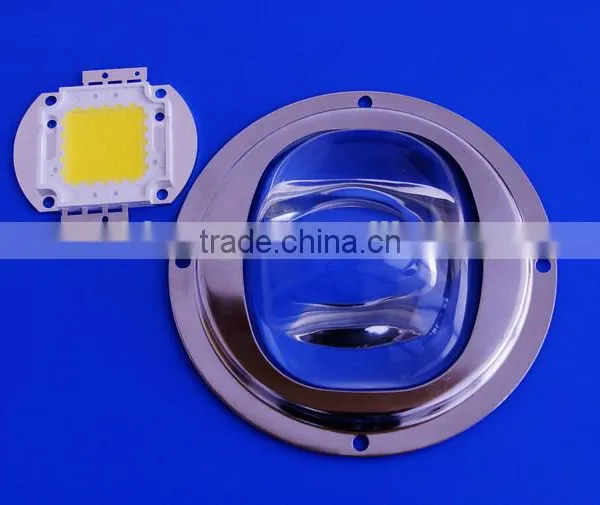

Similar related led products
Features of 100w led flood light diodes
*Super high Flux output and high Luminance
*Designed for large current circuit
*Low thermal resistance 12C/W
*Wide viewing angle ,Intergrated package
*ROHS compliant
Applications for100w led flood light diodes
General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Flood lighting,cast light lamps
- Street lamp,Tunnel lamp

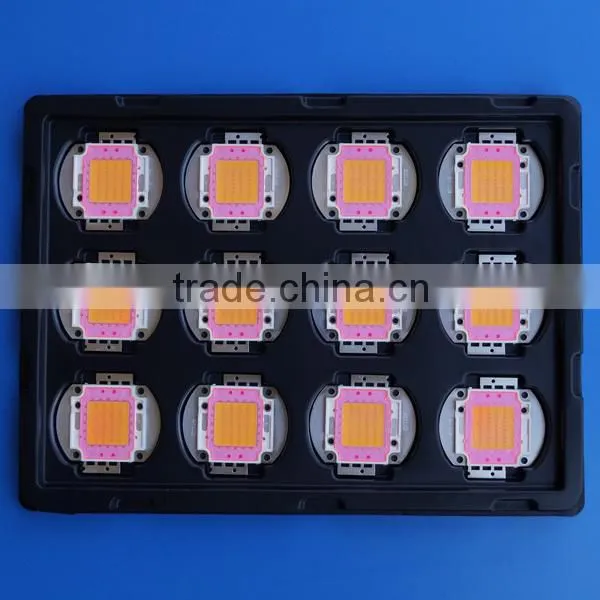

Packing FOR 100w led flood light diodes
Production line for 100w led flood light diodes
Company Certificate & Team Training
Why choosing us - SUNSHINEOPTO ?
1. About 6 years specializing in High Power LED
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
6. Packaging: strong enough package to protect goods
7. Shipping: any shipping can be arranged as your request.
8. We have a R&D department with a professional team and we have a factory with rich experience, So OEM and ODM can be accepted.
9. Our after-sale service is complete. The warranty is 12 months.
How To Order Our Product ?
1,Customers offer general drawing of the product.
2,Our designer will make a professional drawing according to your product layout.
3,After your confirmation of the drawings,inform us the material and types you need.
4,We will do quote once get the confirmation of you.
5,Note Customers can order all product samples we put or you can also have your own idea as we are custom-made product supplier,so different colors and types are available.
