Specifications
High super bright 3W Epistar LED Chip 240lm 6500k1.Epistar chip
2.Various of colors available
3.low-attenuation

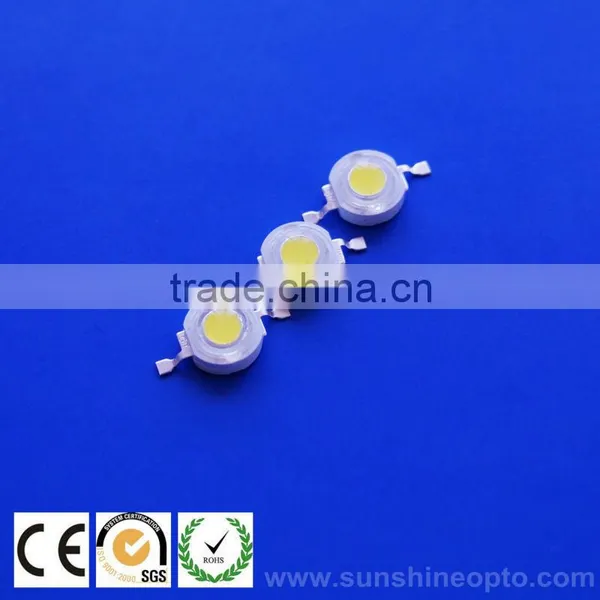

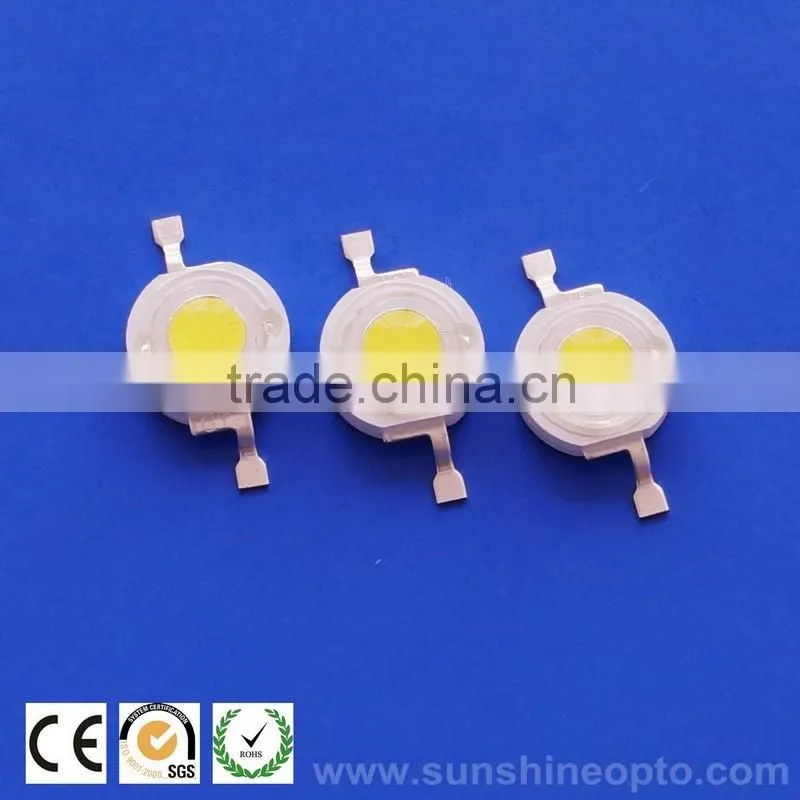

High super bright 3W Epistar LED Chip 240lm 6500k
Model:SP3WNW
LED angle :120degree
Voltage:3.5-4.5v for 3w
Current:750ma for 3w
Color temperature: 2900-3200k , 4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k
Chips: Epistar or Bridgelux chip
Luminous Flux :220-240LM
Advantage : LM-80 Energy Star Passed
BEST raw materials used in our LED production are as following :
Chip:USA Bridgelux chip, Taiwan Epistar chip
Silicon glue: USA Dowcorning (good glue has less lighting decreasing)
Powder: USA Intermatix (good powder has better performance in lumens)
Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper)
Led base:red/ black cooper base (for better thermal conductive/ disspation)
Similar related led products in Green ,Blue ,Red ,warm white ,RGB :
Featuresof 1/3W high power led
*Super high Flux output and high Luminance
*Designed for high current operation
*Low thermal resistance
*SMT solder technology
*Lead Free product
*ROHS compliant

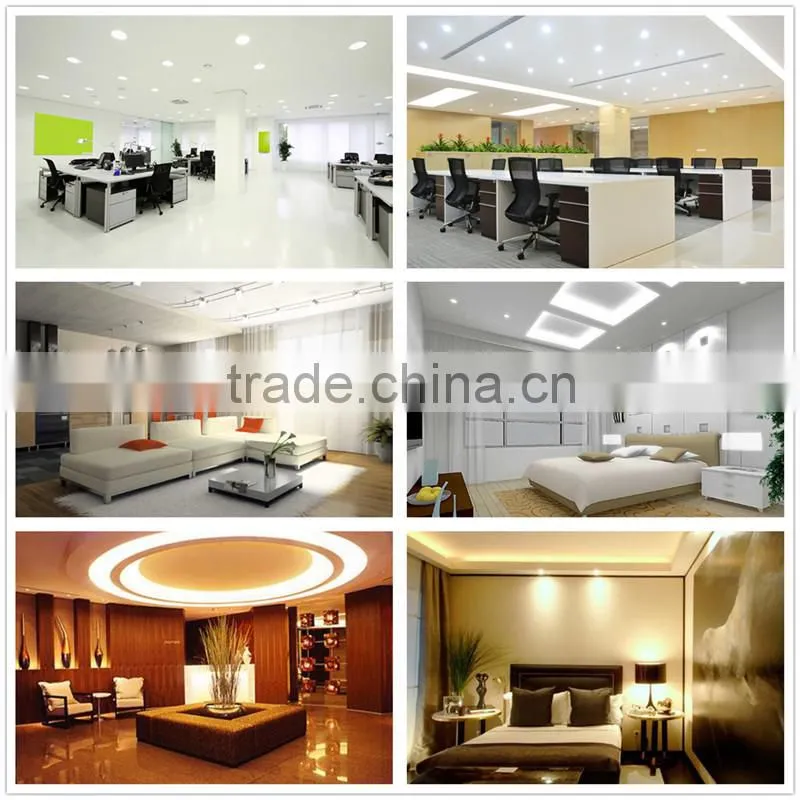

Applications for 1/3W high power led
*General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
Outline Dimensions of led - Dome Type of 1w/3w led :
Notes
1. All dimensions are in millimeters.(tolerance:±0.2)
2. Scale:none
Packing for 1W/3W LED :
Application For 1W Bridgelux Chip Led with 120-140lm:

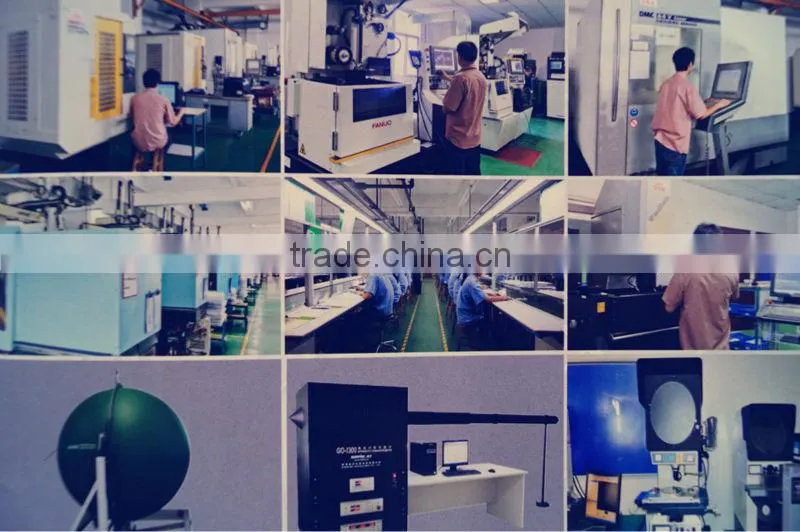

Production line & Equipment for 1W 3W LED:
Company Certificate & Team Training :
Why choosing us - SUNSHINEOPTO ?
1. One-Stop Service of led components and 5 years specializing in High Power LED industry
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5.Strong design and production capability
