Specifications
1.Epistar&Bridgelux chip.2.Various of colors available
3.super bright, energy saving
4.Small order accept
Super Brightness 50w epistar chip led
Model : SP50WA
Led holder size :56x40mm
Luminous Flux : 5000-5500lm
CCT : 6000-6500K
Forward voltage :30-36v
View angle : 120degree
Thermal Resistance :8 degree/W
Forward current : 1750mA
ESD Sensitivity :+-2000V HBM

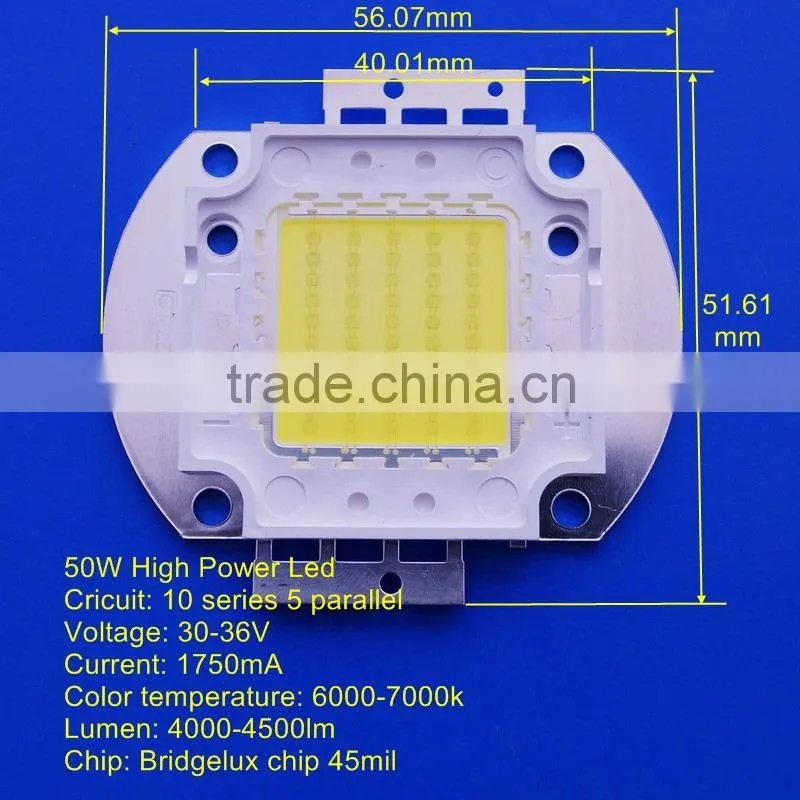

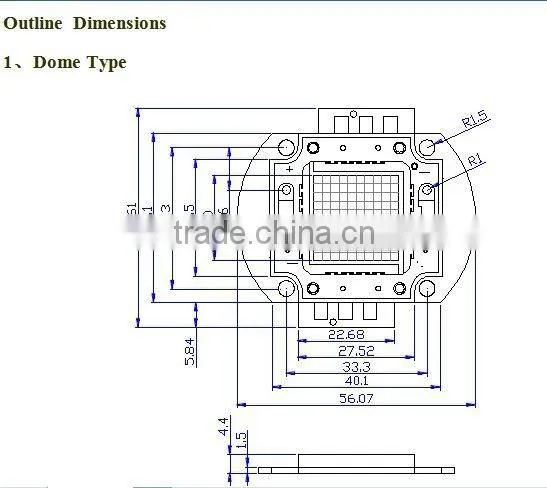

Outline Dimensions for 50w led street light

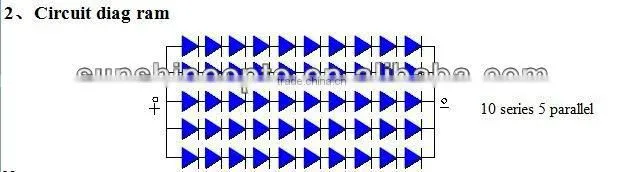

Circuit diagram - 10 series 5 parallel
Advantage : LM-80 Energy Star Passed
BEST raw materials used in our LED production are as following :
Chip:USA Bridgelux chip, Taiwan Epistar chip
Silicon glue: USA Dowcorning (good glue has less lighting decreasing)
Powder: USA Intermatix (good powder has better performance in lumens)
Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper)
Led base:red/ black cooper base (for better thermal conductive/ disspate)

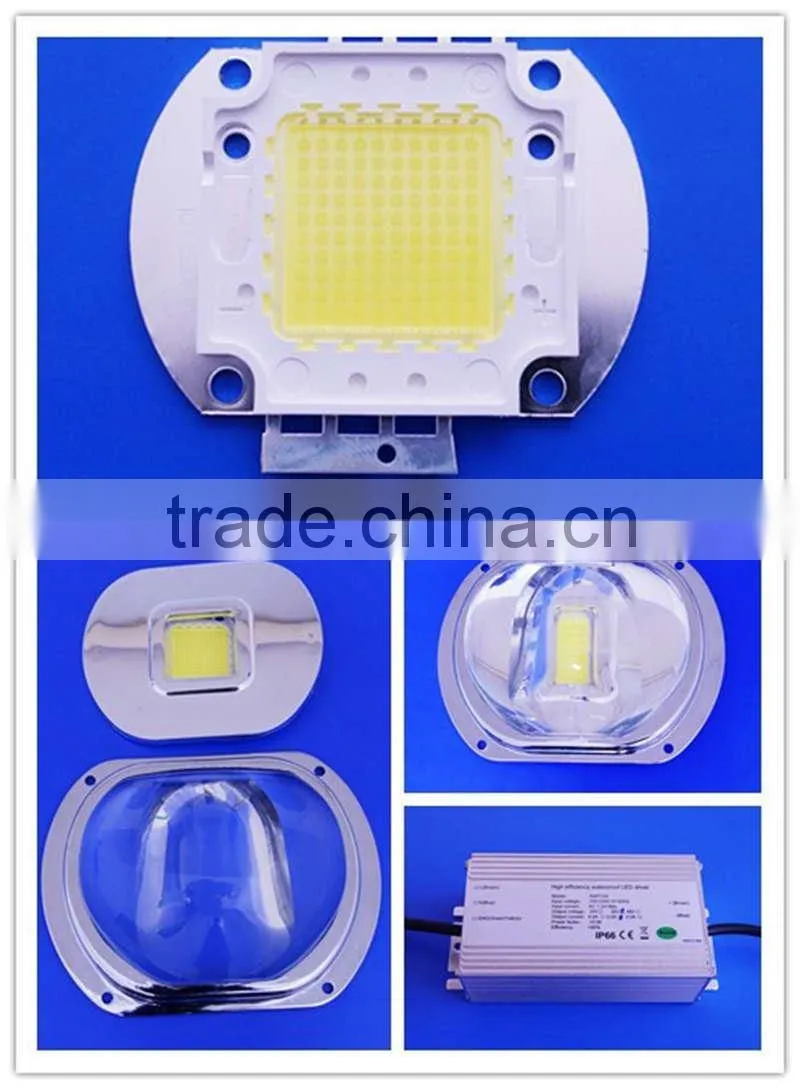

Similar related led products
Features of 50w led street light
*Super high Flux output and high Luminance
*Designed for large current circuit
*Low thermal resistance 12C/W
*Wide viewing angle ,Intergrated package
*ROHS compliant
Applications for 50w led street light
General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Flood lighting,cast light lamps
- Street lamp,Tunnel lamp

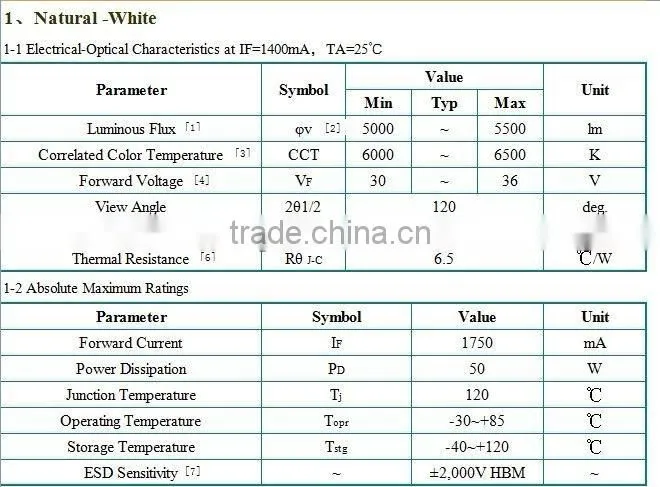

Characteristics for SP50WA
Packing FOR 50w led street light
Production line for 50w led street light:
Company Certificate & Team Training
Why choosing us - SUNSHINEOPTO ?
1. About 5 years specializing in High Power LED industry
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
Trade terms: FOB ,CIF ,CFR ,EXW
Payment terms: T/T IN ADVANCE ,Western Union ,Paypal ,Money gram
Sample time: 1-3 DAYS
Lead time: 3-5 DAYS
Shipment: BY DHL/TNT/FEDEX/UPS/AIR/SEA
Supply capability: 10000pcs/day
Sample availability: (Yes / No)YES
Warranty Service : 2 years
Warranty conditions : For the artificial damage of each product ,we cann't provide new or repair it .If it's our quality problem ,we'll replace or repair it .
