Specifications
1 Watt LED Street Light factory1.90x140degree peanut lens
2.3-3.6V 350mA current
3.100-110lm/watt
4.Low light decay

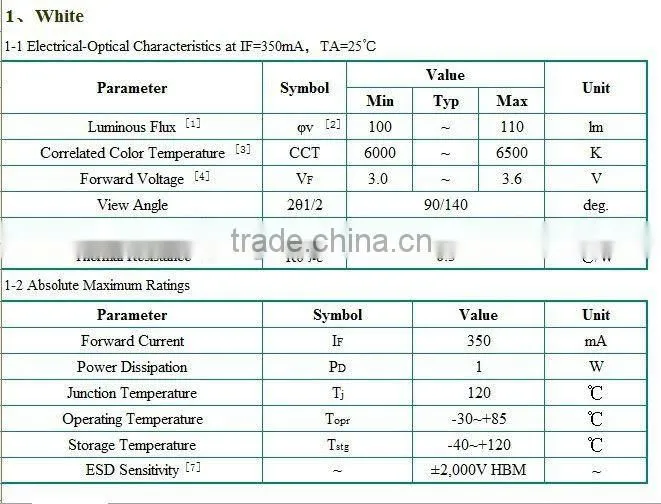

1 Watt led street light 90x140 degree factory
Model :SP1W90X140
Suitable for re-flow soldering technique
Power consumption:1W
Light color: White
lumious flux:100-110lm/W
forward current:350mA
forward voltage:3-3.6V
lens angle: 90x140degree
high brightness,energy conservation,environmental protection

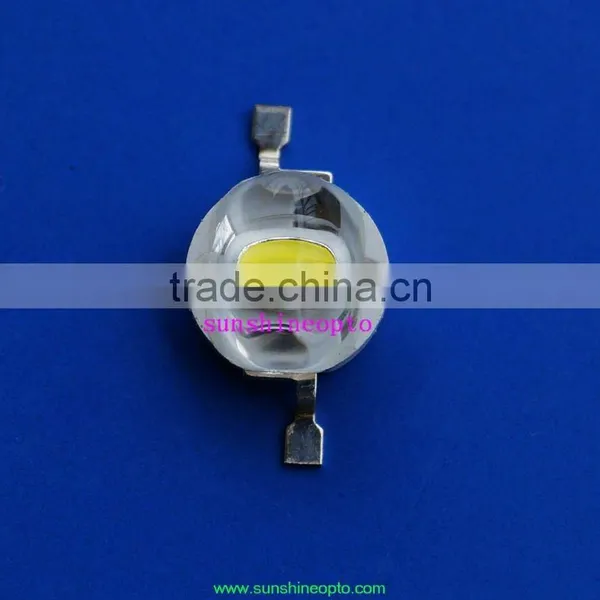

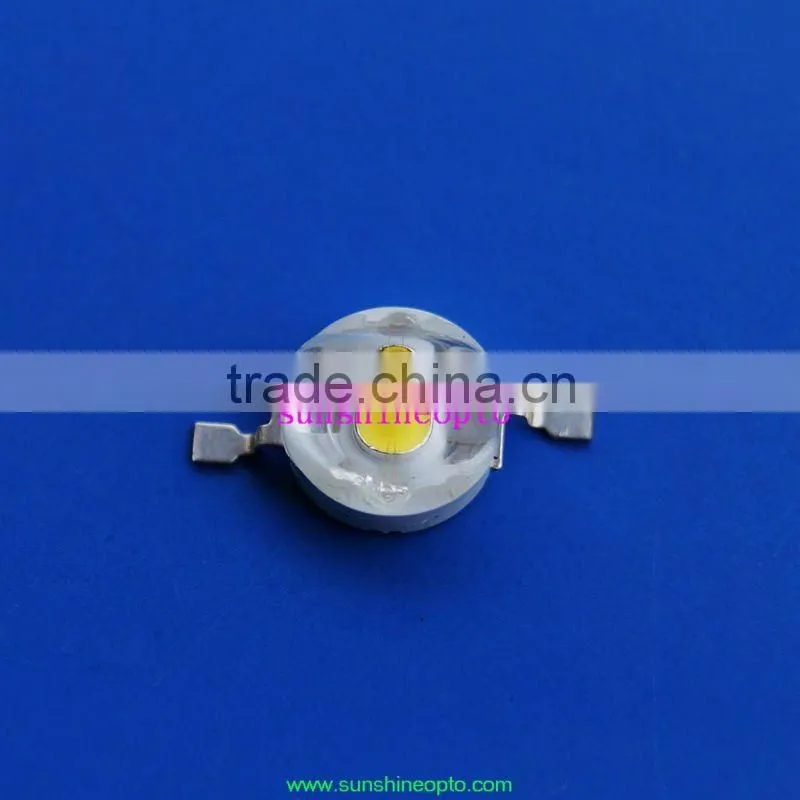

Peanut Shape 1 Watt High Power LED for good quality
1- Chips Brand: Bridgelux, Epistar, Simileds, Taiwan chips
2- High Brightness: 100-110LM
3- High light efficiency: 80-140LM/W
4- Good spot uniformity with silicone molding
5- Low light decay: 1% within 1000 hours and 2% within 3000 hours
6- Excellent product consistency: pure white 500K/grade; warm white200K /grade.
7- Long lifespan: 50,000 hours
Features of Peanut Shape 1 Watt High Power LED street light:
1. No need second distribution with light, design more simple, cost-saving,15% of light loss avoided compared with lens.
2. LED projection range and uniformity in full compliance with "city road lighting design standards" requirement.
3.Low voltage DC operated.Voltage/Current
4.Low thermal resistance
5.UV resistance
6.Superior ESD Protection
7.Lead free product
8.1W high power led peanut shape:RoHS compliant
Applications
spotlight,Flood light ,road lighting,etc...

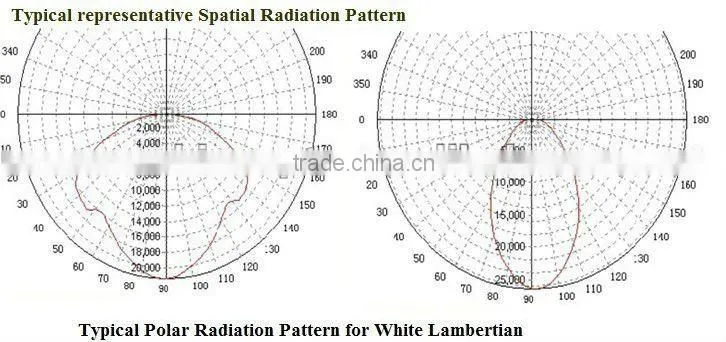

Drawing for Peanut 1 watt high power led street light as following :
