Loose Tube Layer Stranded Fiber Optic Cable GYTA33

Loose Tube Layer Stranded Fiber Optic Cable GYTA33 thumbnail-1
Loose Tube Layer Stranded Fiber Optic Cable GYTA33 photo-1
US$ 0.1 - 5 MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HX
Model Number:
GYTA33
Contact Supplier Request Quote Chat Now
Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HX
Model Number GYTA33

Specifications

Installation: underground,aerial, duct and so on
type: for outdoor




Product Description

   1. Description

  •  Direct buried optical fiber cable,stranded structure.
  •  GYTA33 Outdoor Aerial Optical Fiber Cable with Maximum Fiber Number of 288 Cores
  • Strength Member: Steel wire
  • Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4
 2. Characteristics
  1. Low dispersion and attenuation
  2. Good mechanical and temperature perfermance
  3. High strength loose tube that is hydrolysis resistance
  4. Special tube filling compound ensure a critical protection of fiber
  5. With small cable diameter, light cable weight
  6. Crush resistance and flexibility
  7.  The following measures are taken to ensure the cable watertight:
                     * Loose tube filling compound
                     * 100% cable core filling
                     *  PSP enhancing moisture-proof
3. Optical Characteristics

  G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm     ≤3.0 dB/km ≤3.0 dB/km
(+20°C) @1300nm     ≤1.0 dB/km ≤1.0 dB/km
  @1310nm ≤0.36 dB/km ≤0.40 dB/km
  @1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km

Fiber color code:
Loose tube Layer stranded fiber optic cable GYTA33


Note: A:The color of fiber in loose tube is arranged from NO.1 color successively.
B:Other color indentifications available on request

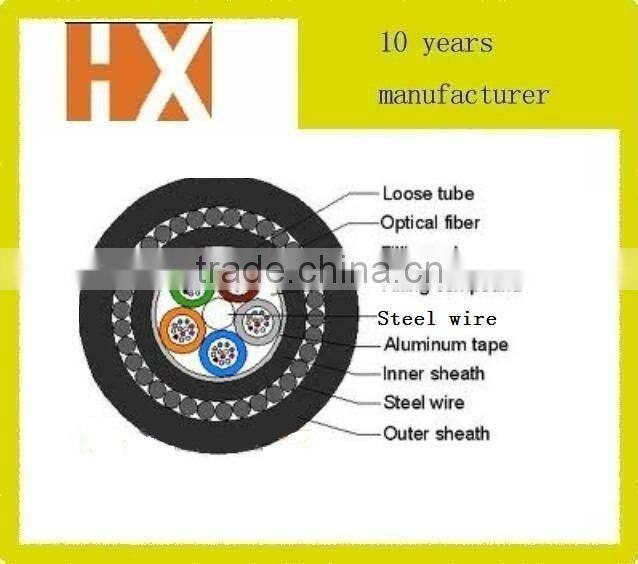

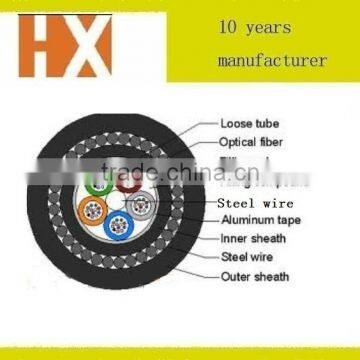

Cable Structure:
Loose tube Layer stranded fiber optic cable GYTA33

4. Technical Parameters
Cable Type Fiber Count Tubes Fillers  Cable Diameter Cable Weight   Tensile Strength Crush Resistance  Bending Radius
 Long/Short Term           Long/Short Term  Static /Dynamic
mm kg/km N N/100mm mm
GYFTA53-2~12 2~12 1 4 15 255 1000/3000 1000/3000 10D/20D
GYFTA53-14 ~24 14~24 2 3 15 255 1000/3000 1000/3000 10D/20D
GYFTA53-26 ~36 26~36 3 2 15 255 1000/3000 1000/3000 10D/20D
GYFTA53-38 ~48 38~48 4 1 15 255 1000/3000 1000/3000 10D/20D
GYFTA53 -50~60 50~60 5 0 15.5 255 1000/3000 1000/3000 10D/20D
GYFTA53-62~72 62~72 6 0 16 255 1000/3000 1000/3000 10D/20D
GYFTA53-74~84 74~84  7  0 16.4  255 1000/3000 1000/3000 10D/20D
GYFTA53-86~96  86~96  8  0 16.6  300 1000/3000   1000/3000 10D/20D
GYFTA53-98~108 98~108  9  0 16.8  300 1000/3000   1000/3000 10D/20D
GYFTA53-110~120 110~120  10  0 17  300 1000/3000 1000/3000 10D/20D
GYFTA53-122~132 122~132  11  0 17.4  300 1000/3000 1000/3000 10D/20D
GYFTA53-134~144 134~144  12  0 17.8  300 1000/3000 1000/3000 10D/20D
... ... ... ... ... ... ... ... ...
GYFTA53-276~288   276~288  12  0 20  300 1000/3000 1000/3000 10D/20D

Packaging & Shipping

5. Packing& Shipping



  1. packing in Wooden drums, Polywooden drums or other drums according to clients' need
  2. shipping by sea or air
Loose tube Layer stranded fiber optic cable GYTA33

Our Services

6. Services

Sample: Can provide by our factory

prist list: can provide by our salesperson

after-sales: one by one

contact:

Skype: Candy.Foo2

Mobile: +0086-13519684370


Company Information

7. Introduction

Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd is a factory who mainly produce optical fiber products:

1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)

2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,waterproof cable etc.)

3.FTTH(bow-type access cable,self-supporting bow-type cable)

4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.

5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter

Loose tube Layer stranded fiber optic cable GYTA33
