Specifications
Installation: underground,aerial, duct and so ontype: for outdoor and indoor
1. Description

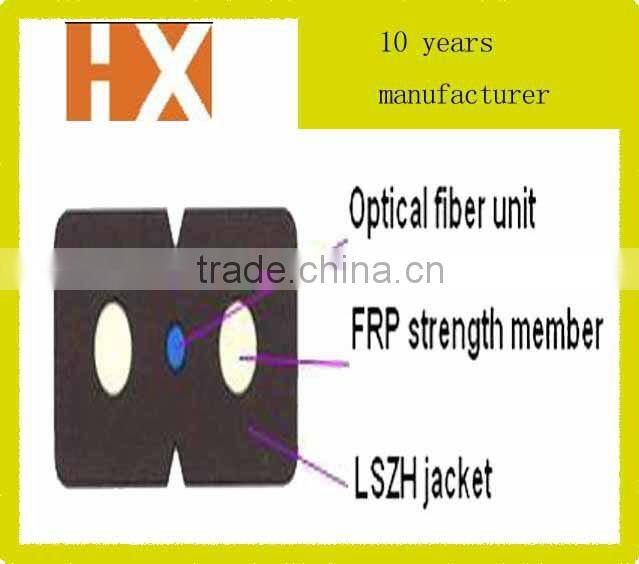

- 2 Cores FRP FTTH Drop Optic Fiber Cable (GJXFH-2B1)
Indoor Fiber Optic Cable
FTTH fiber optic cable - FTTH Drop Optical Fiber Cable: 1core, 2core, 4core
- Strength Member: FRP
- Fiber: can choose SM 9/125: G652D, G657A1, G657A2
- FTTH drop fiber optic cable /FTTH optical fiber cable
- Sheath material LSZH
- GJXFH-2B1 FTTH fiber optical cable
- Sheath color: white or black
- 2 cores in centre
| G.652 | G.657A1 | G657A2 | ||
| Attenuation | @1310nm | ≤0.36 dB/km | ≤0.36 dB/km | |
| (+20°C) | @1550nm | ≤0.22 dB/km | ≤0.22dB/km | |
Applications FTTH Drop Cable
1. Used in indoor cabling
2. Used as drop cable
Feature FTTH Drop Cable
1.The optical fiber cable has small diameter,lightweight,low cost.low construction cost
2.The optical fiber cable is suitable for mechanical splicing technology,fast,and flexible
3.The optical fiber cable uses aromatic polyamide materials to be the strengthen material
4.The optical fiber is the bend insensitive fiber which can meet requirement of ITU-T G.657
5.High-carbon steel wire should be used for Self-supporting strengthen device of optical cable, superior tensile properties contented
| Fiber count | Cable | Tensile Strength | Crush Resistance | Bending Radius | |
| Cable Diameter | weight | Long/short term | Long/short term | Static/Dynamic | |
| mm | kg/km | N | N/100mm | mm | |
| 1 | (2.0±0.2)*(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)*(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 1 | (2.0±0.2)*(3.8±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)*(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
5. Packing& Shipping

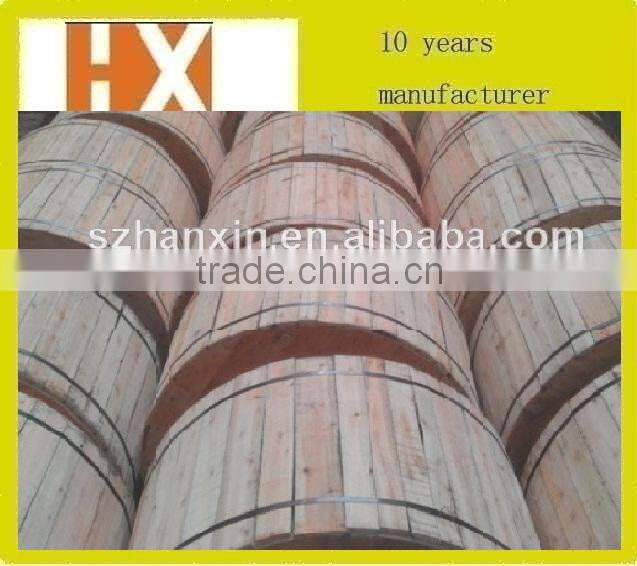

- packing in Wooden drums, Polywooden drums or other drums according to clients' need
- shipping by sea or air
6. Services
Sample: Can provide by our factory
prist list: can provide by our salesperson
after-sales: one by one
contact:
Skype: Candy.Foo2
Mobile: +0086-13519684370
7. Introduction
Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd is a factory who mainly produce optical fiber products:
1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)
2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,waterproof cable etc.)
3.FTTH(bow-type access cable,self-supporting bow-type cable)
4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.
5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter
8. Certificate
