Help CenterCar Bumper Manufacturing Machine , Blow Moulding Machine Produce Car Spoiler
Related Products
-
Car Spoiler Manufacturing Machine , Blow Moulding Machine Produce Car SpoilerNegotiableMOQ: 1 Set -
Road Barrier Blow Moulding Machine ManufacturersUS$ 80,000 - 124,000MOQ: 1 Set
-
Plastic Road Barrier Moulding Process/ Inject Blow Molding Machine Hdpe BarrierUS$ 80,000 - 124,000MOQ: 1 Set
-
Blow Moulding Plastic Barriers/ Extrusion Blow Moulding Machine for Road BarrierUS$ 80,000 - 124,000MOQ: 1 Set
-
Plastic Road Barrier Moulding Machine, Plastic Barrier Blow Moulding MachineUS$ 80,000 - 124,000MOQ: 1 Set
The car bumper manufacturing machine is used to make abs car hollow products , A wide variety of materials can be used for the machine, which are suitable for producing 10-30L PE bottle. Extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical parts.
1. The screw adopts high potency melt to make sure the material well mixed.
2. Adopt frequency control of motor system to reduce the power consumption.
3. Adopt horizontal movement frame to improve stability and speed.
4. The oil cylinder is in the center of the moldboard, uniform stress for quality products and increase life span.
5. High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.
6. The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.
7.Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.
8. The precise time control system assured good quality, suitable weight and reduces production cycle.
9. Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.
10. Multi-function bottom blowing type for shaped products.
11. The mechanical arm can take out the product automatically.
Plastic car spoiler moulding machine parameter
Item |
Code item |
Parameter |
Note |
|
Extruder (Main extruder ) |
Max capacity |
160L |
|
Main screw |
Ø100mm |
High efficiency mixing |
|
Screw L/D |
25-30 |
|
|
Screw material |
|
38CrMoALA |
|
Max.Extruder consumption |
180-250KG/hr |
|
|
Twisting transition method |
Electrical machinery,Gear box,AC motor |
Hard gear surface decelerator with AC regulator |
|
Driving motor |
55KW |
|
|
Screw rotate speed |
5-60r/min |
|
|
Ahead/back adjusting |
Yes |
|
|
Up/ down adjusting |
Yes |
|
|
Temperature control zone |
5 |
|
|
Heating power |
22kw |
|
|
Cooling for blower |
5 |
|
|
Cooling function |
Yes |
Cooling water |
|
|
Clamping unit (Mold openiing/closing unit) |
Structure |
|
With three bar timing clamping structure in high speed and high force,to achieve quality products |
Clamping directions |
Linear guide |
For high precise location for longer service life |
|
Platen dimension |
1100*1100mm |
(W*H) |
|
Max.mold dimension |
900*1400mm |
(W*H) |
|
Platen distance |
600-1400mm |
Min.-Max. |
|
Clamping force |
360-560KN |
|
|
Mold thickness stroke |
610-750mm |
|
|
Fixing pattern of mold |
Mold press platen |
|
|
Mold open/close stroke control |
Inducing Switch +moving |
Discriminate mold opening/closing end,mold opening/closing slow speed |
|
Light Electric Safety protect |
|
Taiwan |
|
Die head |
Form |
Accumulator |
First in ,First out |
Material |
|
38CrMoALA,inner mirror treatment |
|
Accumulator volume |
18L |
|
|
Output of injecting |
13kg |
HDPE,5502 |
|
Max die-pin diameter |
450-510mm |
|
|
Heating Method |
|
Stainless steel heating ring,precision +1% |
|
Temperature control zone |
5 |
|
|
Blow-air |
Yes |
|
|
Adjusting of parison thickness |
Yes |
MOOG 100 point |
|
Adjusting method of thickness |
Inner mold adjusting+5mm |
|

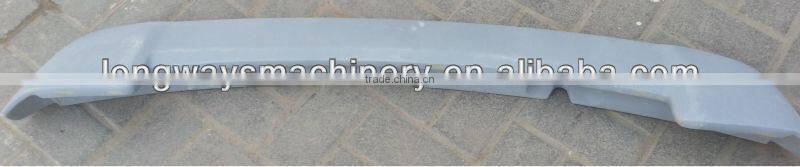

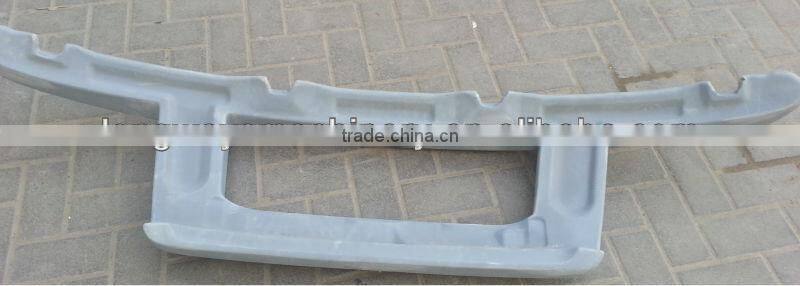

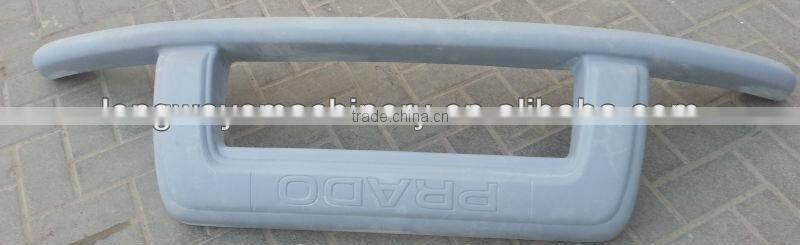

Product which made by this car spoiler blow molding machine.
Plastic car spoiler moulding machine die head

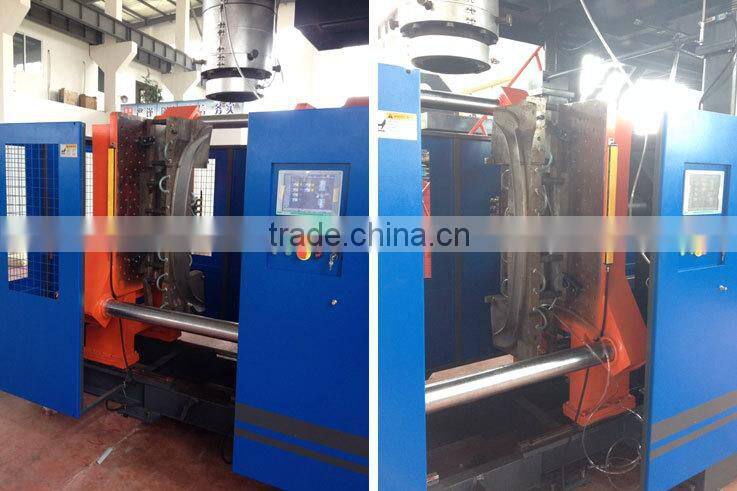

Plastic car spoiler moulding machine clamping system
Plastic car spoiler moulding machine screw
car bumper blower electric parts
Plastic car spoiler moulding machine spare parts.
Plastic car spoiler moulding machine component brand
Any inuqiry about car bumper blower , blow molding machine for car spoiler, extrusion blowing machine for ABS car spoiler , please contact us! Thanks!
