plastic shampoo bottle making machine / single station blow moulding machine for shampoo bottle
- 50 Set / Sets per Month
- Shanghai
- T/T
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Other, PE bottle, jerrycan | Plastic Processed: | Other, PE, PP, PVC, PC, ABS |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Jiangsu, China |
Brand Name: | LONGWAYS | Model Number: | LWB55D | Voltage: | 380V,440V,415V,220V |
Power(W): | 36KW | Dimension(L*W*H): | 2900*2100*2500MM | Weight: | 3T |
Certification: | CE | Warranty: | 24 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

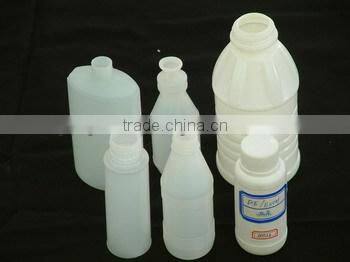

This is high production plastic shampoo bottle making machine, A wide variety of materials can be used for the machine, which are suitable for producing 100ml to 3L PE shampoo bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
plastic shampoo bottle making machine production process
plastic gallon blow molding machine specification
Unit | Item | Specification | Description |
Extruding system
| Screw diameter | Φ55mm | Mixing model |
Max. Product Volume | 3L | Double station and single die-head | |
Screw L/D | 24:1 |
| |
Material of screw and barrel |
| 38CrMoALA | |
Plasticizing capacity | 45KG/Hr | Based on HDPE 5502 | |
Extruding method |
| Inverter motor, hardness tooth surface gear box | |
Driving power | 15KW |
| |
Screw revolution | 10—90rpm |
| |
Heating zones | 3 | Temperature module from Mitsubishi PLC | |
Heating power | 10KW | Solid state (SSR) and plug connection for all heaters | |
Blowers | 3 |
| |
Cooling function | Yes | Cooling water for feeding zone and gear box |
plastic gallon blow molding machine extruder- die head
plastic gallon blow molding machine plastic plasticing part
plastic gallon blow molding machine product making step
Zhangjiagang plastic blow molding machine, component brand
Zhangjiagang plastic blow molding machine, loading
Any inuqiry about Zhangjiagang plastic blow molding machine, , blow moulding machine, please contact us! thanks!
