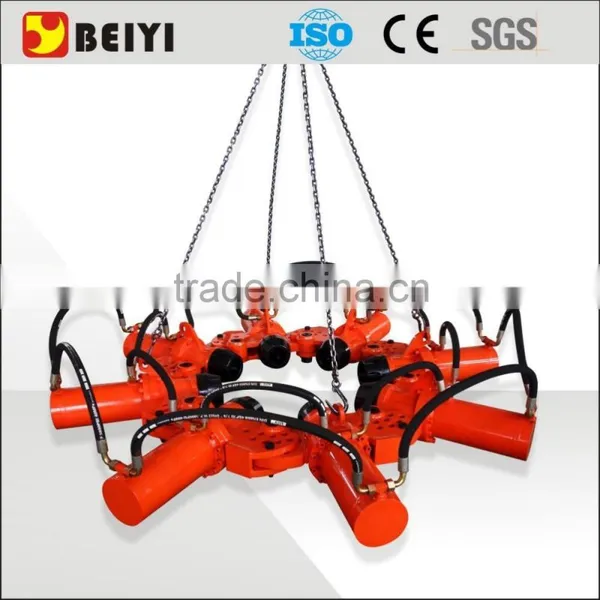

Hydraulic pile breaker for round concrete piles
Are you tired to break the piles by manpower?
Dangerous , Slowly , Noisy , Expensive salary and so on.
Don’t worry. BEIYI MK180S pile breaker for cutting concrete pillar will help you!
| Your problems | How can we solve it? |
| Dangerous | 1.Contact-free operation. |
| 2.no impact force on the pile parent body and bearing capacity. | |
| Slowly | 1.Replaceable and changeable module combination into various diameters. |
| 2.The modules can be assembled and disassembled easily and conveniently. | |
| Noisy | full hydraulic drive with little noises |
| Expensive salary | 1.Easy to install and handle,save labor cost. |
| 2.Suitable for different kinds of excavator or crane. | |
| 3.Module generalization is realized with our MK180 and BYP500S/600S square pile machine by changing the module combination | |
| Nondurable | 1. Made of military material by first-class suppliers with reliable quality, extending its service life. |
| 2.The mainboard uses Q345B and chisel uses 42CrMo. |

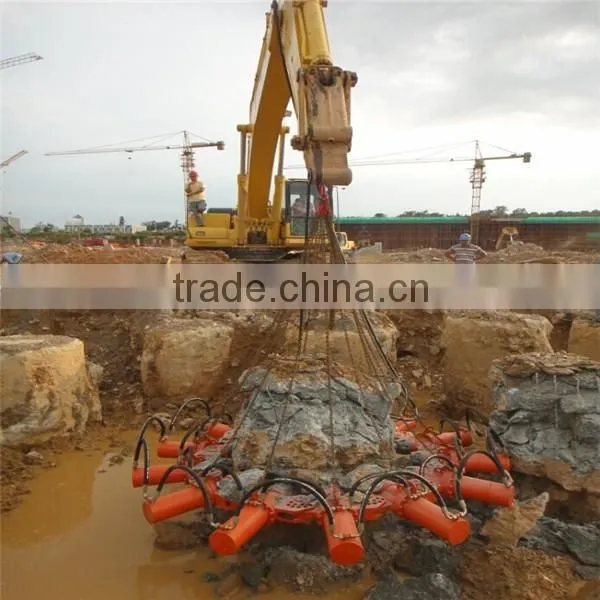

Applications: We complete project outdoor with high efficiency and much safty.
High efficiency!Save much more time!
| Max. Thrust | 300KN | Max. Cylinder Required | 20L/min | Machinery Tonnage |
≥20t | |||||
| Max. Cylinder Trip | 250mm | Quantity / 8h | 80/8h | Single Module Weight | 278KG | |||||
| Max. Cylinder Pressure | 30Mpa | Max. Hoist Capacity | ≤500mm | Single Module Size | 885*780*340 | |||||
| Module Number | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |
| Combination total weight | KG | 2200 | 2475 | 2750 | 3025 | 3300 | 3575 | 3850 | 4125 | 4400 |
| Pile diameter range | mm | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1460-1970 | 1620-2140 |
Pile Breaker Advantage
1.It's the most advanced pile breaker and can achieve high efficiency,low noise in pile broken.
2.It has the advanced modularization and break diffirent diameter pile by diffirent number of modular combination
3.It has high cost performance ,low operating cost and its cost performance is nearly the same with the foreign products
4.Its operates easily and don't need any professinal skill ,besides ,it operates very safely
5.It can be connected to a variety of engineering machinery to make achieve products commonality and economical efficiency .it also can be hanged in the excavators ,cranes and telescopics arm,ect.
6.High life design can bring you' the best benefits
Give us
1.model of excavator
2.shape of pile
3.diameter of pile
4. cement standard(decide operation life of pile breaker

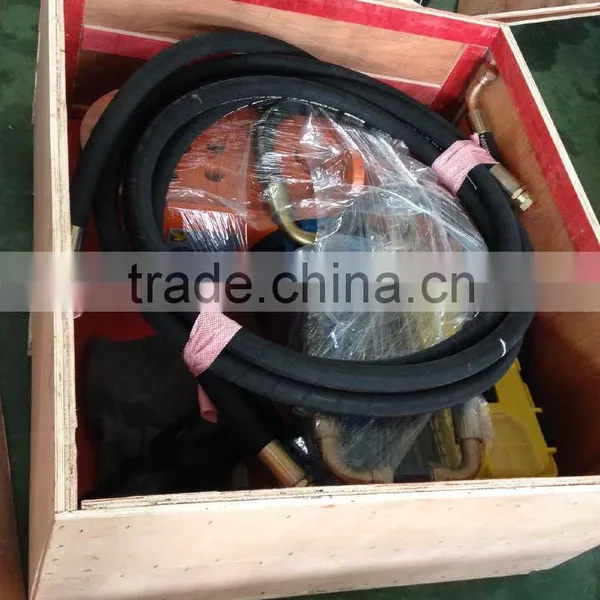

Paking & Shipping
*We accept L/C T/T and other payment terms according to actual situations. |
*We accept different shipping lane, air express by DHL,FEDEX,TNT,EMS... |
*The product delivery will be strictly on time. |
*If you are interested in us or our products, welcome to contact us and visit our company. |
*We will keep in touch with you to follow up the product's detail service situation and accept compliants, |
*clearly record and maintain it for further reference. |
