Dust Collector Cyclone Silo for Grain Processing Industry
SRON Concentrates On Ceological Civilization With Dedusting Systems |
- Mainly used for grain steel silo unloading systems and cleaning systems dedusting.
- It can also be used to transform the dusting polluting industrial equipment.
- Professional manufacturer of industrial dust removal equipment in China—Pay attention to ecological civilization, build beautiful project. (dust collector cyclone)

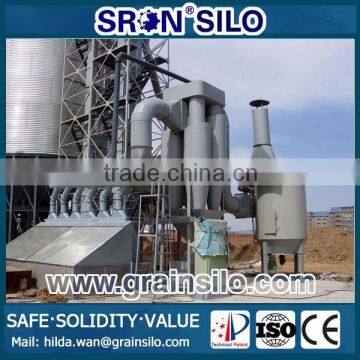

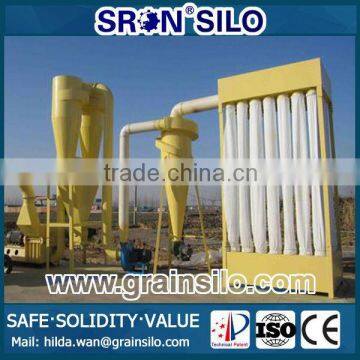

Brief Introduction of SRON Whole Dedusting Systems |
- Dedusting fan generates pressure on the whole dust pipeline, dusty air from the hood into the pipeline.
- Dusty air comes to SHAQ firstly, large dust particles will be filtered.
- Tiny dust air discharged from SHQA top, then enter pulse dust filter. Tiny particles dust and air are separated in filter. Cleaning air comes out directly via filter top air bleeder. (dust collector cyclone)
Brief Introduction of SRON SHAQ |
- Made in thick steel plate, small volume. Usually used as a pre-filter to remove large particles, heavy particles of dust before more efficient dust removing. Can be used more than one in combination together.
- Dusty air flow into the gas chamber through the inlet and rotate high-speed in the gas chamber. Since dust big mass and centrifugal force, so dust is left behind to the inner wall of the outermost gradually lowered, and excluded from the bottom of SHAQ. (dust collector cyclone)

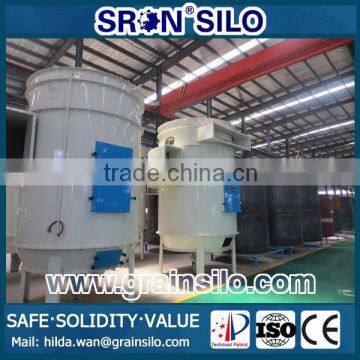

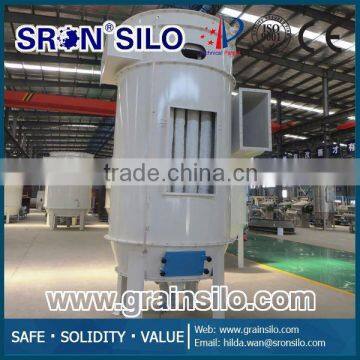

Brief Introduction of SRON Pulse Filter |
Usually used for dusty air temperature below 80 °C of dust removing, separating operations with proper low tension 0.05mpa technology blowing dusting.
Technology Specifications:
- Improve filter bag design, stronger pressure, no leakage exists.
- Electromagnetic valve control air bubble, no mechanical wear and error.
- Blowing electric three-way streamline design, little blowing resistance, blowing acceleration, clean bags effectively.
- With hopper dust remover, cleaning more effective. (dust collector cyclone)
Model |
Filter Bag Length (mm) |
Airflow (m3/h) |
Filtering Surface m2) |
Power (kw) |
TBLM-39 |
2000 |
1722-8610 |
28.7 |
1.1+1.5+2.2 |
TBLM-52 |
2000 |
2292-11460 |
38.2 |
1.1+1.5+2.2 |
TBLM-78 |
2000 |
3538-17190 |
57.3 |
1.1+1.5+3 |
TBLM-104 |
2000 |
4590-22950 |
76.5 |
1.1+1.5+3 |

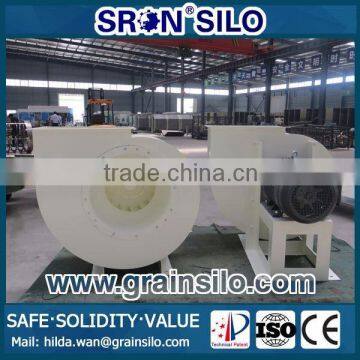

Brief Introduction of SRON T4-72 Centrifugal Fan |
- Centrifugal fan usually used for grain depot ventilation, cooling and dedusting.
- With continuous and reliable, stable operation, easy maintenance, high efficiency, low power consumption, low noise characteristics. (dust collector cyclone)
T4-72 Centrifugal Fan Main Technology Parameter:
Model |
Airflow (m³/h) |
Power (kw) |
Revolving Speed (r/min) |
T4-72-4A |
7160-3800 |
5.5 |
2900 |
T4-72-4.5A |
10700-5820 |
7.5 |
|
T4-72-5A |
14710-8010 |
11 |
|
T4-72-6A |
22180-9828 |
22 |
|
T4-72-6C |
4000-20426 |
1.5-15 |
900-2240 |
Advanced Production Equipment for Dedusting Systems Manufacturing |
Standing on our strong integral solution design power, SRON’ s rich manufacturing expertise guarantees the best workmanship of the whole silo system. The bolt steel plate production line is imported assuring bolt plates high precision and max sealing bolt connection. Advanced lathe workshop. (dust collector cyclone)
Part of Respected Customers Visit, Your Join Is Warmly Expected |
Email SRON, Get Professional Dedusting Systems Solution Immediately!
