Home > Products > Grain Handing Equipment > Hign Quality Dust Collector Bag
Hign Quality Dust Collector Bag
- 100 Set / Sets per Month
- Qingdao
- Best selling oil mist collection centrifugal oil mist collector for CNC machines
- Ventilation cleaning equipment, negative pressure cyclone dust collector
- LIVTER Factory High Power Wood Dust Collector Industrial Dust Sawdust Collector Engraving Machine Dust
- LIVTER Dust Collector Bag Industrial Woodworking Dust Collector Cyclone
- LIVTER Cyclone Dust Separator With Filter Bag Dust Collector Woodworking Wood Dust Collector
- LIVTER Industrial Cyclone Cartridge Dust Collector For Woodworking Machine
Product Details
Condition: | New | Type: | Other, Dedusting Systems for Grain Silo Project | Efficiency: | >95% |
Minimum Particle Size: | tiny | Place of Origin: | Henan, China | Brand Name: | SRON Brand |
Model Number: | SRON Dedusting Systems | Dimension(L*W*H): | As Per Size of Dedusting Systems | Weight: | As Per Size of Dedusting Systems |
Certification: | ISO Certified | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Customized Environment Friendly Dedusting Systems for Grain Silos Project
SRON Concentrates On Ceological Civilization With Dedusting Systems |
- Mainly used for grain steel silo unloading systems and cleaning systems dedusting.
- It can also be used to transform the dusting polluting industrial equipment.
- Professional manufacturer of industrial dust removal equipment in China—Pay attention to ecological civilization, build beautiful project. ($k1$)
Brief Introduction of SRON Whole Dedusting Systems |
- Dedusting fan generates pressure on the whole dust pipeline, dusty air from the hood into the pipeline.
- Dusty air comes to SHAQ firstly, large dust particles will be filtered.
- Tiny dust air discharged from SHQA top, then enter pulse dust filter. Tiny particles dust and air are separated in filter. Cleaning air comes out directly via filter top air bleeder. ($k1$)
Brief Introduction of SRON SHAQ |
- Made in thick steel plate, small volume. Usually used as a pre-filter to remove large particles, heavy particles of dust before more efficient dust removing. Can be used more than one in combination together.
- Dusty air flow into the gas chamber through the inlet and rotate high-speed in the gas chamber. Since dust big mass and centrifugal force, so dust is left behind to the inner wall of the outermost gradually lowered, and excluded from the bottom of SHAQ. ($k1$)

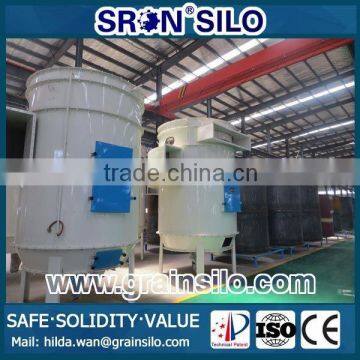

Brief Introduction of SRON Pulse Filter |
Usually used for dusty air temperature below 80 °C of dust removing, separating operations with proper low tension 0.05mpa technology blowing dusting.
Technology Specifications:
- Improve filter bag design, stronger pressure, no leakage exists.
- Electromagnetic valve control air bubble, no mechanical wear and error.
- Blowing electric three-way streamline design, little blowing resistance, blowing acceleration, clean bags effectively.
- With hopper dust remover, cleaning more effective. ($k1$)
Model | Filter Bag Length (mm) | Airflow (m3/h) | Filtering Surface m2) | Power (kw) |
TBLM-39 | 2000 | 1722-8610 | 28.7 | 1.1+1.5+2.2 |
TBLM-52 | 2000 | 2292-11460 | 38.2 | 1.1+1.5+2.2 |
TBLM-78 | 2000 | 3538-17190 | 57.3 | 1.1+1.5+3 |
TBLM-104 | 2000 | 4590-22950 | 76.5 | 1.1+1.5+3 |

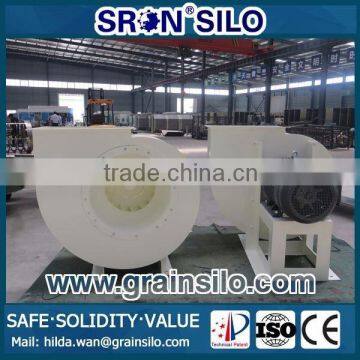

Brief Introduction of SRON T4-72 Centrifugal Fan |
- Centrifugal fan usually used for grain depot ventilation, cooling and dedusting.
- With continuous and reliable, stable operation, easy maintenance, high efficiency, low power consumption, low noise characteristics. ($k1$)
T4-72 Centrifugal Fan Main Technology Parameter:
Model | Airflow (m³/h) | Power (kw) | Revolving Speed (r/min) |
T4-72-4A | 7160-3800 | 5.5 | 2900 |
T4-72-4.5A | 10700-5820 | 7.5 | |
T4-72-5A | 14710-8010 | 11 | |
T4-72-6A | 22180-9828 | 22 | |
T4-72-6C | 4000-20426 | 1.5-15 | 900-2240 |
Advanced Production Equipment for Dedusting Systems Manufacturing |
Standing on our strong integral solution design power, SRON’ s rich manufacturing expertise guarantees the best workmanship of the whole silo system. The bolt steel plate production line is imported assuring bolt plates high precision and max sealing bolt connection. Advanced lathe workshop. ($k1$)
Part of Respected Customers Visit, Your Join Is Warmly Expected |
Email SRON, Get Professional Dedusting Systems Solution Immediately!
Contact: Hilda Wan
Tel/APP: 0086+15827569971
Skype: sronsilo08 AT
Email: hilda.wan AT
