kerry solar dc pump widely used in landscaping and horticulture

Specifications

1)2012 Hot Sell Solar DC PV Water Pump
2)10L/min.20, 000 hours working life
3) Brushless, low consumption,low noise,mini

              DC solar system brushless water pump S2480-20



About us



Changge KaiRui Electromechanical Co., LTD. (the former Changge summer cool automobile water pump factory, which founded in 2008), it locates in Changge industrial park . Our company is a high-tech enterprise which specialized in r&d, production and sales of new energy products. We mainly operate solar power systems, solar panels, pv pumps, brushless DC pumps, brushless DC controllers and other new energy products.

At present our production of brushless dc pump series products are exported to include Europe, North America, South America, South Asia and so on more than 50 countries and regions.



We can supply:

Brushless DC solar pump without inverter and controller.



Voltage: 24V

Flow rate:10L/min and 45L/min

Head: 10-100M

Material: Stainless steel body,High quality

Power:120W~2000W

Intake:76mm

Outlet: 32mm--25mm--20mm

Protection class: IP68

Rotation speed:18000/rpm



System benefits:

1.By CE Certification

2.DC input, wide voltage(working voltage: 22 ~ 42V)

3.Built-in MPPT which can make the best use of solar energy.

4.The pump can be directly connected to solar panels in sunshine without controller.

5.The pump include Over-voltage protection / Under-voltage protection / Over-current protection / Over-load protection/ boil-dry protection

6.Environmental protection, achieve zero carbon dioxide emissions.

7.Solved the water shortage problems of the area without electricity









Brushless DC solar water pump

Feature:

1. Life: Expected life span is at least 20000 hours.

2. Low noise: 40dB, far from 1 meter distance.

3. Duty work: The pump can sustain heavy duty work for a day. Continuous operation.

4. Working conditions: Applying to indoor and outdoor under temperature 40degC.

5. Working temperature: Within 75 degC.

6. It is waterproof and submersible.

Application:

1. Solar water circulating system. Agricultural irrigation.

2. Daily water supply, forest irrigation, city water scene, aquarium.

3. Landscape fountain, grassland stockbreeding.

4. Water supply equipment in any possible places.

Solar pump function: Pump connect solar controller and solar panel can be used: 1. Solar panel: Using mono/poly silicon solar cells encapsulated with toughened glass. Solar panel absorption sunshine supplies the power to pump  2. Controller: Design for solar pump. Have over-charge and over discharge protection function: Specification:

Model Working Voltage Working Current Static lift Static flowrate Power Cable length S2480-30 24VDC 17A 30m 45 L/min 408W 5m The tolerance of technical parameters above is ±10% Remarks: The technical parameters above is only for your reference, for more details, please feel free to contact us Structure dimensions Model Size(mm) Inlet OD(mm) Outlet OD(mm) Temp Remarks S2480-30 76*700 76 32 60degC submersible

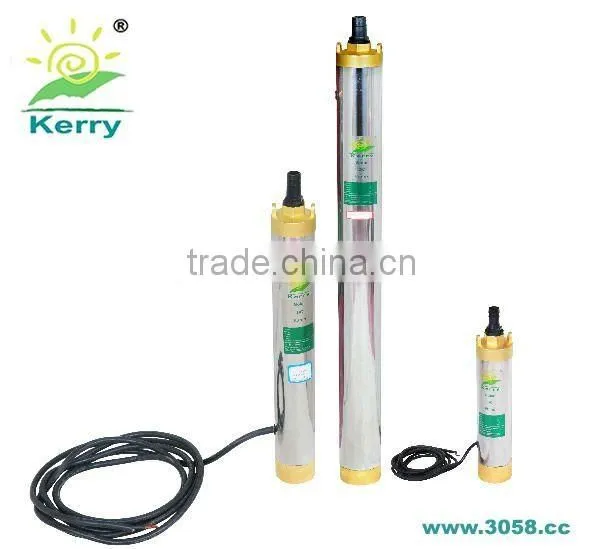

 Appearance

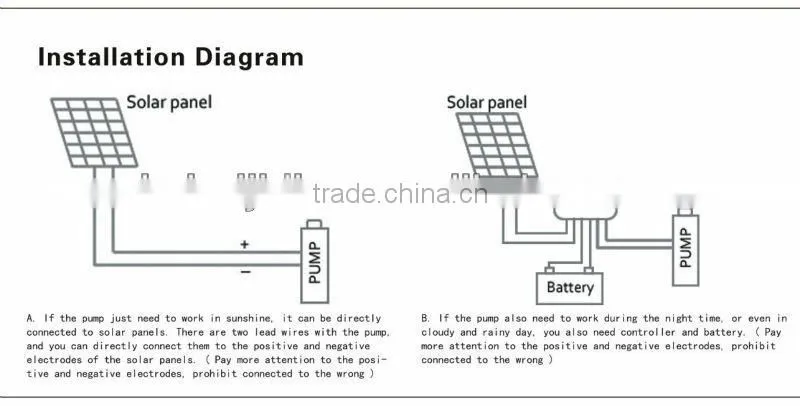

Installation Diagram

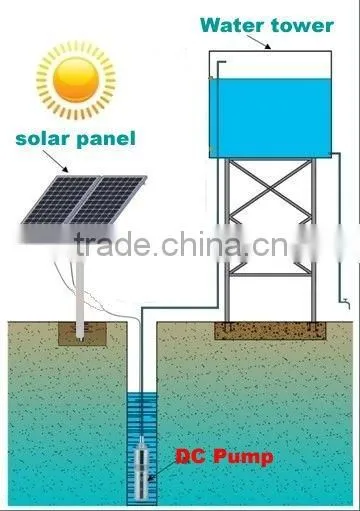

 Application
