Agricultural Centrifugal Spray Pump ,Dc Solar Pump

Agricultural Centrifugal Spray Pump ,Dc Solar Pump thumbnail-1
Agricultural Centrifugal Spray Pump ,Dc Solar Pump photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Kerry
Theory:
Centrifugal Pump
Contact Supplier Request Quote Chat Now
Changge Kairui Electromechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Kerry
Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, solar
Pressure High Pressure
Application Submersible

Specifications

1) The motor and the pump united as one
2)45L/min.20, 000 hours working life
3) Brushless, low consumption, low noise, mini

agricultural centrifugal spray pump ,Dc solar pumpagricultural centrifugal spray pump ,Dc solar pumpagricultural centrifugal spray pump ,Dc solar pump

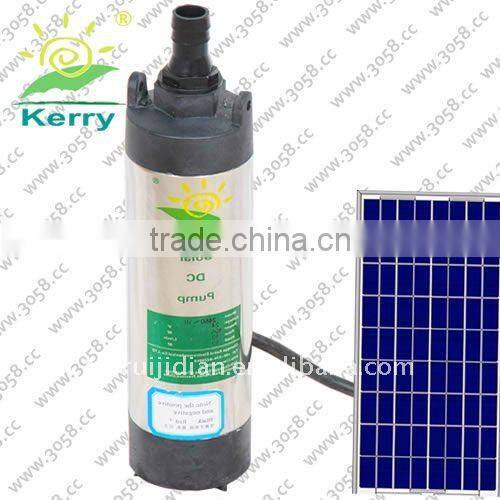

Brushless DC Solar Water Pump

Feature:

1. Life: Expected life span is at least 20000 hours.

2. Low noise: Within 40dB, far from 1meter distance.

3. Duty work: The pump can sustain heavy duty work for a day. Continuous operation.

4. Working conditions: Applying to indoor and outdoor under temperature 40degC.

5. Working temperature: Within 75 degC.

6. It is waterproof and can be submersible.



Application:

1. Solar water circulating system.

2. Village or family water supply

3.Animal drinking water and livestock watering

4. Garden /contrary irrigation

5. Water supply for remote areas

Solar pump function:

Pump connect solar controller and solar panel can be used:

1. Solar panel: Using mono/poly silicon solar cells encapsulated with toughened glass. Solar panel absorption sunshine supply the power to pump

2. Controller: Design for solar pump. Have over-charge and over discharge protection function



More information about parameters: /3058/English/zl.asp

Specification:

Model

Working voltage

Working current

Static lift

Static flow rate

Power

Cable length

1280-10

12VDC

7.5A

10m

45 L/min

90W

 2m

2480-15

24VDC

10A

15m

45 L/min

240W

 2m

4880-15

48VDC

5A

15m

45L/min

240W

 2m

1260-15

12VDC

11.5A

15m

10L/min

138W

 2m

2460-15

24VDC

5.3A

15m

10L/min

127.2W

 2m

4860-15

48VDC

3A

15m

10L/min

144W

 2m

 The tolerance of technical parameters above is ±10%

Remarks: The technical parameters above is only for your reference, for more details, please feel free to contact us

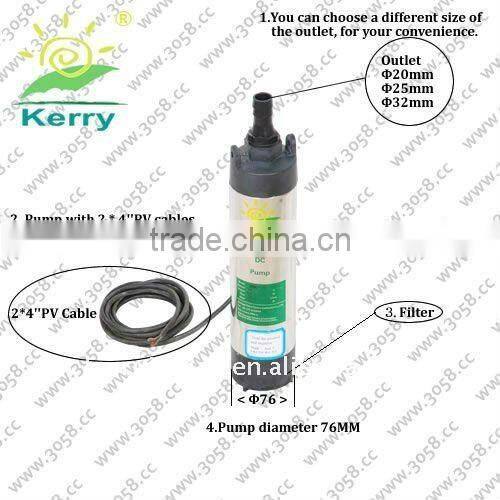

Structure dimensions:

Model

Dimension(mm)

Inlet

Outlet

Temp

Remarks

60 series 15m

80 series 15m

76*350

76mm

32mm

≤75degC

submersible

76*470
