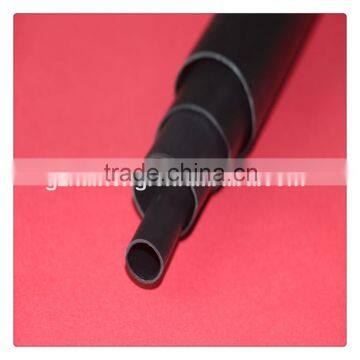

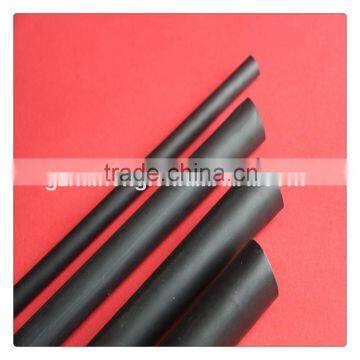

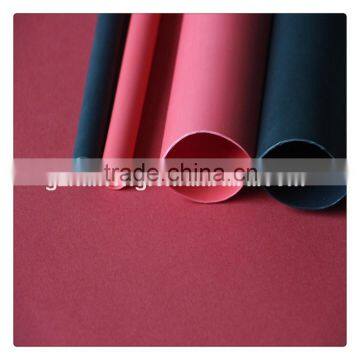

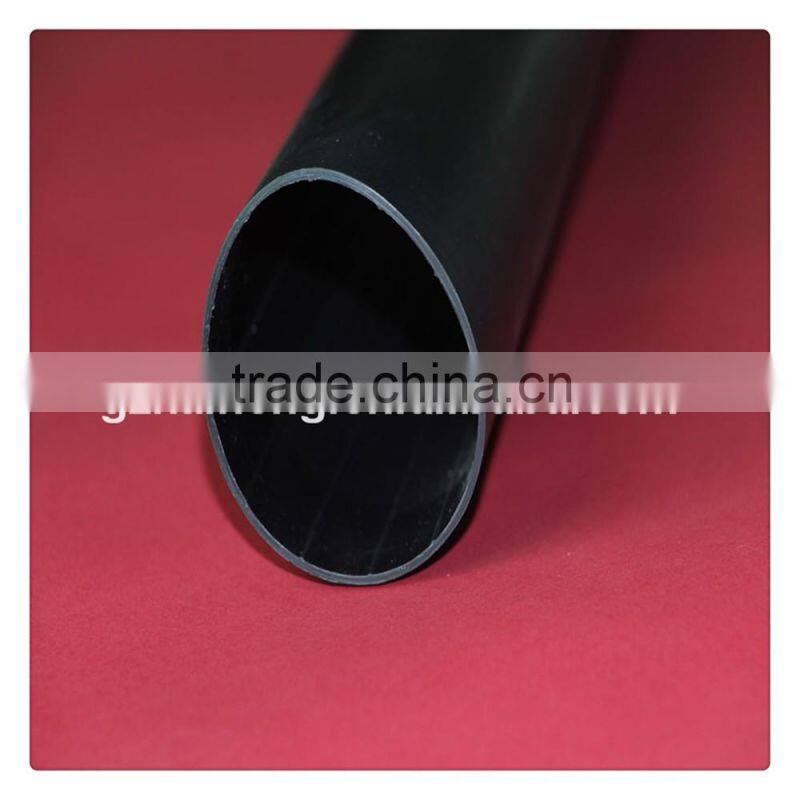

Heavy wall heat shrink tube with hot melt adhesive
Applications for heat shrink tube
Designed with large expansion ratio and hot melt adhesive, which provides maximum reliability for insulation and protection to cable joints and terminations,and high abrasion and corrosion resistance for applying in communication cable and chemical pipe.
Features for heat shrink tube
- Easily fit over irregular shape and large connectors
- Resistant to UV and excellent electrical insulation
- Withstands severe mechanical requirements
- Operating temperature: -55℃ to 110℃
- Minimum shrink temperature:80℃
- Minimum fully recovery temperature:120℃
- Standard color: Black
- With or without thermopaint
Technical Data
Property |
Test Method |
Typical Data |
Operation temperature |
IEC 216 |
-55℃to110℃ |
Tensile strength |
ASTM D 2671 |
≥14MPa |
Elongation at break |
ASTM D 2671 |
≥400% |
Density |
ASTM D 792 |
1.05g/cm3 |
Longitudinal shrinkage |
UL 224 |
0 to10% |
Volume resistance |
IEC 93 |
>1014Ω.cm |
Eccentricity |
ASTM D 2671 |
≤30% |
Copper stability |
ASTM D 2671 |
Pass |
Product Dimensions
|
Normal size (mm) |
As supplied (mm) ID(Min.) |
After recovered (mm) ID (Max.) |
Wall thickness (mm)(Min.) |
|
9/3 |
9 |
3 |
1.8 |
|
13/4 |
13 |
4 |
2.4 |
|
22/6 |
22 |
6 |
2.7 |
|
33/8 |
33 |
8 |
3.2 |
|
40/12 |
40 |
12 |
4.1 |
|
45/12 |
45 |
12 |
4.1 |
|
55/16 |
55 |
16 |
4.1 |
|
75/22 |
75 |
22 |
4.1 |
|
85/25 |
85 |
25 |
4.3 |
|
95/30 |
95 |
30 |
4.3 |
|
115/34 |
115 |
34 |
4.3 |
|
130/36 |
130 |
36 |
4.3 |
|
160/50 |
160 |
50 |
4.3 |
|
180/50 |
180 |
50 |
4.3 |
|
200/60 |
200 |
60 |
4.3 |
|
235/65 |
235 |
65 |
4.5 |
|
265/75 |
265 |
75 |
4.5 |
|
300/85 |
300 |
85 |
4.5 |
|
350/100 |
350 |
100 |
4.5 |
|
Model KHDW for Heavy wall tube with adhesive
Model KHW for Heavy wall tube without adhesive
Standard Packing: 1.22 meter/PCS, special size, Cutting pieces are available on request.
Standard Packing for heat shrink tube:1.22m/pcs,and packing in KOSOO standard carton.
Guangzhou Kaiheng K&S Co.,Ltd is a major supplier of Heat shrinkable tubing offering good quality products at competitive price.We are specialized in this filed for over 15 years.We manufacture and distribute a broad range of heat shrinkable tube,PVC tube.Trademarked as KOSOO. Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
