Help CenterPE Material Medium Wall Heat Shrink Tube With Hot Melt Adhesive
Related Products
-
PE Material and Heat Shrinkable Type Electrical 600V Heat Shrink SleeveUS$ 0.1 - 5MOQ: 1000 Meters -
Very Professional Manufacturer Heavy Wall Heat Shrink Tubing for WholesaleUS$ 0.1 - 5MOQ: 1000 Meters
-
PE Material Black Medium Wall Heat Shrink Tube With Hot Melting AdhesiveUS$ 0.2 - 1.5MOQ: 500 Meters
-
KOSOO Hot Melt Inside Medium Wall PE Heat Shrink Tube Made in ChinaUS$ 0.1 - 1.2MOQ: 1000 Meters
-
Black Medium Wall Shrink Heat Tube for WholesaleUS$ 0.2 - 1.5MOQ: 500 Meters

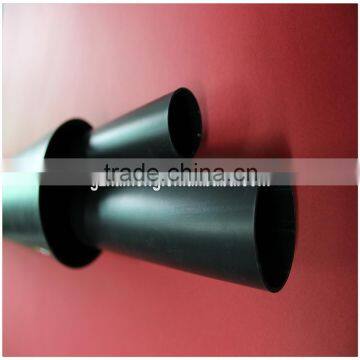

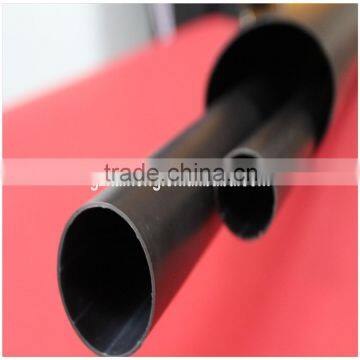

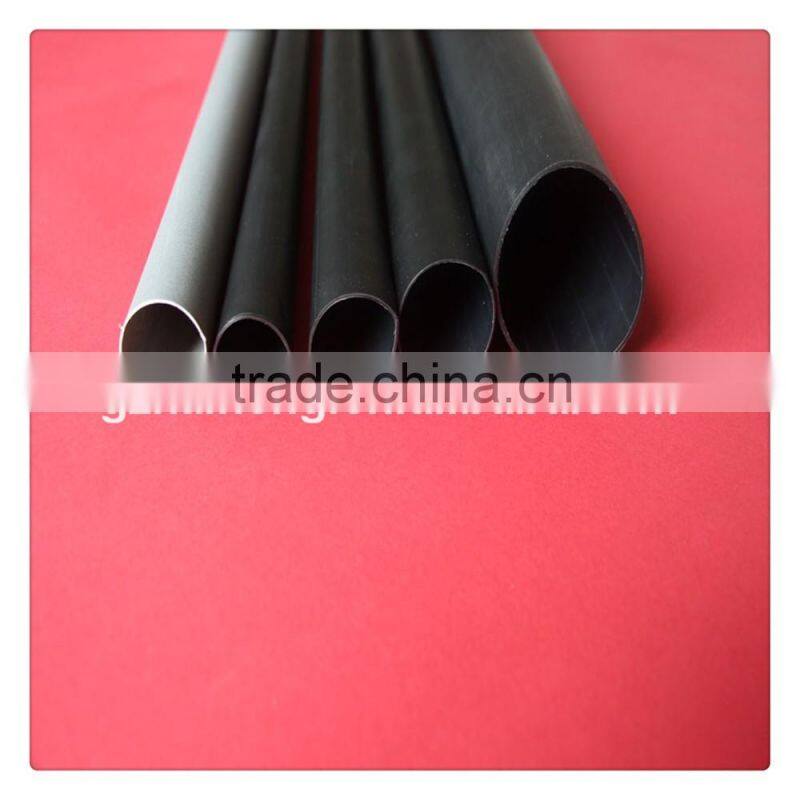

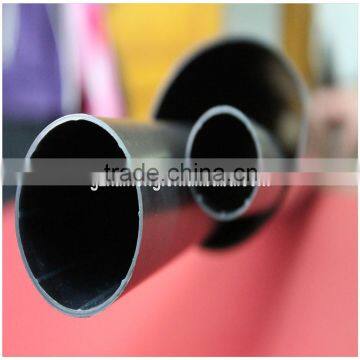

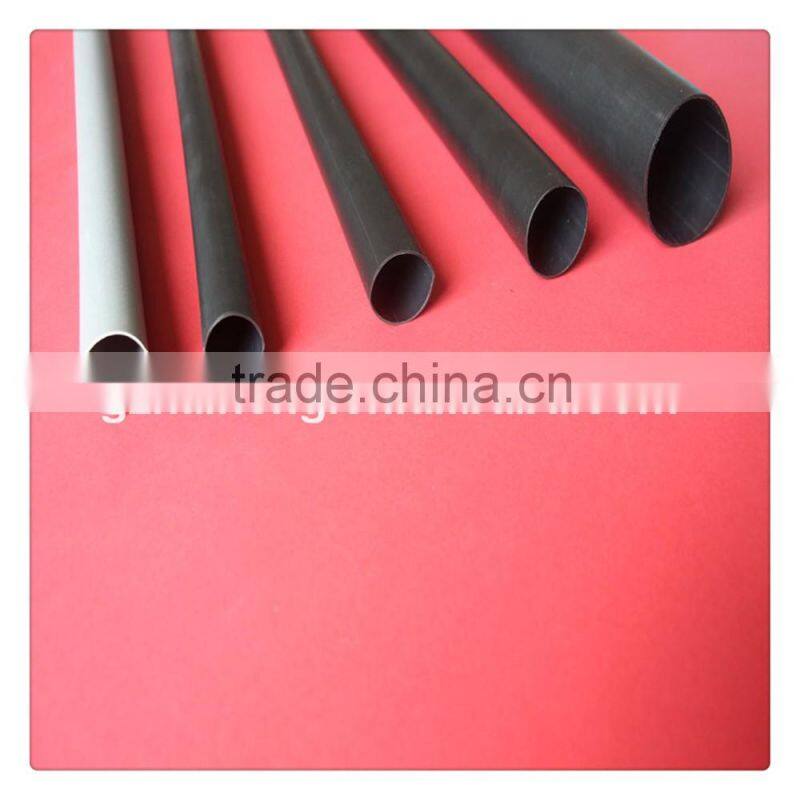

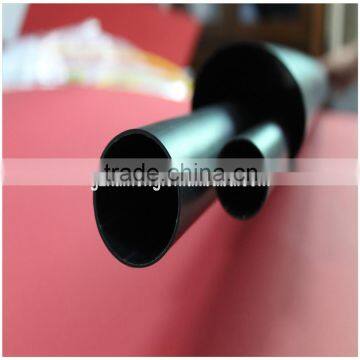

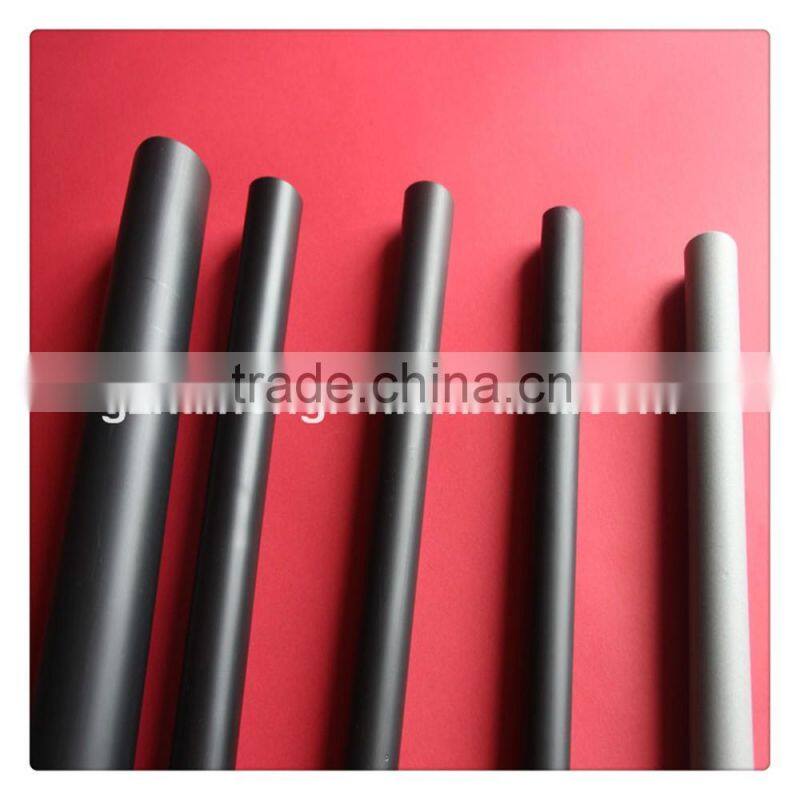

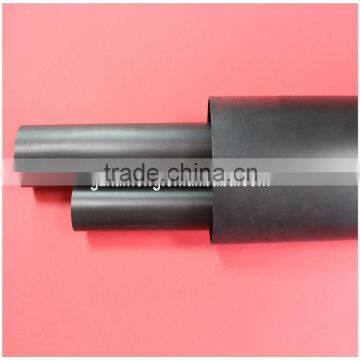

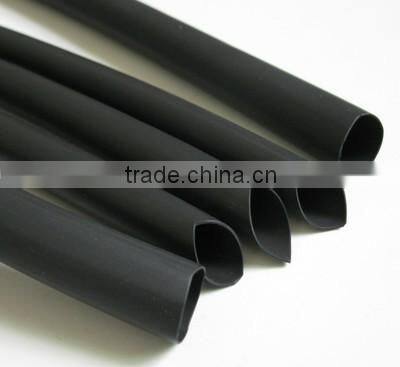

PE material medium wall heat shrink tube with hot melt adhesive
Applications for heat shrink tube
High shrink tube with hot melt adhesive which provide excellent properties of insulation and protection to cable joints and terminations, and high abrasion and corrosion resistance for applying in communication cable and pipe.
Features for heat shrink tube
1. Shrinkable Ratio: 3:1
2. Easily fit over irregular shape and large connectors
3. Resistant to UV and waterproof
4. Excellent electrical insulation
5. Operating temperature: -55℃ to 110℃
6. Minimum shrink temperature:80℃
7. Minimum fully recovery temperature:120℃
8. Standard color: Black
Technical Data
Property |
Test Method |
Typical Data |
Operation temperature |
IEC 216 |
-55℃to110℃ |
Tensile strength |
ASTM D 2671 |
≥14MPa |
Elongation break |
ASTM D 2671 |
≥400% |
Density |
ASTM D 792 |
1.05g/cm3 |
Longitudinal shrinkage |
UL 224 |
0 to 10% |
Dielectric strength |
IEC 243 |
≥20kv/mm |
Volume resistance |
IEC 93 |
>1014Ω.cm |
Eccentricity |
ASTM D 2671 |
<30% |
Copper stability |
ASTM D 2671 |
Pass |
Water absorption |
ISO 62 |
<0.15% |
Resistance to stress cracking (50℃) |
ASTM D 1693 |
No cracking |
Thermoplastic Adhesive |
||
Water absorption |
ISO 62 |
<0.2% |
Softening point |
ASTM D E28 |
85℃ |
Copper stability |
ASTM D 2671 |
Pass |
Peel strength(PE) |
DIN 30672 |
4N/cm |
Resistance to fungus and decay |
ISO 846 |
Pass |
|
|
|
|
|
|
Product Dimensions
|
Normal size (mm) |
As supplied(mm) |
After recovered (mm) |
|
ID(Min.) |
ID(Max.) |
WT Min |
|
8/2 |
8 |
2 |
1.7 |
12/3 |
12 |
3 |
1.8 |
16/5 |
16 |
5 |
2.0 |
19/5 |
19 |
5 |
2.2 |
22/6 |
22 |
6 |
2.2 |
28/6 |
28 |
6 |
2.5 |
33/8 |
33 |
8 |
2.5 |
40/12 |
40 |
12 |
2.5 |
44/14 |
44 |
14 |
2.5 |
55/16 |
55 |
16 |
2.7 |
65/19 |
65 |
19 |
2.8 |
75/22 |
75 |
22 |
3.0 |
85/25 |
85 |
25 |
3.0 |
95/25 |
95 |
25 |
3.0 |
115/34 |
115 |
34 |
3.3 |
140/42 |
140 |
42 |
3.5 |
160/50 |
160 |
50 |
3.5 |
180/58 |
180 |
58 |
3.5 |
205/65 |
205 |
65 |
3.5 |
235/65 |
235 |
65 |
3.7 |
265/75 |
265 |
75 |
4.0 |
300/85 |
300 |
85 |
4.0 |
350/100 |
350 |
100 |
4.3 |
380/150 |
380 |
150 |
4.3 |
410/150 |
410 |
150 |
4.3 |
Model KMDW for medium wall tube with adhesive
Model KMW for medium wall tube without adhesive
Standard Packing: 1.22M/Pcs, special size, cutting pieces are available on request

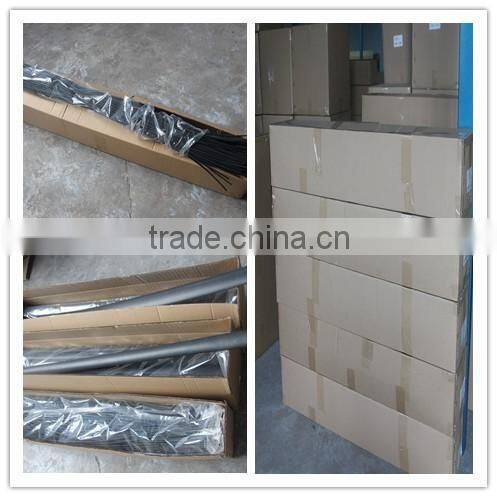

Standard Packing for heat shrink tube:1.22m/pcs,and packing in KOSOO standard carton.

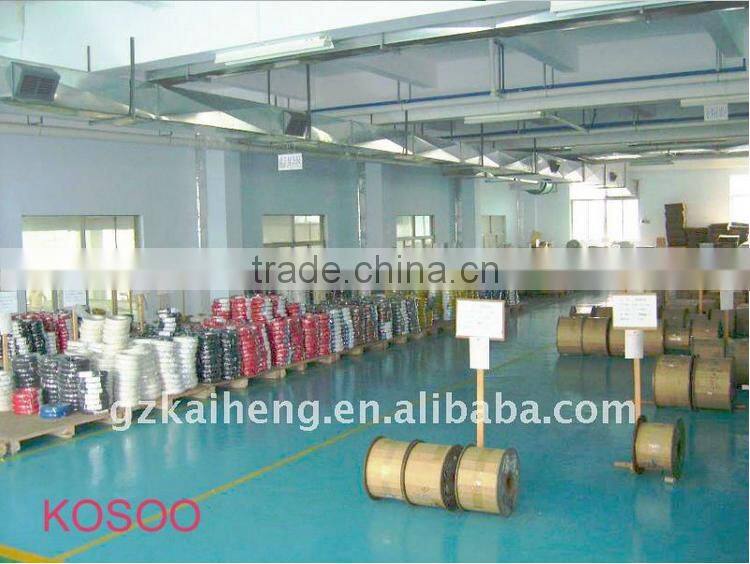

Guangzhou Kaiheng K&S Co.,Ltd is a major supplier of Heat shrinkable tubing offering good quality products at competitive price.We are specialized in this filed for over 15 years.We manufacture and distribute a broad range of heat shrinkable tube,PVC tube.Trademarked as KOSOO. Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
