KOSOO K-1 Low temperature shiny heat shrink tube
Flexible, shiny general-purpose polyolefin tubing
Application
KOSOO K-1 is an irradiated crosslinked commercial grade polyolefin heat shrinkable tubing with general
purpose applications such as wire-harness, insulation of wire bundles, insulation and strain relief of wire
terminations and connections, capsule and anti-corrosion protection, etc. It is rated for use up to 105C
and 600V.
Features/Benefits
·Shrink ratio: 2:1.
·Flexible, low shrink temperature.
·Excellent physical and electrical performance.
·Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.
Operating Temperature Range
a) Operating temperature range: -55 ~ 105°C
b) Minimum shrink temperature: 60°C
c) Minimum full recovery temperature: 100°C
Product sizes
mm/inch
Size |
Inside diameter |
Wall thickness |
Standard length (m/spool) |
|
As supplied(min.) |
After recovery(max.) |
After recovery |
||
3/64 |
1.2(0.046) |
0.6(0.023) |
0.40±0.08(0.016±0.003) |
200 |
1/16 |
1.6(0.063) |
0.8(0.031) |
0.43±0.08(0.017±0.003) |
200 |
3/32 |
2.4(0.093) |
1.2(0.046) |
0.51±0.08(0.020±0.003) |
200 |
1/8 |
3.2(0.125) |
1.6(0.062) |
0.51±0.08(0.020±0.003) |
200 |
3/16 |
4.8(0.187) |
2.4(0.093) |
0.51±0.08(0.020±0.003) |
100 |
1/4 |
6.4(0.250) |
3.2(0.125) |
0.64±0.08(0.025±0.003) |
100 |
3/8 |
9.5(0.375) |
4.8(0.187) |
0.64±0.08(0.025±0.003) |
100 |
1/2 |
12.7(0.500) |
6.4(0.250) |
0.64±0.08(0.025±0.003) |
100 |
3/4 |
19.1(0.750) |
9.5(0.375) |
0.76±0.08(0.030±0.003) |
50 |
1 |
25.4(1.000) |
12.7(0.500) |
0.89±0.12(0.035±0.005) |
50 |
1 1/4 |
31.8(1.250) |
15.9(0.625) |
1.02±0.15(0.040±0.006) |
50 |
1 1/2 |
38.1(1.500) |
19.1(0.750) |
1.02±0.15(0.040±0.006) |
50 |
2 |
50.8(2.000) |
25.4(1.000) |
1.14±0.16(0.045±0.007) |
50 |
Ordering Information
Color

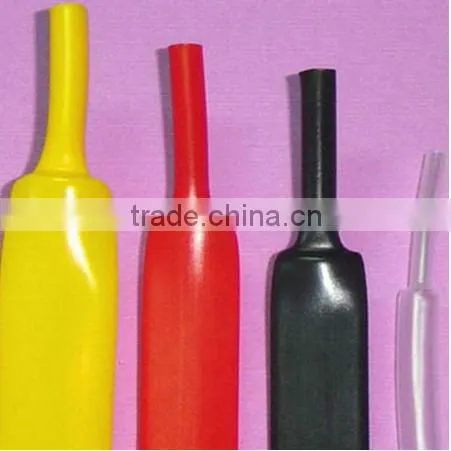

Standard: Shiny black(-BK), clear(-CL), white(-WH), red (-RD), blue(-BL) , yellow(-YL), green(-GR)
Nonstandard: Brown (- BR), orange (- OR), violet (- VT), gray (- GY)
Nonstandard size
Special sizes are available upon request.
Standard packaging
On spools. Cut pieces are available upon request.
Ordering description
Specify product type, size (mm or inch) and color.
