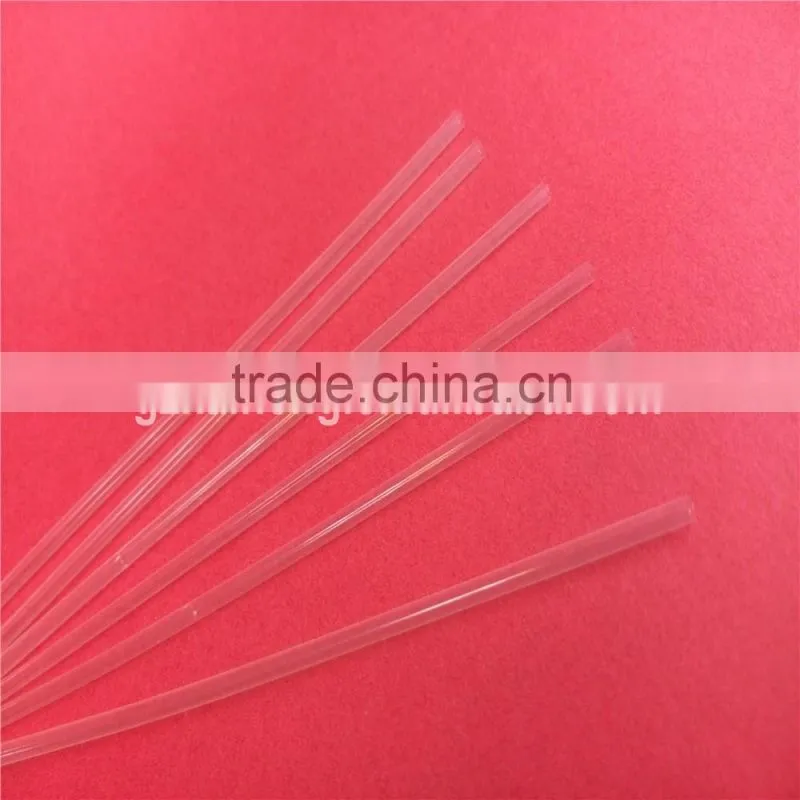

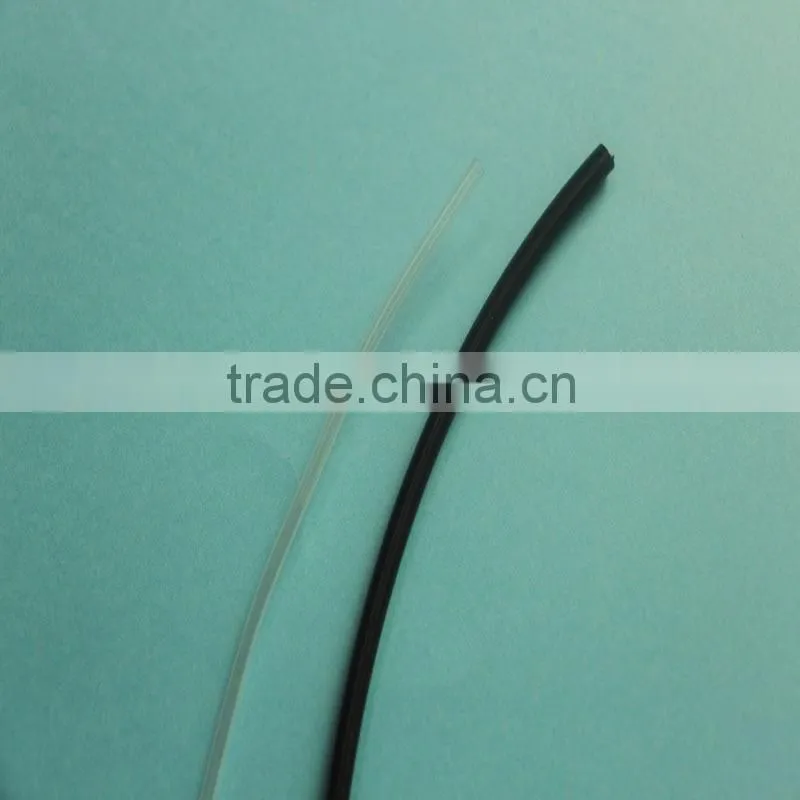

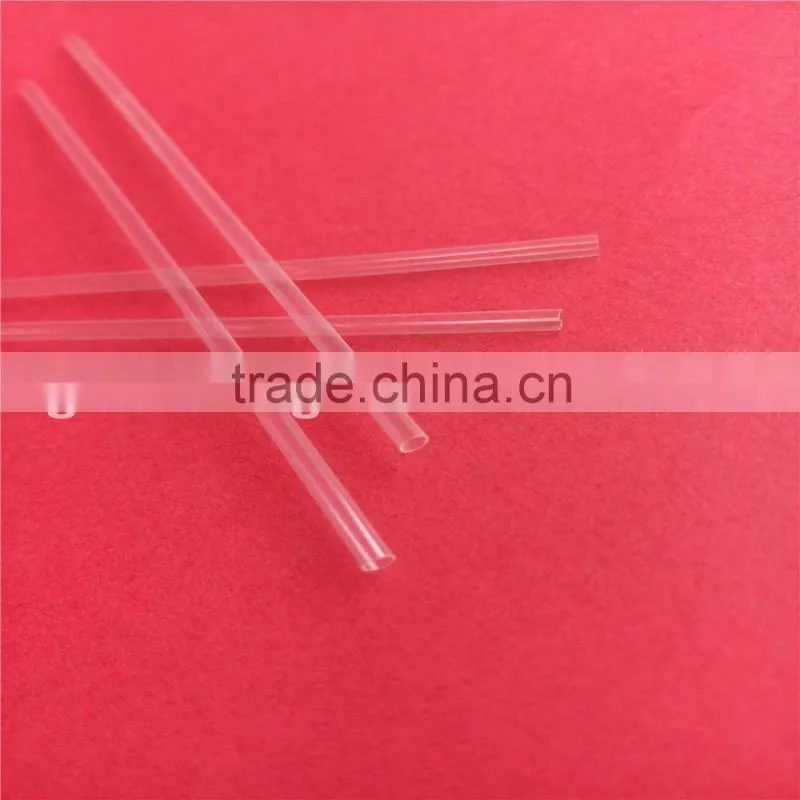

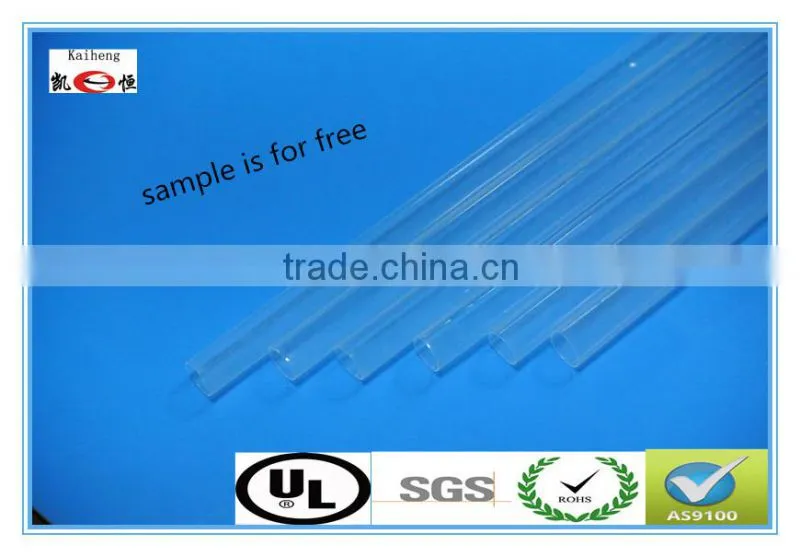

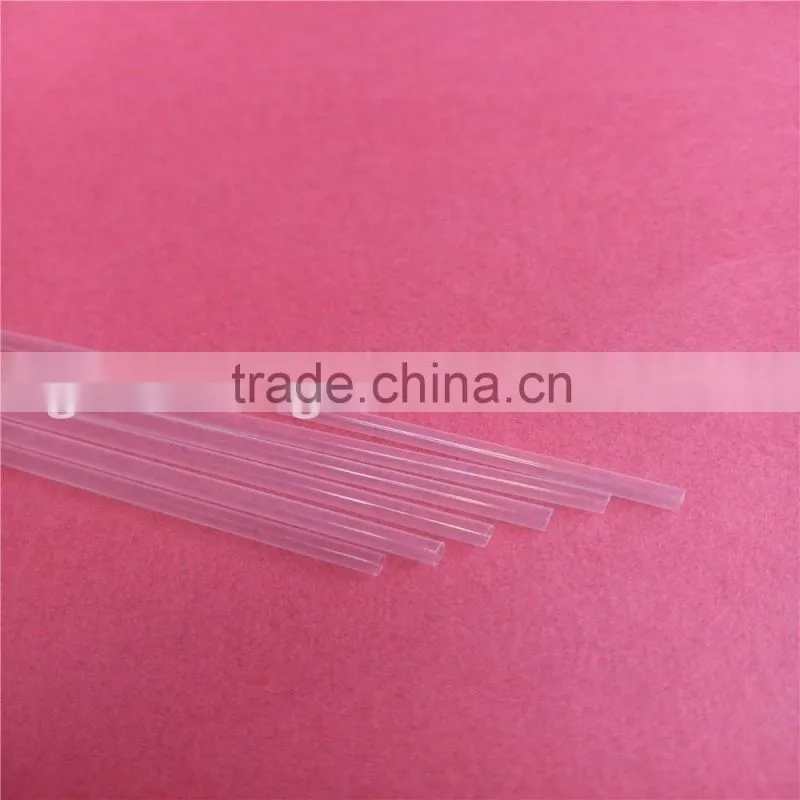

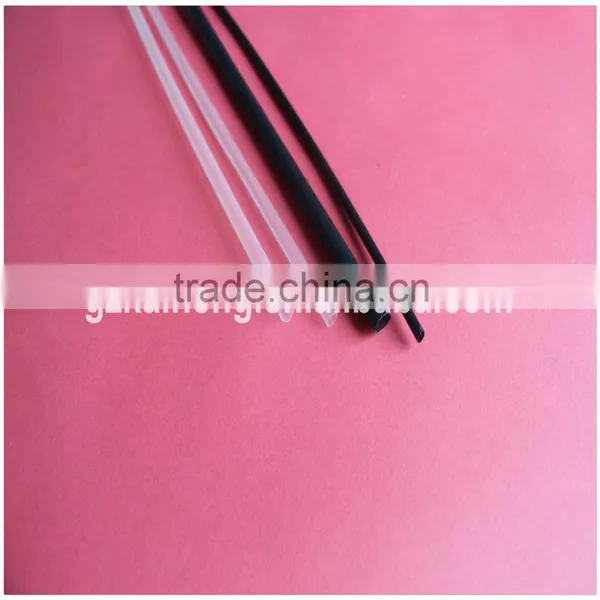

3/8" clear high temperature KYNAR PVDF heat shrinkable insulation tubing
KOSOO Kynar PVDF heat shrinkable tubing has outstanding abrasion resistance, cut-through resistance, chemical and solvent resistance and high-temperature performance. It is especially suitable for applications requiring high-temperature performance. It is also used for insulation and strain relief of soldered joints, identification and inspection of covered components.
- Shrink ratio: 2:1.
- Tough, semi-rigid, thin-wall insulation.
- High flame-resistance; high-temperature performance.
- Outstanding chemical and solvent resistance.
- Conform to European RoHS2002/95/EC environmental directive.
Operating Temperature Range
·Operating temperature range: -55~175
·Minimum shrink temperature: 155
·Minimum full recovery temperature: 175
Specifications/Standards
UL224 150 600V VW-1
AMS-DTL-23053/8
Specification
|
Property |
Requirement |
Test method |
Typical value |
Physical |
Tensile strength |
34.5MPa min. |
ASTM D 638 |
≥35MPa |
Elongation |
150% min. |
ASTM D 638 |
≥200% |
|
|
Heat shock 300, 4hrs |
No cracking, dripping or flowing |
ASTM D 2671 |
Pass |
|
|
Low temperature flexibility -55, 4hrs |
No cracking |
ASTM D 2671 |
Pass |
|
Aging 250,168hrs |
|
|
|
|
Elongation after aging |
50% |
ASTM D 638 |
≥50% |
|
Electrical |
Dielectric voltage withstand |
2500V,60sec, no breakdown |
ASTM D 2671 |
Pass |
Volume resistivity |
1013Ω·cm min. |
ASTM D 876 |
≥1013Ω·cm |
|
Chemical |
Corrosion |
No corrosion |
ASTM D 2671 |
Pass |
|
Flammability |
VW-1 |
UL224 |
Pass |
n Product mm/inch
Size |
Inside diameter |
Wall thickness |
Standard length |
|
As supplied (min.) |
After recovery (max.) |
After recovery |
||
3/64 |
1.20.046 |
0.60.023 |
0.25±0.050.010±0.002 |
1.2 |
1/16 |
1.60.063 |
0.80.031 |
0.25±0.050.010±0.002 |
1.2 |
3/32 |
2.40.093 |
1.20.046 |
0.25±0.050.010±0.002 |
1.2 |
1/8 |
3.20.125 |
1.60.063 |
0.25±0.050.010±0.002 |
1.2 |
3/16 |
4.80.187 |
2.40.093 |
0.25±0.050.010±0.002 |
1.2 |
1/4 |
6.40.250 |
3.20.125 |
0.30±0.080.012±0.003 |
1.2 |
3/8 |
9.50.375 |
4.80.187 |
0.30±0.080.012±0.003 |
1.2 |
1/2 |
12.70.500 |
6.40.250 |
0.30±0.080.012±0.003 |
1.2 |
3/4 |
19.10.750 |
9.50.375 |
0.43±0.080.017±0.003 |
1.2 |
1 |
25.41.000 |
12.70.500 |
0.48±0.080.019±0.003 |
1.2 |
1 1/2 |
38.11.500 |
19.10.750 |
0.51±0.080.020±0.003 |
1.2 |
2 |
50.82.000 |
25.41.000 |
0.58±0.080.023±0.003 |
1.2 |
Ordering information
Color
Standard: clear (-CL)
Nonstandard colors can be available upon request.
Nonstandard size
Nonstandard sizes are available upon request.
Standard packaging
1.2m /length
Ordering description
Specify product type, size (mm or inch) and color.

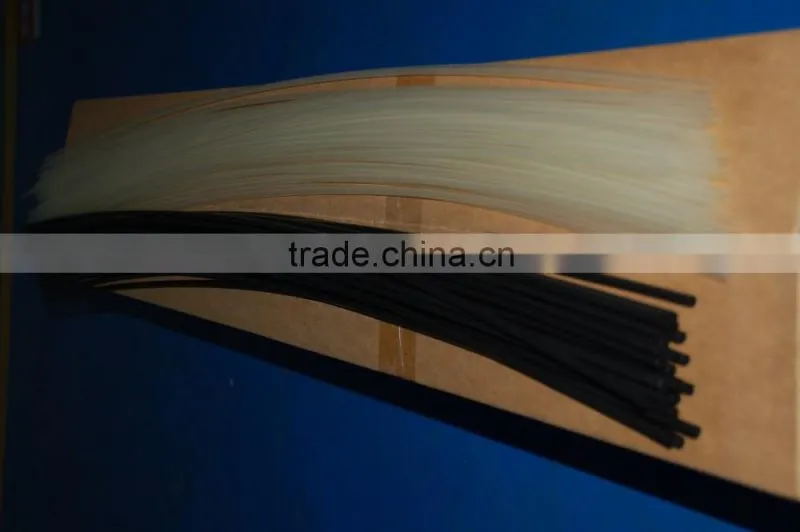

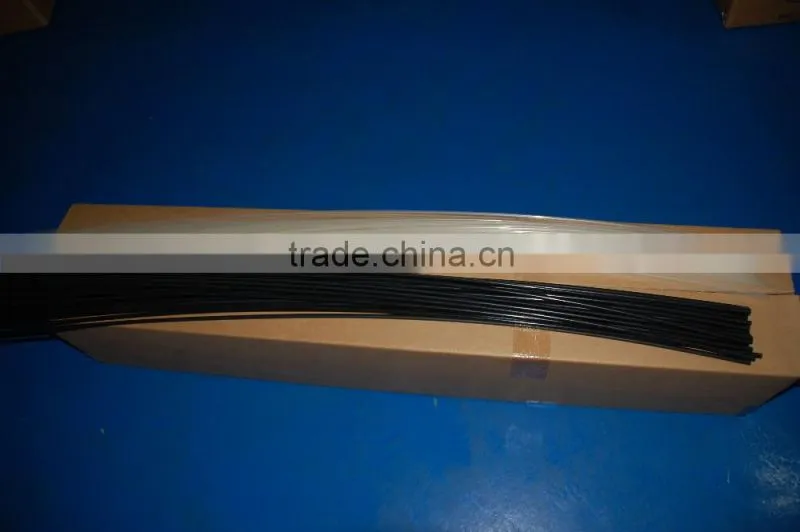

Packing for Kynar heat shrinkbale tubing:1.22meters/Pcs, carton out packing
Guangzhou Kaiheng K&S Co.,Ltd is a major supplier of Heat shrinkable tubing offering good quality products at competitive price.We are specialized in this filed for over 15 years.We manufacture and distribute a broad range of heat shrinkable tube,PVC tube.Trademarked as KOSOO. Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
