Help CenterChina Wholesale Webiste 6/2mm 4:1 Shrink Ratio Dual Wall Heat Shrink Tube
Related Products
-
China Wholesale Website Polyolefin Tubing Insulation Sleeve From UsaUS$ 0.01 - 0.5MOQ: 1000 Meters -
Wholesale Insulation Material Heat Shrink Tube 20mm From in RussianUS$ 0.01 - 0.5MOQ: 1000 Meters
-
600V Insulation Sleeving Type Heat Shrink Tube 50mm From RussianUS$ 0.01 - 0.5MOQ: 1000 Meters
-
600V Electrical Heat Shrinkable Type Insulation Sleeve 30mm 2:1 Shrink RatioUS$ 0.01 - 0.5MOQ: 1000 Meters
-
China Manufacturer Electrical Cable Protective Heat Shrink Sleeve for Wholesale From IndiaUS$ 0.05 - 1MOQ: 1000 Pieces

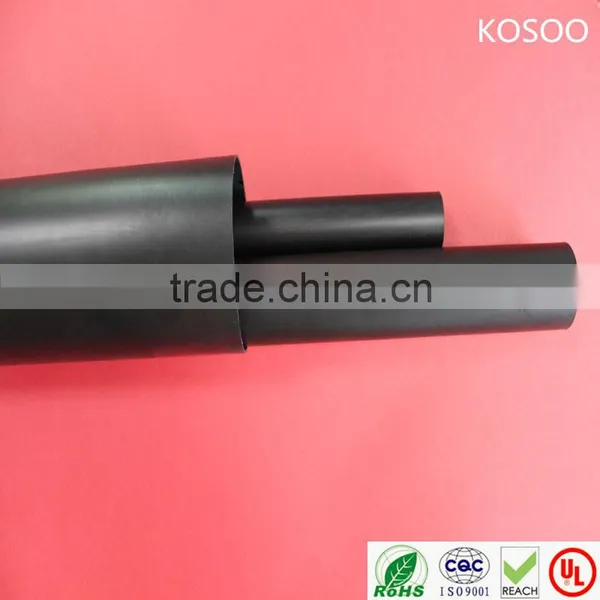

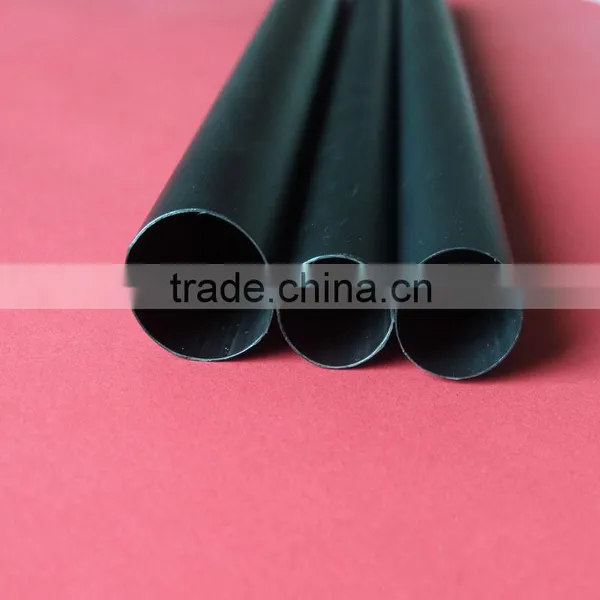

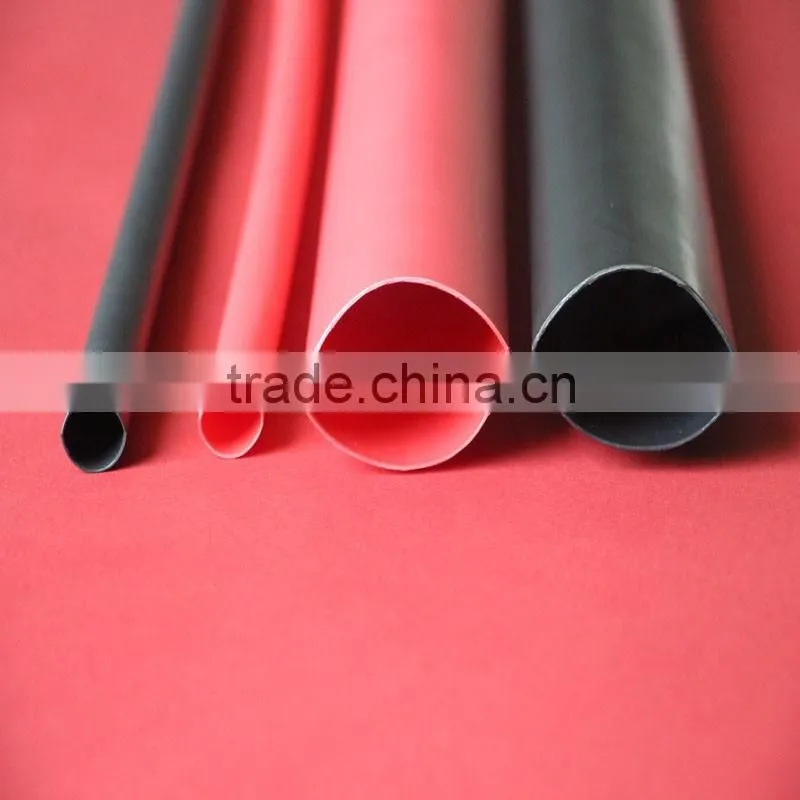

(3:1,4:1)Dual wall adhesive heat shrink tubing
Application
1.This is a flexible, flame-retardant, dual wall, high-shrink-ratio, irradiated heat-shrinkable tubing manufactured by co-extrusion of polyolefin and hot-melt adhesive.
2. Inner is hot-melt adhesive with good stickiness and outer is flexible, irradiated cross-linked polyolefin.
3. It is widely used to environmentally seal and protect interconnections, joints and components from fluids, moisture and corrosion.
4.High shrinking ratio allows for connector-to-cable sealing and makes it possible to repair most damaged cable jackets without removing connectors.
Features
1) Shrink ratio: 3:1, 4:1
2) Environmentally seals and protects components, joints and interconnections
from fluids, moisture and corrosion
3) A Good mechanical, electrical and chemical properties
4) Adhesive has good stickiness and bonds to a wide variety of plastics, rubbers
and metals
5) Conforms to European RoHS environmental directive
Operating temperature range:
a) Operating temperature range: -55 ~ 110°C
b) Minimum shrink temperature: 80°C
c) Minimum full recovery temperature: 110°C
8) Standards and approvals:
a) UL224 125°C 600V
b) AMS-DTL-23053/4 class3
Product Size
|
Size (inch/mm) |
As suppied(mm) |
After recovery(mm) |
Standard length (m/length, m/spool) |
|||
|
Inside diameter (min.) |
Wall thickness* (nominal) |
Inside diameter (max.) |
Wall thickness* (nominal) |
Adhesive wall thickness (nominal) |
||
3 to1 | ||||||
1/8(3/1) |
3.0 |
0.35 |
1.0 |
1.00±0.28 |
0.50 |
1.22/200 |
3/16(4.8/1.6) |
4.8 |
0.35 |
1.6 |
1.00±0.28 |
0.50 |
1.22/100 |
1/4(6/2) |
6.0 |
0.4 |
2.0 |
1.00±0.28 |
0.50 |
1.22/100 |
3/8(9/3) |
9.0 |
0.5 |
3.0 |
1.40±0.28 |
0.60 |
1.22 |
1/2(12/4) |
12.0 |
0.6 |
4.0 |
1.78±0.38 |
0.76 |
1.22 |
3/4(18/6) |
18.0 |
0.7 |
6.0 |
2.25±0.55 |
0.76 |
1.22 |
1(24/8) |
24.0 |
0.8 |
8.0 |
2.54±0.55 |
1.02 |
1.22 |
1 1/2(39/13) |
39.0 |
0.8 |
13.0 |
2.54±0.55 |
1.02 |
1.22 |
4 to 1 | ||||||
4/1 |
4.0 |
0.4 |
1.0 |
1.00±0.28 |
0.50 |
1.22 |
8/2 |
8.0 |
0.45 |
2.0 |
1.00±0.28 |
0.50 |
1.22 |
12/3 |
12.0 |
0.5 |
3.0 |
1.40±0.28 |
0.60 |
1.22 |
16/4 |
16.0 |
0.6 |
4.0 |
1.78±0.38 |
0.76 |
1.22 |
24/6 |
24.0 |
0.7 |
6.0 |
2.25±0.55 |
0.76 |
1.22 |
32/8 |
32.0 |
0.8 |
8.0 |
2.54±0.55 |
1.02 |
1.22 |
52/13 |
52.0 |
0.8 |
13.0 |
2.54±0.55 |
1.02 |
1.22 |
*Special sizes and colors are can be available upon request.
Ordering description Specify product type, size and color.
