More details for 220kV Substation Steel Structure
Part one (Characters and advantages) :
1. Transmission steel tower has single circuit line and double circuit line.
2. It is mainly composed of equilateral angle steel, and material used by Q235(A3F) or Q345(16Mn).
3. Steel tower is mainly composed of three parts: head tower, body tower and leg tower.
4. Steel Tower always used by transmission power line and EHV.
Part Two(Specifications):
Material |
Normally Q235B/A36,Yeild Strength≥235MPa Q345B/A572,Yeild Strength≥345MPa |
Power Capacity |
10kV ,13.8kV,69kV,110kV,132kV,220kV or other |
Tolerance of the dimension |
According to client’s requirement |
Surface treatment |
Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement |
Standard |
ISO9001:2008 |
Production Process |
Raw material test-Angle Marking -Hole Drilling-Angle Cutting-Angle Shovelling- Angle Fring –Angle Welding-Sample Assemble-Surface Clean-Galvanization -Recalibration-Packages |
Packages |
packing by bundles(set-wise or member-wise)with weight of 2~3 tons or according to client’s requirement |

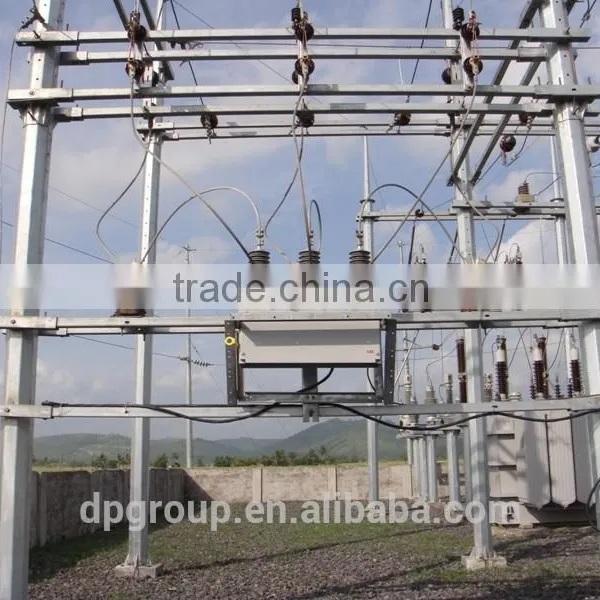

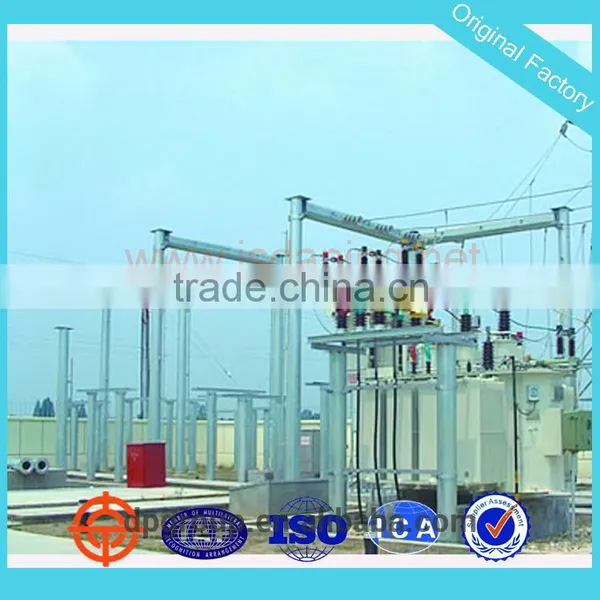

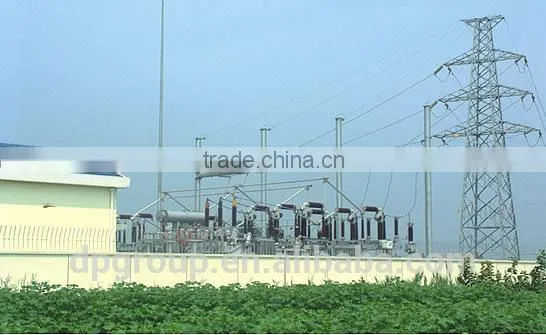

Part Three (Product photos):
Part Four (Product Manufacturing process):
Part Five (Installation and assembling):
Part Seven ( Norway, Philippines and Ethiopia Projects ):
Part Eight(Factory and manufacturing machines):
1. Factory and office
2. All corresponding machines
Part Nine (Packing and delivery):
Part Ten (Business Card):
Part Eleven (FAQ):
1. Customer : What is your payment methods ?
We: Usually we accept T/T and L/C.We also can accept other method,waiting your advice.
2. Customer :Is your company a factory or trading company ?
We: We are not only a factory ,we are a group corporation.We totally have three factories and we are waiting your inspection.
3. Customer : What is warranty period of your product ?
We: Our basic time is 30 years.If product is customized ,warranty time will be longer.
4. Customer : What oversea projects do you have ?
We: We have Norway, Philippines, Ethiopia etc
5. Customer : What is the advantages of your company?
We: We are a group company,so we have enough experienced workers and engineers.
