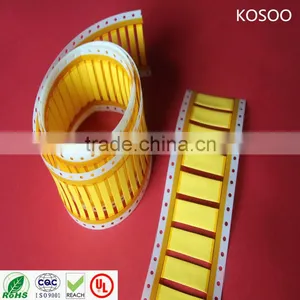

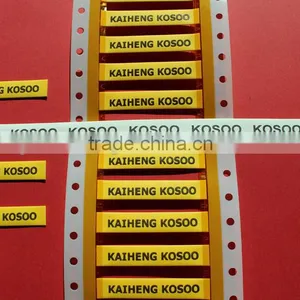

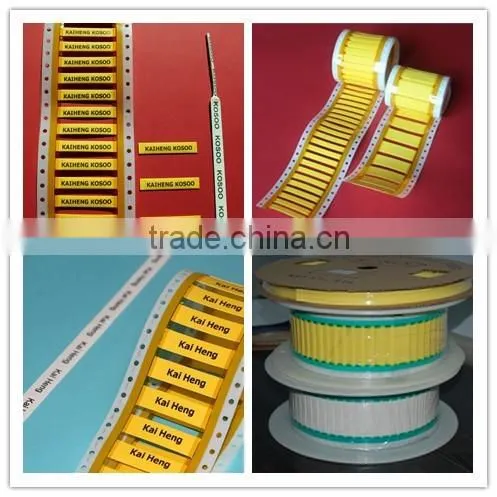

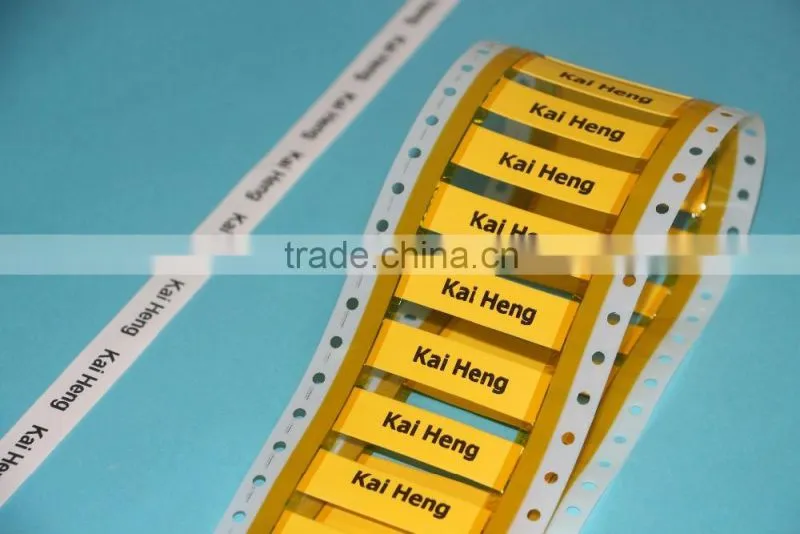

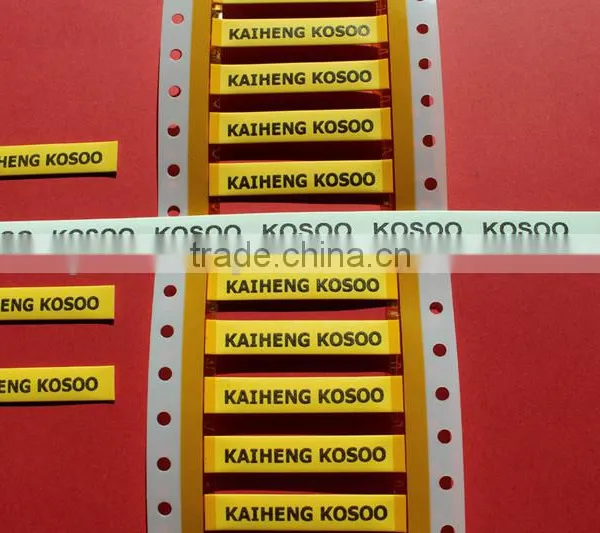

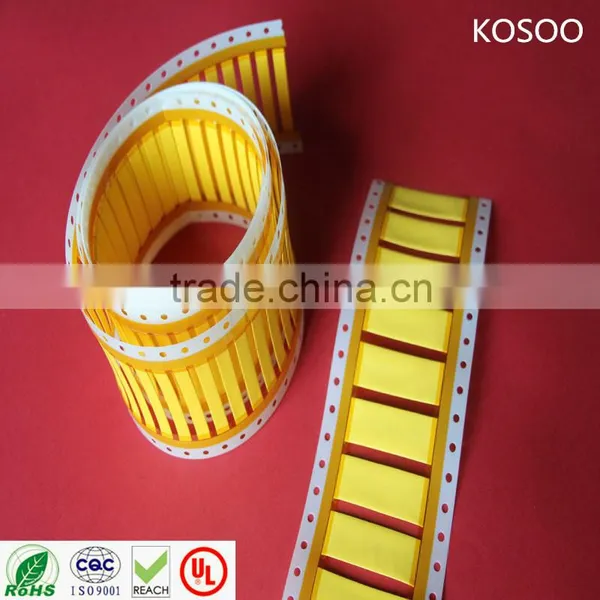

3: 1 heat shrink cable marker sleeve KOSOO CTMS
Heat-shrinkable identification marker sleeves
Application
KOSOO TMS heat-shrinkable identification marker sleeves are designed to meet the requirements of high- performance identification of wire and cable, tools, hoses and equipment. Made from reliable flame-retardant polyolefin with outstanding properties, sleeves can also be used as electrical insulation. Marks are permanent after printing.
Features/Benefits
Sleeves meet the requirements of AMS-DTL-23053/5 (materials and performance).Flexible, highly flame-retardant.
Sleeves meet the print performance requirements of MIL-M-81531.
Markers can also provide insulation and strain relief.
Marks are permanent after printing; mark performance improves after shrinking.
Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.
Operating Temperature Range
Operating temperature range: -55°C~135°C
Minimum shrink temperature: 70°C
Minimum full recovery temperature: 110°C
Specifications/Standards
UL224 E214175 125°C VW-1
CSA C22.2 210475 125°C VW-1
AMS-DTL-23053/5 class 1 (materials and performance)
MIL-M-81531, MIL-STD-202
Product sizes
mm/inch
|
Size (inch) |
Inside diameter |
Recommended use range |
|
As supplied (min.) |
After recovery (max.) |
||
3/32 |
2.4 (0.093) |
0.8 (0.031) |
0.9-2.0 (0.035-0.079) |
1/8 |
3.2 (0.125) |
1.0 (0.042) |
1.1-2.7 (0.044-0.105) |
3/16 |
4.8 (0.187) |
1.6 (0.062) |
1.8-4.1 (0.069-0.160) |
1/4 |
6.4 (0.250) |
2.1 (0.083) |
2.3-5.5 (0.091-0.215) |
3/8 |
9.5 (0.375) |
3.2 (0.125) |
3.5-8.0 (0.137-0.320) |
1/2 |
12.7 (0.500) |
4.2 (0.166) |
4.7-10.8 (0.183-0.425) |
3/4 |
19.1 (0.750) |
6.35 (0.250) |
7.0-16.3 (0.275-0.640) |
1 |
25.4 (1.000) |
8.5 (0.333) |
9.3-21.6 (0.366-0.850) |
1 1/2 |
38.1 (1.500) |
19.1 (0.750) |
21.0-33.0 (0.825-1.300) |
2 |
50.8 (2.000) |
25.4 (1.000) |
27.0-48.0 (1.063-1.890) |
Ordering information
Standard color White(-WH), yellow(-YL)
Nonstandard color Special colors can be available upon request.
Nonstandard size
Special sizes are available upon request.
Standard packaging 2 inch pieces
Ordering description Specify product type, size and color.
Packing
Company Information:
Guangzhou Kaiheng Enterprise Group Co.,Ltd was founded in 1998,and Guangzhou Kaiheng K&S Co.,Ltd is an affiliated company of the group,we are a very professional manfuacturer of PVC tube, heat shrinkable tube including medium wall&heavy wall heat shrinkable tube,Dual &single heat shrinkable tuble,Busbar,Telflon heat shrinkable tube,and wire accessoies for 17 years.And we have over 10 years of exporting experience to overseas makerts.
