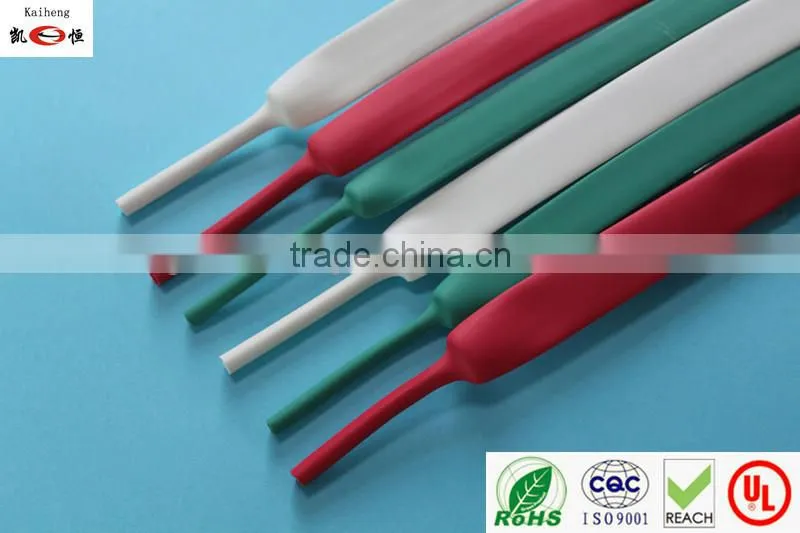

Colorful Halogen Free Insulating sleeve Heat Shrink Tubing
KOSOO K-2 HF is halogen free,low smoking,flame-retardant irradiated crosslinking polyolefin heat shrinkable tubing suitable for environmentally friendly application.It contains no added halogens,and exhibits excellent fire safety characteristics combined with low evolution of acid gases,while retaining good mechanical and fluid resistance properities.
Why choose KOSOO Heat Shrink Tubing ?
- Very flexible ,highly flame-retardant
- Low shrink temperature
- Good thermal stability
- Excellent physical,chemical and electrical properties.
- Wide range of sizes and colors
- Confirm to RoHS (2002/95/EC)environmental directive.
- More than 15 years experiences
- Alibaba 9 years gloden supplier
- We are manufacturer we have most competitive price
- Little amount free samples could be accepted

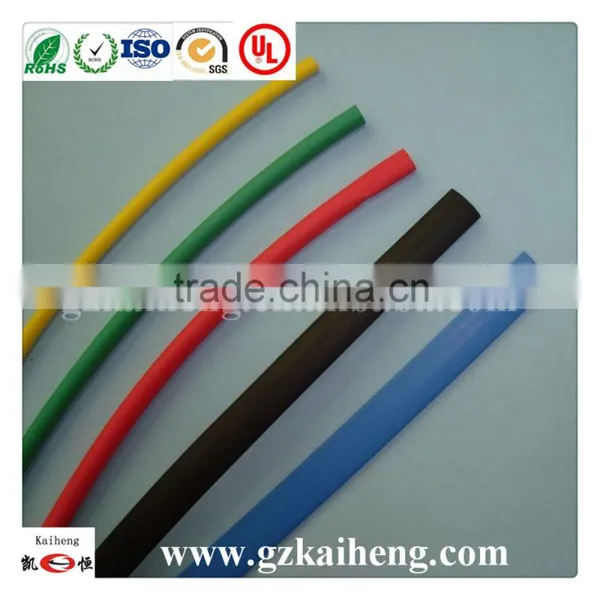

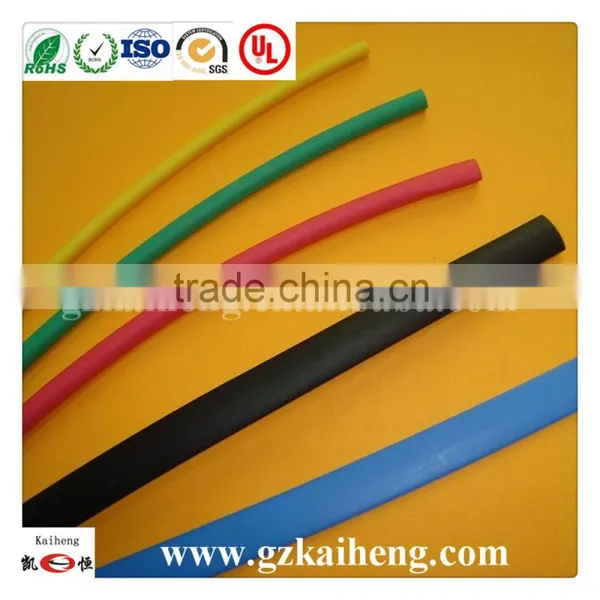

Detailed Images

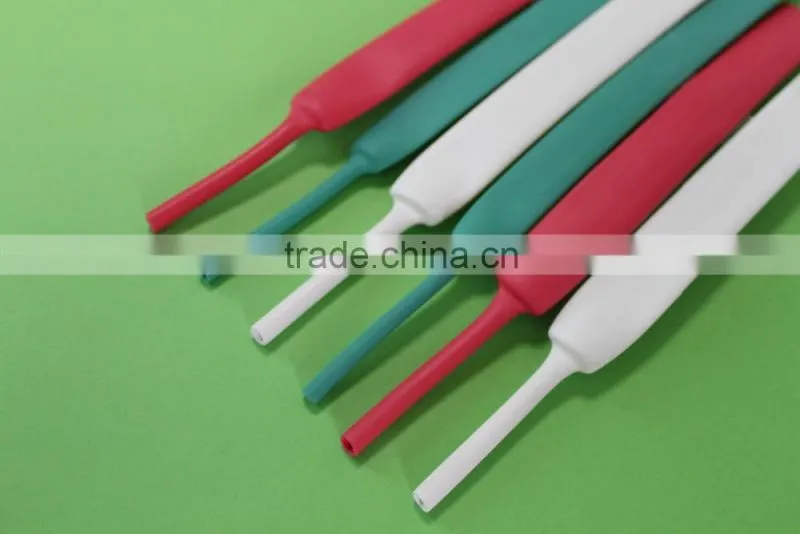

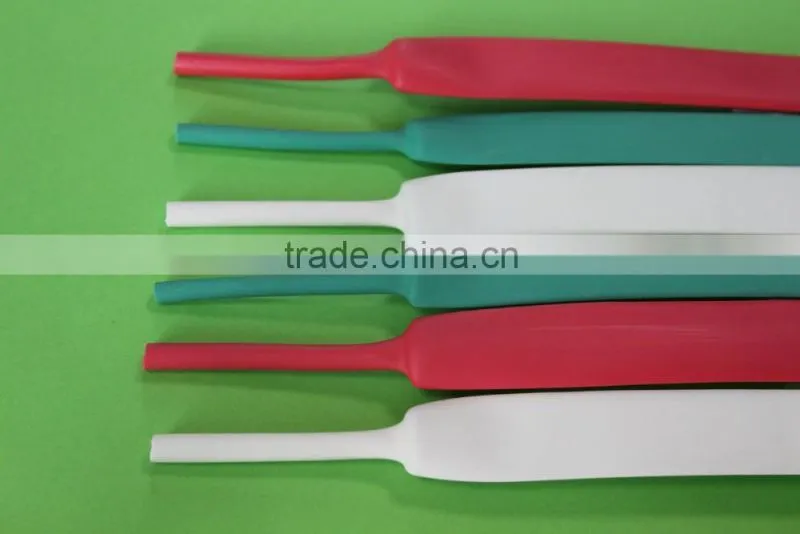

Round & Flat Heat Shrink Tubing
Specification values
|
Property |
Requirement |
Test method |
Typical data |
Physical: |
Concentricity |
70% min. |
ASTM D 2671 |
≥70% |
|
Tensile strength |
10.4MPa min. |
ASTM D 638 |
≥12MPa |
|
Elongation |
200% min. |
ASTM D 638 |
≥300% |
|
Heat shock 250℃, 4hrs |
No cracking, dripping or flowing |
ASTM D 2671 |
Pass |
|
Low temperature flexibility -55℃, 4hrs |
No cracking |
ASTM D 2671 |
Pass |
Aging 158℃,168hrs |
|
|
|
|
Tensile strength after aging |
70% of original min. |
ASTM D 638 |
≥80% |
|
Elongation after aging |
100% min. |
ASTM D 638 |
≥200% |
|
Electrical: |
Dielectric voltage withstand |
2500V, 60sec no breakdown |
UL224 |
Pass |
Dielectric strength |
19.7KV/mm min. |
ASTM D 2671 |
25KV/mm |
|
Volume resistivity |
1014Ω·cm min. |
ASTM D 876 |
≥1014Ω·cm |
|
Chemical: |
Corrosion |
No corrosion |
ASTM D 2671 |
Pass |
|
Flammability |
VW-1 |
UL224 |
Pass |
Products Size
Size(mm) |
As supplied(mm) |
After recovery (mm) |
Standard length (m/spool) |
||
|
Inside diameter |
Wall thickness |
Inside diameter(max.) |
Wall thickness(min.) |
|
φ0.8 |
1.0±0.2 |
0.15±0.05 |
0.50 |
0.25 |
200 |
φ1.0 |
1.5±0.3 |
0.20±0.05 |
0.60 |
0.33 |
200 |
φ1.5 |
2.0±0.3 |
0.20±0.05 |
0.75 |
0.36 |
200 |
φ2.0 |
2.5±0.3 |
0.20±0.05 |
1.00 |
0.44 |
200 |
φ2.5 |
3.0±0.3 |
0.25±0.05 |
1.25 |
0.44 |
200 |
φ3.0 |
3.5±0.3 |
0.25±0.05 |
1.50 |
0.44 |
200 |
φ3.5 |
4.0±0.3 |
0.25±0.05 |
1.75 |
0.44 |
200 |
φ4.0 |
4.5±0.3 |
0.25±0.05 |
2.00 |
0.44 |
200 |
φ4.5 |
5.0±0.3 |
0.25±0.05 |
2.25 |
0.44 |
200 |
φ5.0 |
5.5±0.3 |
0.25±0.05 |
2.50 |
0.56 |
100 |
φ6.0 |
6.5±0.3 |
0.28±0.05 |
3.00 |
0.56 |
100 |
φ7.0 |
7.6±0.3 |
0.30±0.06 |
3.50 |
0.56 |
100 |
φ8.0 |
8.6±0.3 |
0.30±0.06 |
4.00 |
0.56 |
100 |
φ9.0 |
9.6±0.3 |
0.30±0.06 |
4.50 |
0.56 |
100 |
φ10.0 |
10.7±0.4 |
0.30±0.06 |
5.00 |
0.56 |
100 |
φ11.0 |
11.7±0.4 |
0.30±0.06 |
5.50 |
0.56 |
100 |
φ12.0 |
12.7±0.4 |
0.30±0.06 |
6.00 |
0.56 |
100 |
φ13.0 |
13.7±0.4 |
0.35±0.07 |
6.50 |
0.69 |
100 |
φ14.0 |
14.7±0.4 |
0.35±0.07 |
7.00 |
0.69 |
100 |
φ15.0 |
15.7±0.5 |
0.35±0.07 |
7.50 |
0.69 |
100 |
φ16.0 |
16.7±0.5 |
0.35±0.07 |
8.00 |
0.69 |
100 |
φ18.0 |
19.0±0.5 |
0.40±0.10 |
9.00 |
0.77 |
100 |
φ20.0 |
21.0±0.5 |
0.40±0.10 |
10.00 |
0.77 |
50 |
φ22.0 |
23.0±0.5 |
0.40±0.10 |
11.00 |
0.77 |
50 |
φ25.0 |
26.0±1.0 |
0.45±0.10 |
12.50 |
0.87 |
50 |
φ28.0 |
29.0±1.0 |
0.45±0.10 |
14.00 |
0.87 |
50 |
φ30.0 |
31.5±1.0 |
0.45±0.10 |
15.00 |
0.87 |
50 |
φ35.0 |
36.5±1.0 |
0.50±0.10 |
17.50 |
0.97 |
50 |
φ40.0 |
41.5±1.0 |
0.50±0.10 |
20.00 |
0.97 |
50 |
φ50.0 |
51.5±1.0 |
0.55±0.10 |
25.00 |
0.97 |
5 |

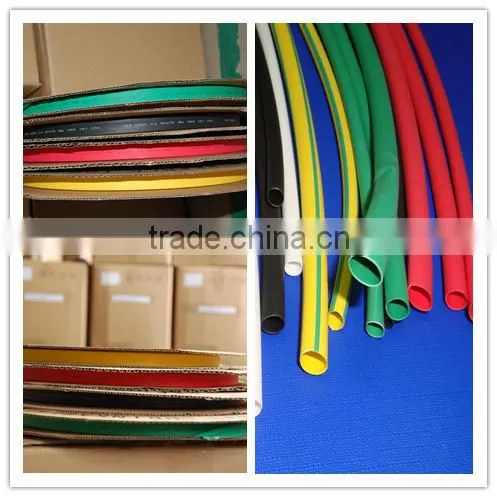

Standard packaging for Heat Shrink Tubing :On spolls.Cut pieces are available upon request.
Certification
Guangzhou Kaiheng K&S Co.,Ltd is a major supplier of Heat shrinkable tubing offering good quality products at competitive price.We are specialized in this filed for over 15 years.We manufacture and distribute a broad range of heat shrinkable tube,PVC tube.Trademarked as KOSOO. Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
FAQ
1.What is the delivery time?
For samples we usually have 2-7 days delivery,for volume production usually 7-25 days.
2.Which certifications do you have?
Most products have UL,CSA and TUV approvals.
3.How about the quality of your products?
Try a small order, and you will know it.
