Diesel resistant flame retardant heat shrink sleeve for cables and wire harness
- 1000000 Meter / Meters per Month
- Shenzhen/Guangzhou
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Guangdong, China | Brand Name: | KOSOO | Model Number: | DR |
Type: | Insulation Sleeving | Material: | Other, polyolefin | Application: | Low Voltage |
Rated Voltage: | 600V | Tensile Strength: | 10.4MPa |
Product Description
KOSOO DR
Diesel-resistant, flexible, flame-retardant elastomer tubing
Application
With resistance to aviation and diesel fuels, hydraulic fluids, and lubricating oils, KOOSOO DR is ideal for applications require resistance to fuels, fluids and solvents. It is particularly suitable for protecting and bundling of high-performance cables and wiring harnesses.
Features/Benefits
·Shrink ratio: 2:1
·Outstanding fluid and heat resistance.
·Abrasion resistance and excellent mechanical properties.
·Flexible, flame-retardant.
·Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.
Operating Temperature Range
·Operating temperature range: -75℃~150℃
·Minimum full recovery temperature: 175℃
Specifications/Standards
AMS-DTL-23053/16
Specification values
| Property | Requirement | Test method | Typical value |
Physical: | Tensile strength | 11.7MPa min. | ASTM D 638 | ≥14MPa |
Elongation | 250% min. | ASTM D 638 | ≥350% | |
Heat shock 250℃, 4hrs | No cracking, dripping or flowing | ASTM D 2671 | Pass | |
Low temperature flexibility -75℃, 4hrs | No cracking | ASTM D 2671 | Pass | |
Aging 150℃, 168hrs | ||||
Tensile strength after aging | 10.3MPa min. | ASTM D 638 | ≥12MPa | |
Elongation after aging | 200% min. | ASTM D 638 | ≥300% | |
Electrical: | Dielectric voltage withstand | 2500V,60sec,no breakdown | ASTM D 2671 | Pass |
Dielectric strength | 11.9KV/mm min. | ASTM D 2671 | ≥11.9KV/mm | |
Volume resistivity | 109Ω·cm min. | ASTM D 876 | ≥109Ω·.cm | |
Chemical: | Corrosion | No corrosion | ASTM D 2671 | Pass |
| Flammability | Self extinguishing within 1 minute | ASTM D 2671 | Pass |
Fluid resistance: | 23℃,24hrs (aviation and diesel fuels, hydraulic fluids, lubricating oils, etc.) | |||
| Tensile strength | 10.4MPa min. | ASTM D 2671 | ≥12MPa |
| Elongation | 200% min. | ASTM D 2671 | ≥300% |
| Dielectric strength | 7.9KV/mm min. | ASTM D 2671 | ≥9.0KV/mm |
Product sizes
Size(inch) | Inside diameter(mm) | Wall thickness | Standard length (m/spool) | |
As supplied(min.) | After recovery(max.) | After recovery | ||
1/8 | 3.2(0.125) | 1.6(0.062) | 0.76±0.15(0.030±0.006) | 100 |
3/16 | 4.8(0.187) | 2.4(0.093) | 0.84±0.15(0.033±0.006) | 100 |
1/4 | 6.4(0.250) | 3.2(0.125) | 0.89±0.15(0.035±0.006) | 100 |
3/8 | 9.5(0.375) | 4.8(0.187) | 1.02±0.20(0.040±0.008) | 50 |
1/2 | 12.7(0.500) | 6.4(0.250) | 1.22±0.20(0.048±0.008) | 30 |
3/4 | 19.1(0.750) | 9.5(0.375) | 1.45±0.28(0.057±0.011) | 30 |
1 | 25.4(1.000) | 12.7(0.500) | 1.78±0.28(0.070±0.011) | 30 |
1 1/2 | 38.1(1.500) | 19.0(0.750) | 2.41±0.41(0.095±0.016) | 15 |
2 | 50.8(2.000) | 25.4(1.000) | 2.79±0.41(0.110±0.016) | 22 |
Company Details:
Guangzhou Kaiheng Enterprise Group Co.,Ltd was founded in 1998,and Guangzhou Kaiheng K&S Co.,Ltd is an affiliated company of the group,we are a very professional manfuacturer of PVC tube, heat shrinkable tube including medium wall&heavy wall heat shrinkable tube,Dual &single heat shrinkable tuble,Busbar,
Telflon heat shrinkable tube,and wire accessoies for 17 years.And we have over 10 years of exporting experience to overseas makerts.

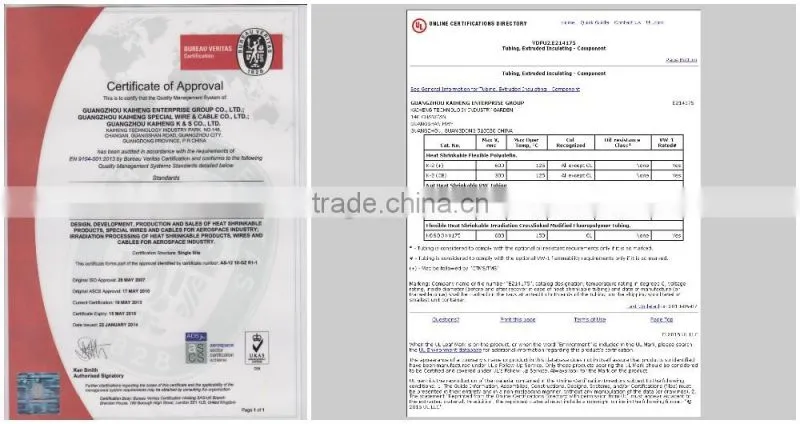

Certificates
Related Products:Heat shrink tube,heat shink cable marker sleeve,PVC tube and cable accessories.
