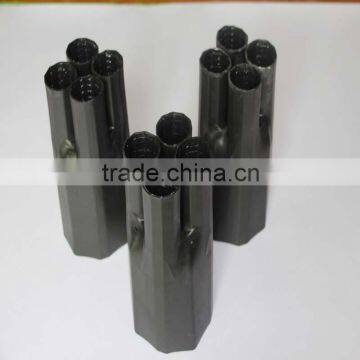

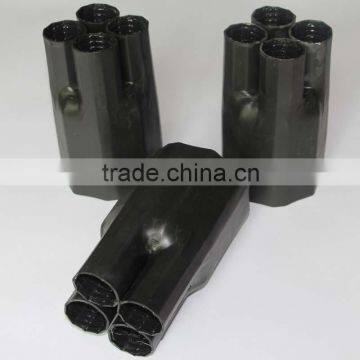

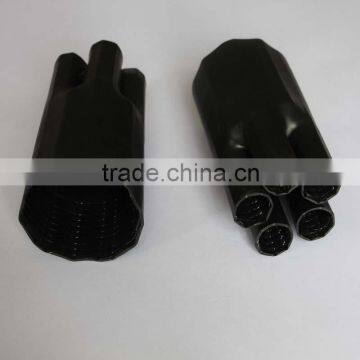

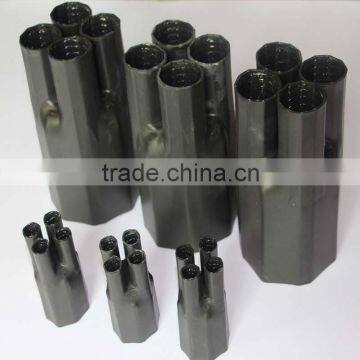

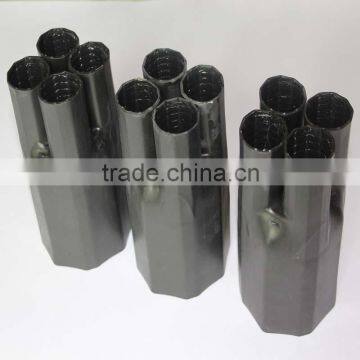

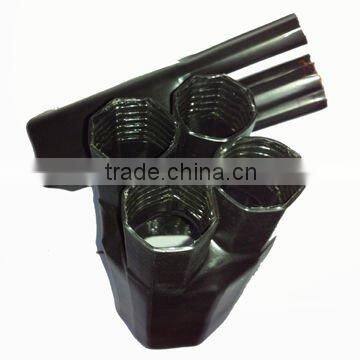

4 Way black polyolefin materail heat shrinkable cable breakout boot for wires
KOSOO KHLB conductive cable breakout is made from radiation cross-linked polyolefin,and suitable for applications up to 1 KV.The properties of electrical insulation,UV resistant and water proof make KHLB-2 widely used inelectric power industury to provide insulation and seal over the crutch of multi-core cables.
Description of conductive cable breakout
Minimum shrink temperature: 110℃
Minimum fully recovery temperature: 130℃
Standard color: Black
Technical Data of conductive cable breakout
Property |
Test Method |
Typical Data |
Operation temperature |
IEC216 |
-55℃ TO +110℃ |
Tensile strength |
ASTMD2671 |
13Mpa(min.) |
Tensile strength after thermal aging(120℃/168hrs.) |
ASTMD2671 |
10Mpa(min.) |
Elongation at break |
ASTMD2671 |
300% (min.) |
Elongation at break after thermal aging (120℃/168hrs.) |
ASTMD2671 |
250% (min.) |
Dielectric strength |
IEC243 |
15kv/mm(min.) |
Volume resistance |
IEC93 |
1013Ω. cm |
Water absorption |
ISO62 |
1% (max.) |

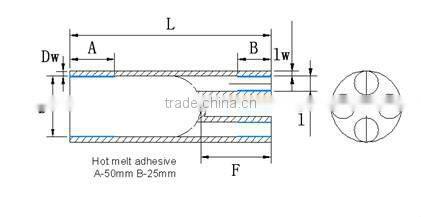

Products Dimensions of conductive cable breakout
Order Ref. No. |
D(mm) |
I(mm) |
Recovered length±10% |
Recovered wall±10% |
||||
|
a(min.) |
b(max.) |
a(min.) |
B(max.) |
L(mm) |
F(mm) |
Dw(mm) |
Iw(mm) |
KSBO-40/15 |
40 |
15 |
14 |
3.5 |
105 |
26 |
2.2 |
2.0 |
KSBO-55/21 |
55 |
21 |
20 |
5.0 |
150 |
40 |
3.1 |
2.6 |
KSBO-65/26 |
65 |
26 |
26 |
7.0 |
175 |
45 |
3.3 |
2.9 |
KSBO-75/26 |
75 |
26 |
28 |
7.0 |
175 |
45 |
3.3 |
2.9 |
KSBO-82/37 |
82 |
37 |
30 |
9.0 |
190 |
60 |
4.0 |
3.0 |
KSBO-90/37 |
90 |
37 |
32 |
9.0 |
190 |
60 |
4.0 |
3.0 |
KSBO-100/47 |
100 |
47 |
38 |
12.0 |
198 |
58 |
4.0 |
3.0 |
KSBO-125/52 |
125 |
52 |
52 |
15.0 |
240 |
75 |
4.0 |
4.0 |
KSBO-160/70 |
160 |
70 |
64 |
19.0 |
260 |
75 |
4.0 |
4.0 |
certifications of conductive cable breakout

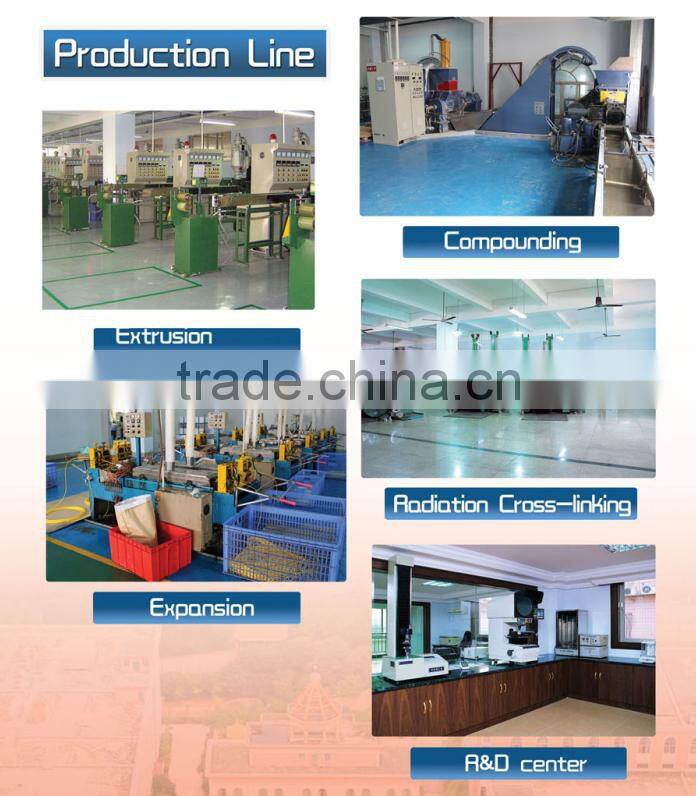

Guangzhou Kaiheng K&S Co.,Ltd is a major supplier of Heat shrinkable tubing offering good quality products at competitive price.We are specialized in this filed for over 15 years.We manufacture and distribute a broad range of heat shrinkable tube,PVC tube.Trademarked as KOSOO. Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
