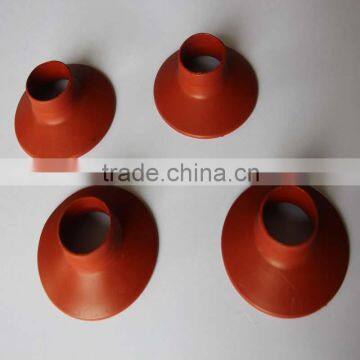

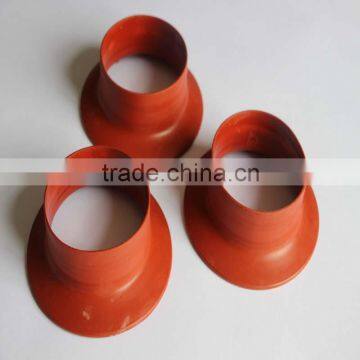

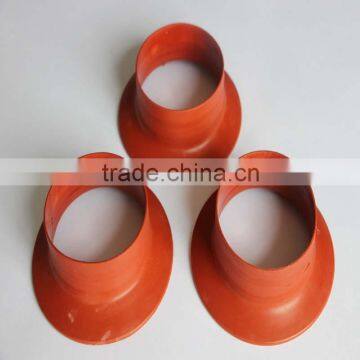

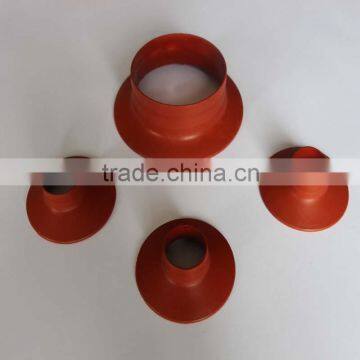

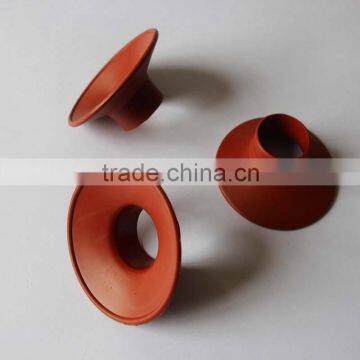

Cable wire accessory single core anti-tracking heat shrink rain shed
KOSOO KHAS Anti-Tracking Rain Shed is made from high creep resistance, anti-tracking polyolefin compounds and coate with anti-track,weather resistant mastic.
The high creep resistance and anti-tracking properties of the products provide maximum operation reliability. Used to provide insulation protection for cable outdoor termination.
Minimum Fully Shrink Temperature: 110℃

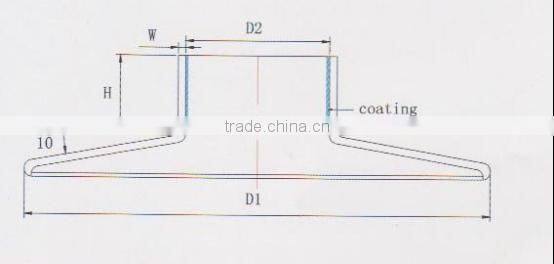

Product Dimensions for Anti-Tracking Rain Shed
Order Ref. Number |
As supplied(mm) |
After recovered(mm) |
D1(Nom.) |
H(Min.) |
W(±10%) |
|
D2(Min.) |
D2(Max.) |
|
|
|
KHAS110-35/12 |
35 |
12 |
95 |
18 |
3 |
KHAS120-48/20 |
48 |
20 |
120 |
21 |
3 |
KHAS130-60/20 |
60 |
20 |
120 |
21 |
3 |
KHAS140-60/30 |
60 |
30 |
140 |
25 |
3 |
KHAS150-75/30 |
75 |
30 |
140 |
25 |
3 |
KHAS160-100/35 |
100 |
35 |
140 |
35 |
3 |
KHAS170-120/45 |
120 |
45 |
200 |
35 |
3 |
Technical Data of Anti-Tracking Rain Shed
Property |
Test Method |
Typical Data |
Tensile strength |
ASTM D 2671 |
≥13Mpa |
Elongation at break |
ASTM D 2671 |
≥400% |
Tensile strength after aging(120℃/168hrs.) |
ASTM D 2671 |
10.4Mpa |
Elongation at break after aging(120℃/168hrs.) |
ASTM D 2671 |
350% |
Dielectric strength (3.75KV/1hr.) |
ASTM D 2671 |
15Kv/mm |
Tracking resistance |
ASTM D 2303 |
Pass |
Electric constant |
IEC 250 |
3.0 |
Volume resistance |
ASTM D 2303 |
1014Ω.cm |
Flammability(Oxygen index) |
IEC 93 |
25 |
Copper corrosion(120℃/168hrs.) |
ASTM D 2671 |
No corrosion |
Cold bend(-40℃/4hrs.) |
ASTM D 2671 |
No cracking |
Certifications of Anti-Tracking Rain Shed
Guangzhou Kaiheng K&S Co.,Ltd is a major supplier of Heat shrinkable tubing offering good quality products at competitive price.We are specialized in this filed for over 15 years.We manufacture and distribute a broad range of heat shrinkable tube,PVC tube.Trademarked as KOSOO. Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
