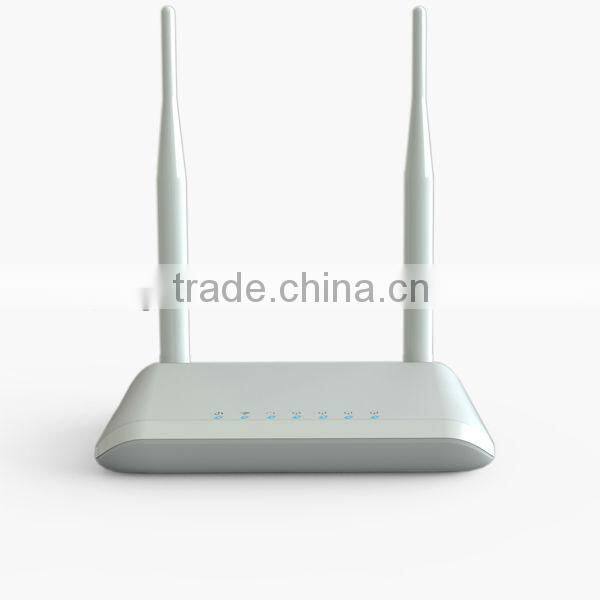

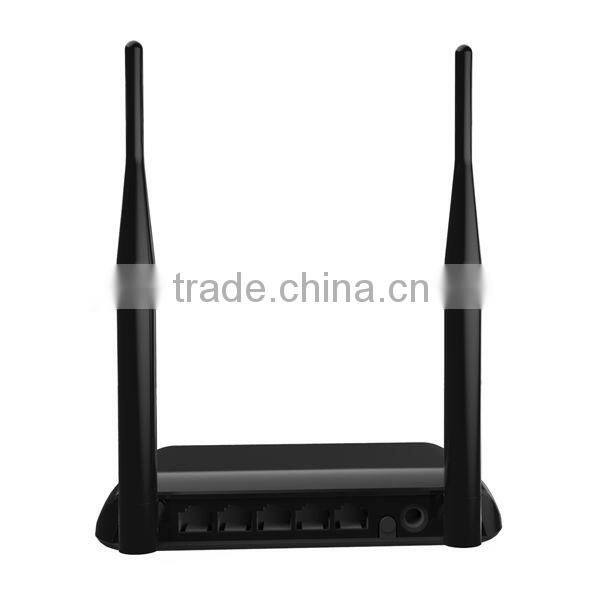

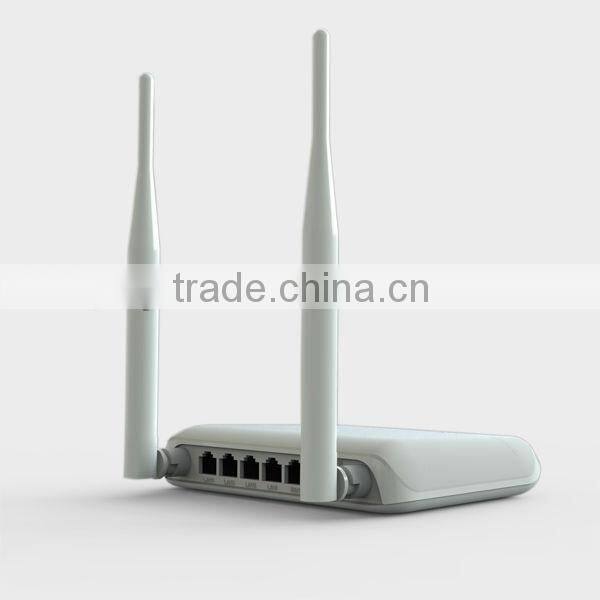

High Power Series!!! Long Range 300M Wireless WIF Router

Name: High Power Series!!! Long Range 300M Wireless WIF Router
Brand: JCG/W-NET
SKU: 106690303
Availability: InStock

US$ 10 - 25 MOQ: 2000 Pieces

Key Specifications

Products Status:

Stock

Type:

Wireless

Application:

Soho

Shenzhen Yichen Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Wireless

Application Soho

Function Firewall, QoS, VPN

LAN Ports 4

WAN Ports 1

Certification FCC, CE

Brand Name JCG/W-NET

Model Number U700

Place of Origin Guangdong, China

Specifications

1.Integrates router, Wireless access point, Four-ports switch and firewall in one

Features

·IEEE 802.11n compliance. Backwards compatible with 802.11b/g

·Integrates router, Wireless access point, Four-ports switch and firewall in one

·2.4GHz, wireless transmit rates up to 300Mbps (2T2R)

·4x10/100Mbps LAN Port, 1x10/100Mbps WAN Port

·2x3dBi Fixed Antenna

·WDS Wireless Bridge

·Built-in firewall, Filtering on IP address, MAC address, Domain name, Applications, etc

·Supports 64/128-bits WEP, WPA/WPA2 Encryption

Specification

Standard	IEEE 802.11n,IEEE 802.11g,IEEE 802.11b IEEE 802.3,IEEE 802.3u
Interface	LAN 4 10/100M Auto MDI/MDIX RJ45 port WAN 1 10/100M Auto MDI/MDIX RJ45 port
Frequency Range	2.4GHz-2.4835GHz
Radio Data Rate	300M
Channel	1~11 (USA, Canada) ; 1~13 (Europe) ; 1~14 (Japan)
Spread Spectrum	DSSS
Modulation	BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Transmission Distance	Indoor up to 100m , outdoor up to 300m (it is limited in an environment)
Receive Sensitivity@PE	11n : -70dBm@10% PER 11g : -70dBm@10% PER 11b: -85dBm@8% PER
Transmit Power	17dBm
Antenna plus	2x3dBi Fixed Antenna
LED Indicator	Status
Data Security	64/128-bits WEP; WPA/WPA2
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90%RH (non-condensing)
Power	5V/ 1A
Dimensions	142mmx91mmx28mm
Safety & Emission	FCC, CE
