Specifications
AC120 Dual Band Wireless USB Adapter1.Dual Band:2.4G~300 Mbps,5G~867Mbps
2.Supports Infrastructure and Ad-Hoc
3.USB Adapter
JWL-AC120
JWL-AC120 Wireless 802.11AC Dual Band USB Adapter is an ideal powerful device for connecting desktop computer into wifi network. It features a super thin size and is very convenient to use(plug and play)! Works over 2.4G and 5G and delivers up to 300 Mbps +867Mbps with reduced interferenc.
Pictures

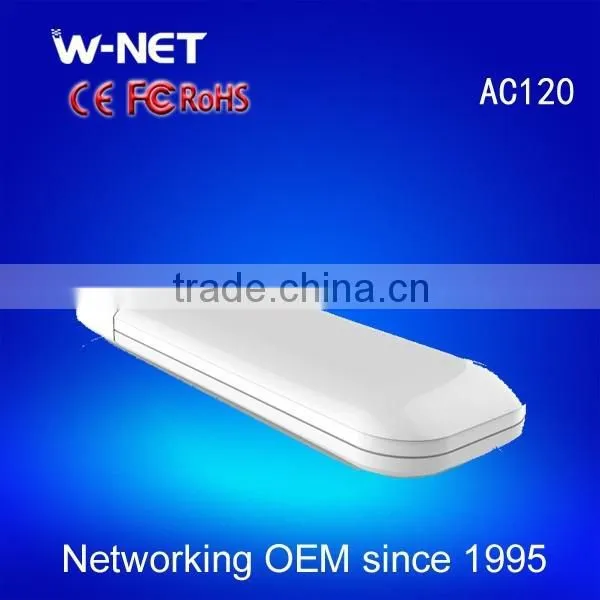

802.11AC 2.4G/5G Dual Band Wireless USB Wifi Adapter
Features
1.IEEE802.11ac/a/b/g/n compliance
2.Provides USB 3.0 interface
3.Dual Band(2.4G: 300 Mbps; 5G: 867Mbps)
4.Supports two working modes (Infrastructure and Ad-Hoc)
5.Supports 64/128-bits WEP,WPA/WPA2 Encrytion
6.Supports windows XP/Vista/7/8
Specification
Standard |
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.11a,IEEE 802.11ac |
Wireless Modes |
Ad-Hoc / Infrastructure mode |
Interface |
USB 3.0 |
Frequency Range |
2.4GHz/5GHz |
Wireless Speed |
2.4G: 300Mbps |
Modulation |
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
Transmission Distance |
Indoor up to 100m , outdoor up to 300m (it is limited in an environment) |
Receive Sensitivity@PE |
11ac : -68dBm@10% PER 11a : -68dBm@10% PER 11n : -70dBm@10% PER 11g : -72dBm@10% PER 11b: -85dBm@8% PER |
Transmit Power |
17dBm |
Data Security |
64/128-bits WEP;WPA/WPA2 |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90%RH (non-condensing) |
Dimensions (L*W*H)mm |
83mmx28mmx10mm |
Safety & Emission |
3C, FCC, CE |
Global exhibition
Our workshop
Certifications
Quality and warranty
All our products are checked quality passed before delivery. Besides we provide TWO YEAR WARANTY for defective items if any.
