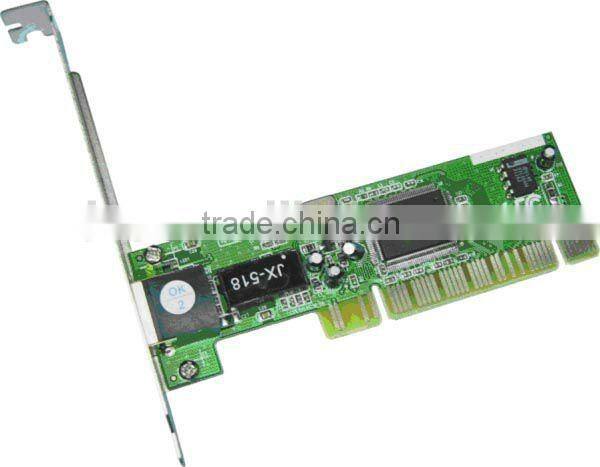

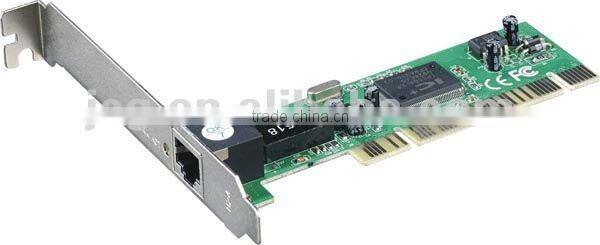

10/100Mbps PCI LAN card
JEN-5568
JEN-5568 10/100Mbps PCI LAN card is a component designed for desktop computer with FCC,CE certificate. OEM with competitive price offered.
Product description
Pictures
Specification
Characters
1.Compatible with IEEE 802.3, IEEE 802.3u Ethernet Standard
2.10/100Mbps PCI Adapter
3.32-bit PCI-Bus Revision 2.1and full-duplex design
4.Supports IEEE 802.3x flow control for Full Duplex mode
5.Supports Full Duplex and Half Duplex transfer modes
6.Provides diagnostic software
7.One LED indicator for monitoring link/activity
Spec
Standard |
IEEE 802.3, IEEE 802.3u, 802.3x |
Interface |
32-bit PCI 1 10/100Mbps RJ45 Port |
Transmission Rate |
10/100Mbps for Half-Duplex mode 20/200Mbps for Full-Duplex mode |
Flow Control |
IEEE 802.3x Flow Control (Full-Duplex) |
Network Media |
10Base-T : Cat.3 or 3e UTP(maximum 100m) 100Base-TX : Cat.5 UTP(maximum 100m) |
LED Indicator |
10/100M Link/Act |
Environment |
Operating Temperature: 0°C~40°C (32F~104F) Operating Humidity: 10%~90%RH (non-condensing) |
Dimensions |
133mmx121mmx22mm |
Operating System |
Windows XP / Vista / 7 |
Safety & Emission |
FCC, CE |

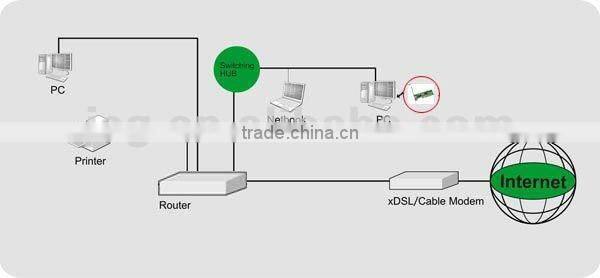

Network configuration
Workshop
PCB test
Quality and warranty
All our products are checked quality passed before delivery. Besides we provide TWO YEAR WARANTY for defective items if any.
